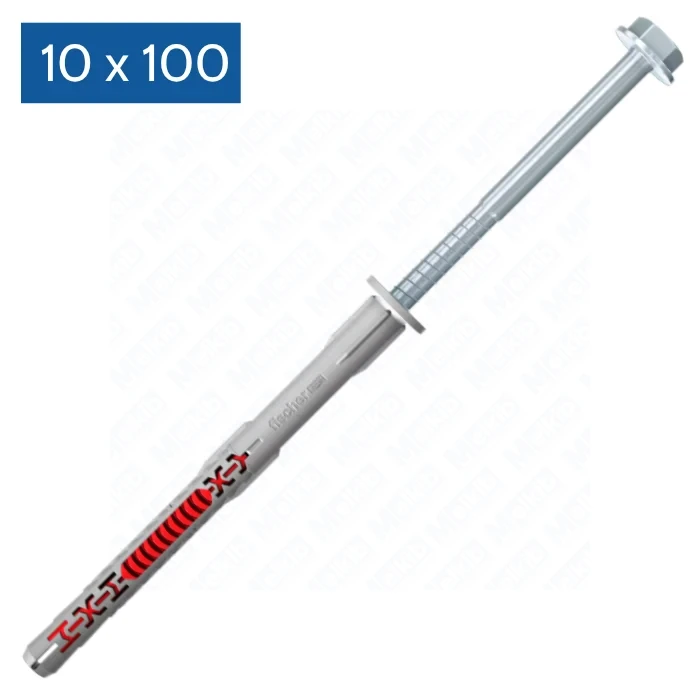

fischer DuoXpand 10×100 FUS frame anchor with hex-head screw, electro-galvanized steel, for concrete and masonry, 50 pcs

kolek-ramowy-duoxpand-10x100-fus-z-wkretem-hex

Availability: Available 1-3 pcs

Delivery: The price does not include any possible payment costs check the delivery methods

Price: €62.77 62.77

Net price: €51.03

quantity szt.

You gain 26 points []

add to wish list

Rating:

Vendor:

Product code: 00562168

ask about product
recommend to a friend
add your review

Description

The fischer DuoXpand 10 × 100 FUS frame anchor with hex-head screw is a reliable, universal fixing for concrete and masonry. Its special lamella geometry and material mix provide secure anchoring even in hollow substrates. The box includes 50 pieces with electro-galvanized steel screws.

Benefits and unique features

Dual expansion zone – works securely in solid and hollow materials.
Anti-rotation ribs prevent spinning in the hole during installation.
Pre-matched hex-head screw with integrated washer – fast through-fixing.
ETA for multi-point fixings of non-structural systems in concrete and masonry.
Electro-galvanized screw – increased indoor corrosion resistance.

Properties and applications

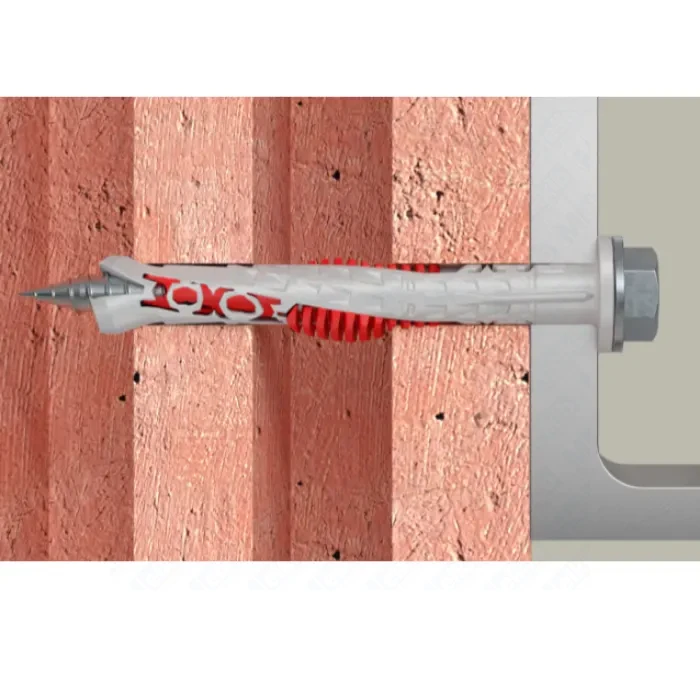

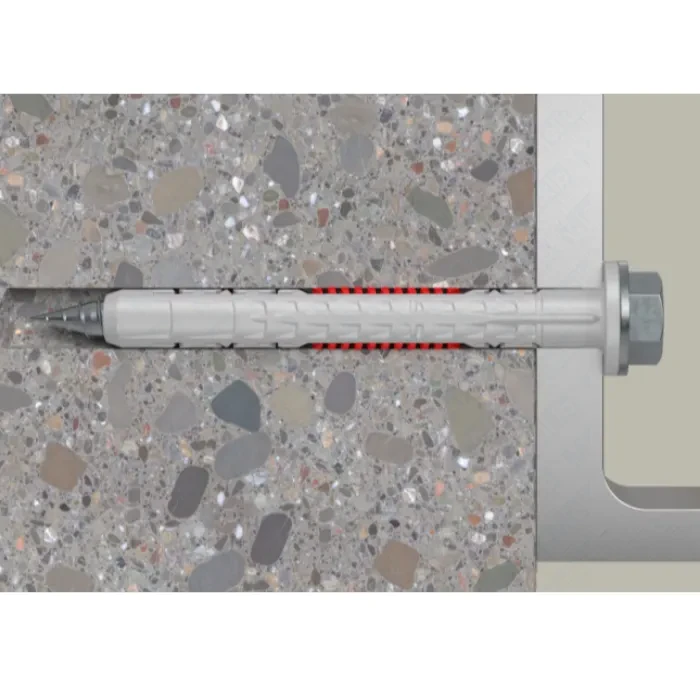

Substrates: concrete ≥ C12/15, solid brick, calcium-silicate units (solid and hollow), perforated clay brick, lightweight concrete, aerated concrete.
Through-installation: ideal for fastening metal and timber elements to concrete or masonry.
Typical uses: façade and roof substructures, windows, doors, brackets, beams, wall cabinets, supports, cable trays and ladders.
Edge safety: lamella design reduces cracking near edges.

Technical data

Parameter	Value
System	DuoXpand FUS – anchor 10 × 100 mm with hex-head screw and integrated washer
Drill diameter (d0)	10 mm
Min. hole depth for through-installation (h2)	110 mm
Fixture thickness (t_fix) at 50 mm embedment	up to 50 mm
Fixture thickness (t_fix) at 70 mm embedment	up to 30 mm
Anchor length (l)	100 mm
Drive	TX40 / SW13
Screw material	electro-galvanized steel
Documents	ETA-21/0324, ETA-22/0186, DoP 0347
Packing / quantity	box, 50 pcs
GTIN (EAN)	4048962440294

Storage recommendations

Store in the original, closed packaging in a dry place at 5–25 °C. Protect from moisture, UV radiation and aggressive chemical vapours. Avoid brine contact and condensation.

FAQ

1) Which substrates suit the DuoXpand 10 × 100 FUS?
Concrete ≥ C12/15, solid brick, calcium-silicate units (solid/hollow), perforated clay, lightweight and aerated concrete.

2) What drill bit size is required?
10 mm.

3) Is through-installation possible?
Yes; minimum hole depth is 110 mm.

4) Maximum fixture thickness?
Up to 50 mm at 50 mm embedment or 30 mm at 70 mm embedment.

5) Are approvals available?
Yes – ETA-21/0324 and ETA-22/0186.
