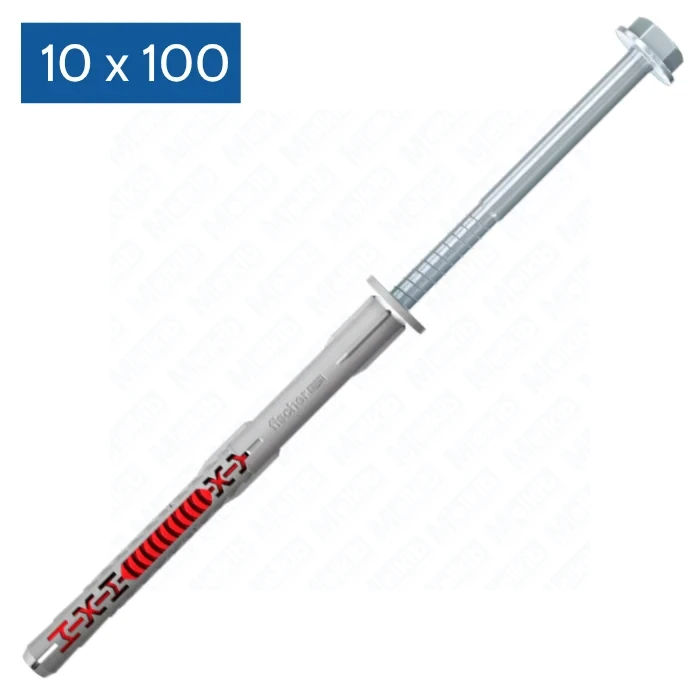

fischer DuoXpand 10×100 FUS frame anchor with hex-head screw, electro-galvanized steel, for concrete and masonry, 50 pcs
Product code: 00562168
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Secure purchase guarantee
Product description
The fischer DuoXpand 10 × 100 FUS frame anchor with hex-head screw is a reliable, universal fixing for concrete and masonry. Its special lamella geometry and material mix provide secure anchoring even in hollow substrates. The box includes 50 pieces with electro-galvanized steel screws.
Benefits and unique features
- Dual expansion zone – works securely in solid and hollow materials.
- Anti-rotation ribs prevent spinning in the hole during installation.
- Pre-matched hex-head screw with integrated washer – fast through-fixing.
- ETA for multi-point fixings of non-structural systems in concrete and masonry.
- Electro-galvanized screw – increased indoor corrosion resistance.
Properties and applications
- Substrates: concrete ≥ C12/15, solid brick, calcium-silicate units (solid and hollow), perforated clay brick, lightweight concrete, aerated concrete.

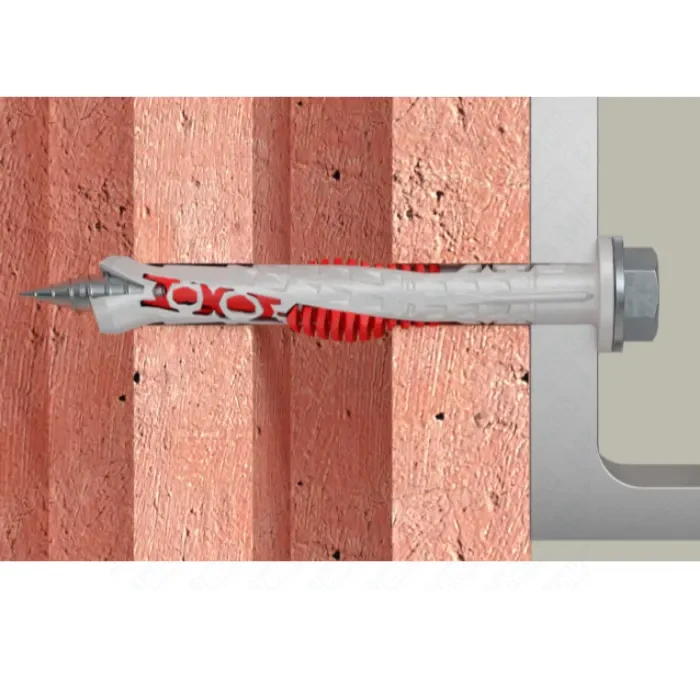

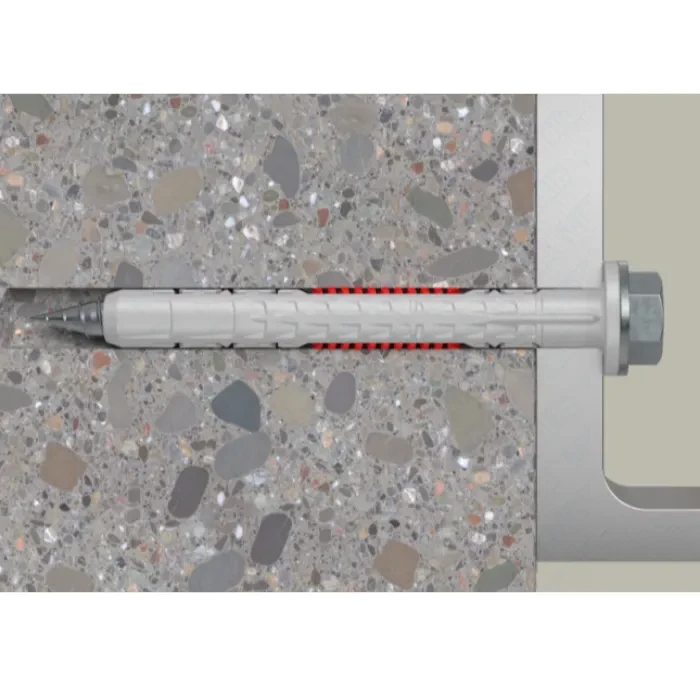

- Through-installation: ideal for fastening metal and timber elements to concrete or masonry.
- Typical uses: façade and roof substructures, windows, doors, brackets, beams, wall cabinets, supports, cable trays and ladders.
- Edge safety: lamella design reduces cracking near edges.
Technical data
| Parameter | Value |
|---|---|
| System | DuoXpand FUS – anchor 10 × 100 mm with hex-head screw and integrated washer |
| Drill diameter (d0) | 10 mm |
| Min. hole depth for through-installation (h2) | 110 mm |
| Fixture thickness (tfix) at 50 mm embedment | up to 50 mm |
| Fixture thickness (tfix) at 70 mm embedment | up to 30 mm |
| Anchor length (l) | 100 mm |
| Drive | TX40 / SW13 |
| Screw material | electro-galvanized steel |
| Documents | ETA-21/0324, ETA-22/0186, DoP 0347 |
| Packing / quantity | box, 50 pcs |
| GTIN (EAN) | 4048962440294 |
Storage recommendations
Store in the original, closed packaging in a dry place at 5–25 °C. Protect from moisture, UV radiation and aggressive chemical vapours. Avoid brine contact and condensation.
FAQ
1) Which substrates suit the DuoXpand 10 × 100 FUS?
Concrete ≥ C12/15, solid brick, calcium-silicate units (solid/hollow), perforated clay, lightweight and aerated concrete.
2) What drill bit size is required?
10 mm.
3) Is through-installation possible?
Yes; minimum hole depth is 110 mm.
4) Maximum fixture thickness?
Up to 50 mm at 50 mm embedment or 30 mm at 70 mm embedment.
5) Are approvals available?
Yes – ETA-21/0324 and ETA-22/0186.
