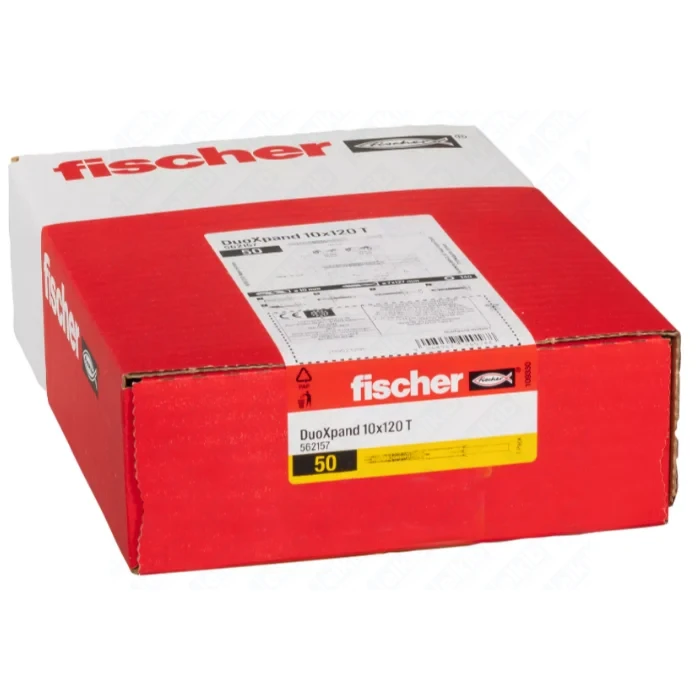

fischer DuoXpand 10×120 T frame anchor with countersunk TX40 screw, electro-galvanized steel, for concrete and masonry, 50 pcs
Product code: 00562157
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Secure purchase guarantee
Product description
The fischer DuoXpand 10 × 120 T frame anchor with countersunk (conical) head screw is a reliable, universal fixing for concrete and masonry. Its lamella geometry and material mix deliver secure anchoring even in hollow substrates. The box contains 50 pieces with electro-galvanized steel screws.
Benefits and unique features
- Dual expansion zone – dependable performance in solid and hollow materials.
- Anti-rotation ribs – prevent spinning in the hole during tightening.
- Countersunk TX screw – neat, flush finish of the fixture.

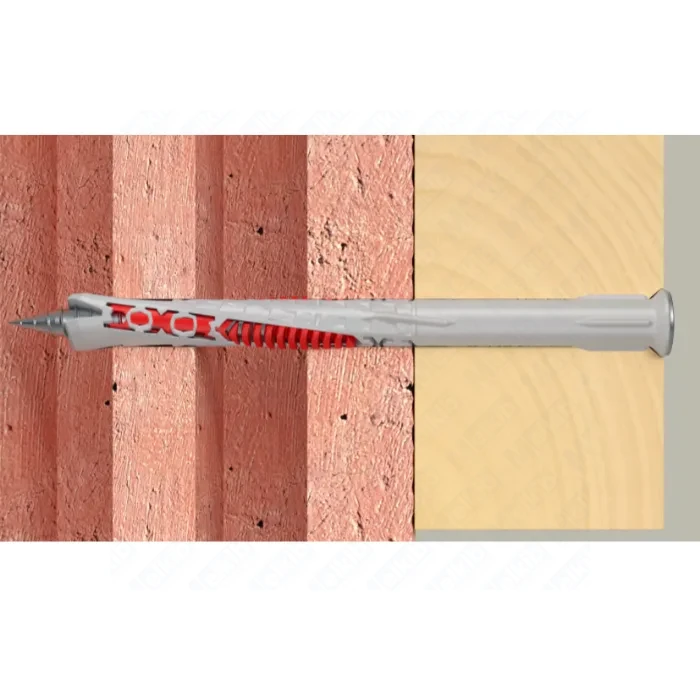

- Through-installation possible – fast and repeatable on-site work.
- European Technical Assessment (ETA) for multi-point non-structural fixings.
Properties and applications

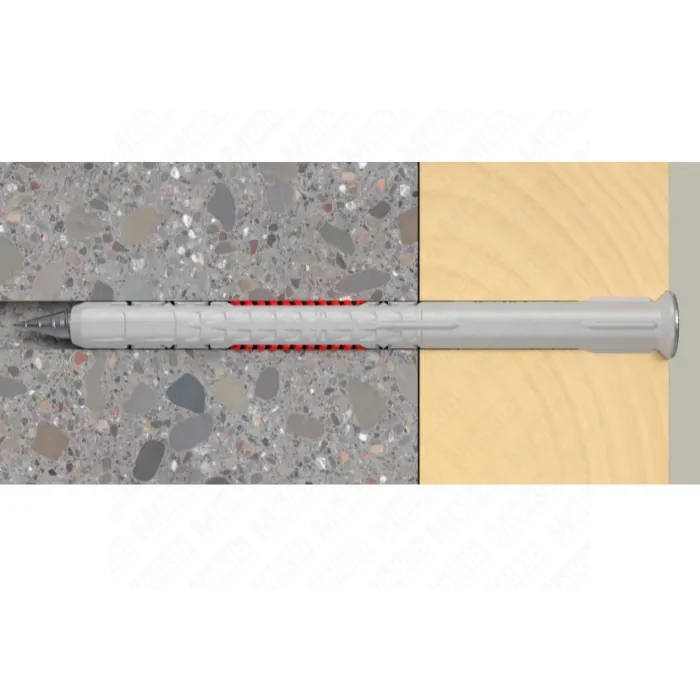

- Substrates: concrete ≥ C12/15, solid brick, calcium-silicate units (solid and hollow), perforated clay brick, lightweight concrete, aerated concrete.
- Applications: façade and roof substructures, windows and doors, beams, brackets, wall cabinets, supports, cable trays and ladders.
- Edge safety: lamella design reduces cracking and allows fixing closer to edges.
- Durability: electro-galvanized steel screw for increased indoor corrosion resistance.
Technical data
| Parameter | Value |
|---|---|

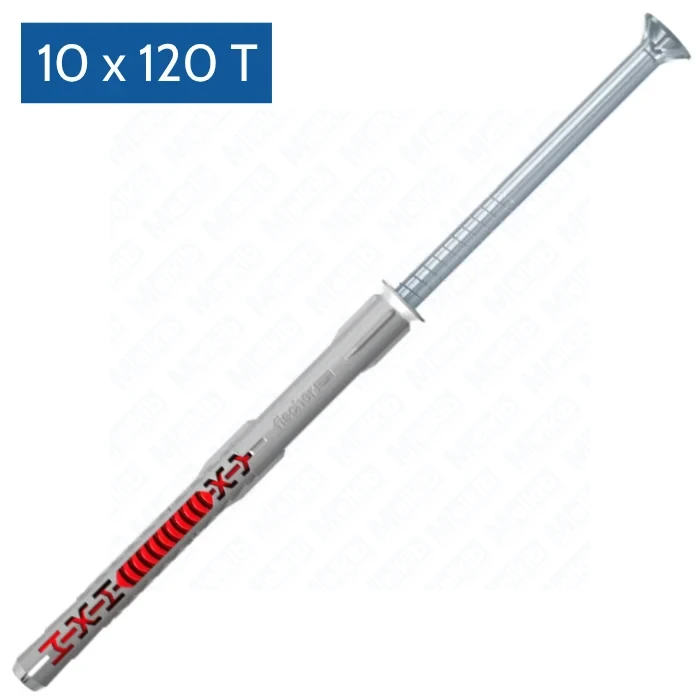

| System | DuoXpand 10 × 120 T – anchor with countersunk screw |
| Drill diameter (d0) | 10 mm |
| Min. hole depth for through-installation (h2) | 130 mm |
| Fixture thickness (tfix) at 50 mm embedment | up to 70 mm |
| Fixture thickness (tfix) at 70 mm embedment | up to 50 mm |
| Anchor length | 120 mm |
| Drive | TX40 |
| Screw material | electro-galvanized steel |
| Documents | ETA-21/0324, DoP 0347, Report No. 21-010-3 (1) |
| Packing / quantity | folding box / 50 pcs |
| GTIN (EAN) | 4048962440188 |
Storage recommendations
Store in the original closed packaging in a dry place at 5–25 °C. Protect from moisture, UV radiation and aggressive chemical vapours. Avoid brine contact and condensation.
FAQ
1) Which substrates suit the DuoXpand 10 × 120 T?
Concrete ≥ C12/15, solid brick, calcium-silicate units (solid/hollow), perforated clay, lightweight and aerated concrete.
2) What drill bit size is required?
10 mm.
3) Is through-installation possible?
Yes – minimum hole depth is 130 mm.
4) Maximum fixture thickness?
Up to 70 mm at 50 mm embedment or 50 mm at 70 mm embedment.
5) Which approvals are available?
European Technical Assessment ETA-21/0324 and DoP 0347.
