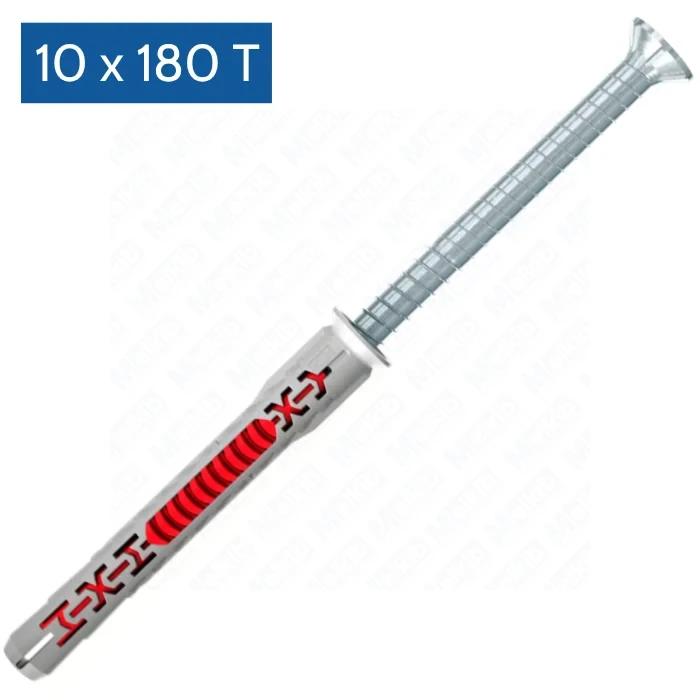

DuoXpand 10×180 T frame fixing, electro-galvanized steel, for concrete and masonry, 50 pcs
Product code: 00562160
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Secure purchase guarantee
Product description
The DuoXpand 10 × 180 T frame fixing, made of electro-galvanized steel, is a reliable solution for multiple non-structural fixings in concrete and masonry. The special lamella geometry and two embedment depths enable safe installation even near edges and a wide range of uses.
Benefits and unique features
- Innovative design and materials – secure anchoring in many base materials.
- Two embedment depths – flexible matching to substrate and load.
- Anti-rotation ribs – prevent plug spinning while tightening.
- Pre-assembled countersunk screw (T) – quick, flush and neat installation.
- European Technical Assessment for multiple fixings – proven performance and safety.
Properties and applications
- Applications: façade/roof substructures, windows, gates and doors, cupboards/wall units, beams, TV brackets, wall claddings, metal brackets, cable trays and ducts.
- Base materials (per ETA): concrete ≥ C12/15, solid brick, sand-lime blocks (solid and hollow), aerated and lightweight concrete, hollow clay masonry; also suitable for dense natural stone and solid gypsum panels.

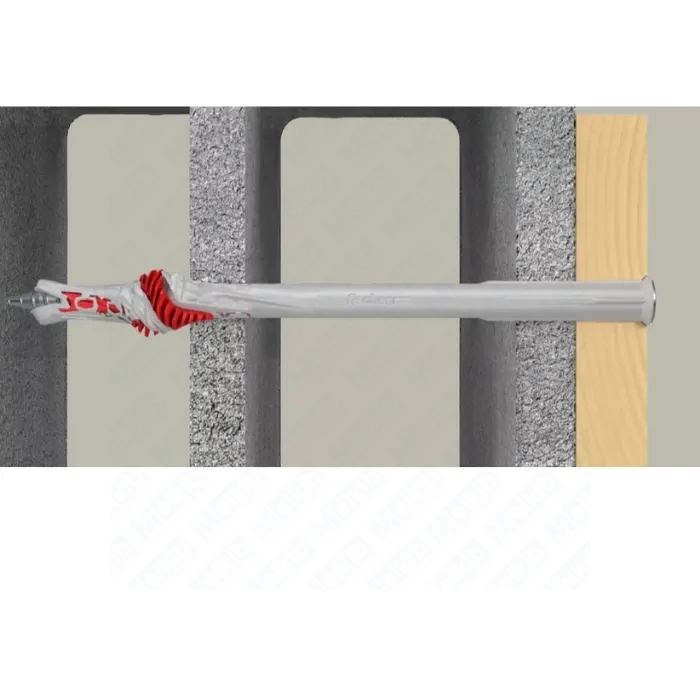

- Installation: through-installation; even load distribution in solid materials and shape-forming anchorage in hollow blocks.
Technical data
| Parameter | Value |
|---|---|
| European Technical Assessment / DoP / Report | ETA-21/0324, ETA-22/0186, DoP No. 0347, REPORT NO.: 21-010-3 (1) |
| Drill diameter (d0) | 10 mm |
| Min. hole depth for through installation (h2) | 190 mm |
| Usable length at 50 mm embedment (tfix) | 130 mm |
| Usable length at 70 mm embedment (tfix) | 110 mm |
| Usable length at 140 mm embedment (tfix) | 40 mm |
| Usable length at 160 mm embedment (tfix) | 20 mm |
| Plug length | 180 mm |
| Screw drive | TX40 |
| Material / coating | electro-galvanized steel |

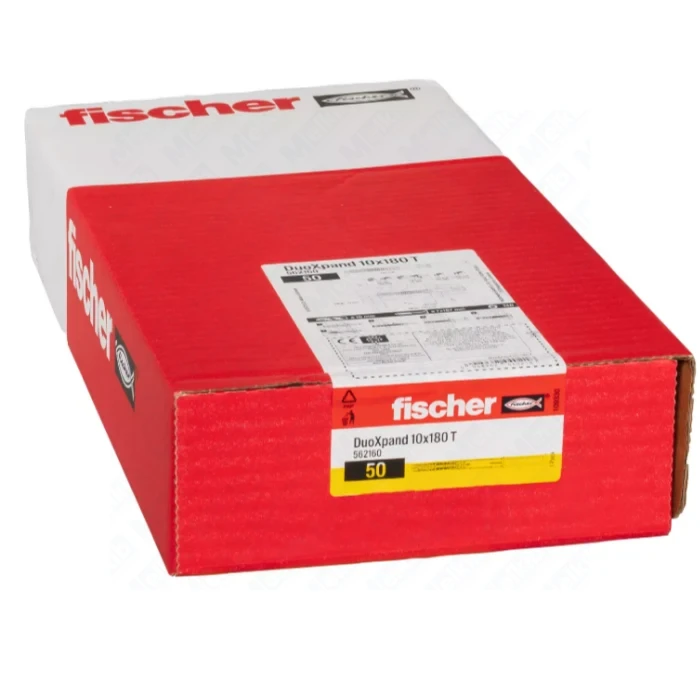

| Packing / quantity | Folding box / 50 pcs |
| GTIN (EAN) | 4048962440218 |
Storage recommendations
Store in the original sealed packaging, dry, at 5–25 °C. Protect from moisture, aggressive fumes and prolonged UV exposure. Avoid storing directly on the floor.
FAQ
1) Which drill bit?
10 mm; minimum hole depth 190 mm.
2) Suitable base materials?
Concrete, sand-lime, hollow clay, aerated concrete and typical masonry – see ETA-21/0324.
3) What does the “T” version mean?
It includes a countersunk head screw for a flush, aesthetic finish.
4) Can I fix near edges?
Yes. Gentle lamella expansion and selectable embedment depths allow edge-proximity installation (per ETA).
Product safety
Manufacturer
FISCHER POLSKA SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
Albatrosów 2
30-716 Kraków, Poland
Responsible person in the EU
FISCHER POLSKA SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
Albatrosów 2
30-716 Kraków, Poland
