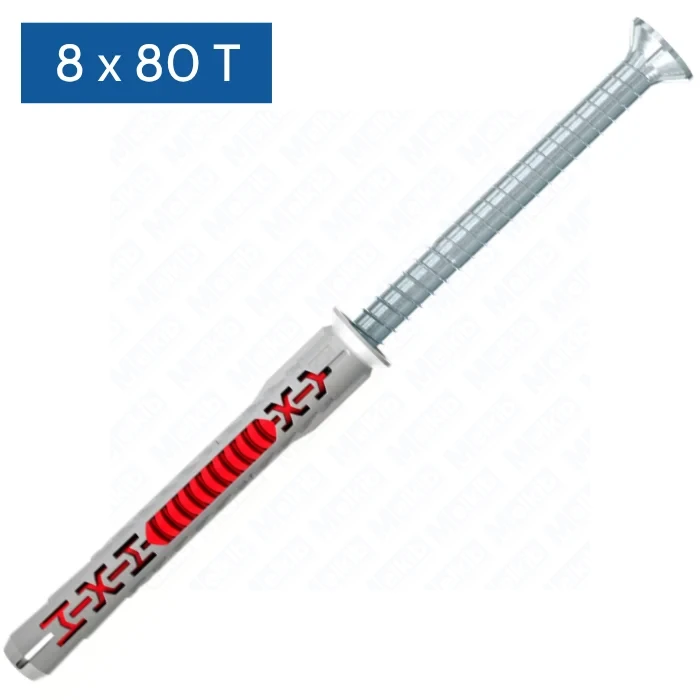

DuoXpand 8×80 T frame fixing, electro-galvanized steel, for concrete and masonry, 50 pcs
Product code: 00562149
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Secure purchase guarantee
Product description
The DuoXpand 8 × 80 T frame fixing, made of electro-galvanized steel, is a universal fastener for multiple non-structural fixings in concrete and masonry. Its special lamella geometry and dual-material concept ensure reliable anchoring and a wide range of applications, even near edges.
Benefits and unique features
- Innovative design and materials – secure fastening in many base materials.
- Two embedment depths – flexible adaptation to the substrate.
- Anti-rotation ribs – prevent the plug from spinning while tightening.
- Pre-assembled countersunk screw (T) – fast installation and flush finish.
- European Technical Assessment for multiple fixings – predictable performance.
Properties and applications
- Applications: façade and roof substructures, windows, gates and doors, cupboards and wall units, beams, TV brackets, wall claddings, metal brackets, cable trays and ducts.
- Base materials (per ETA): concrete ≥ C12/15, solid brick, solid and hollow sand-lime blocks, aerated concrete, lightweight concrete, hollow clay units; also suitable for dense natural stone and solid gypsum panels.

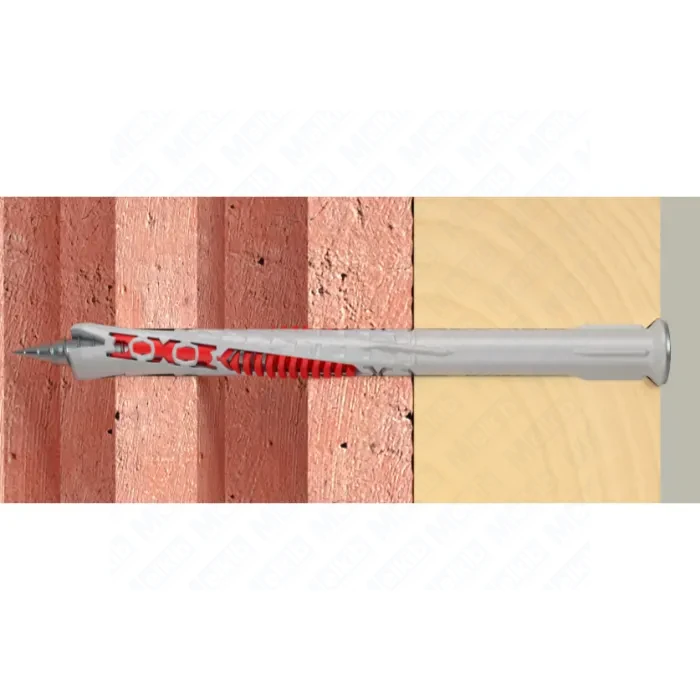

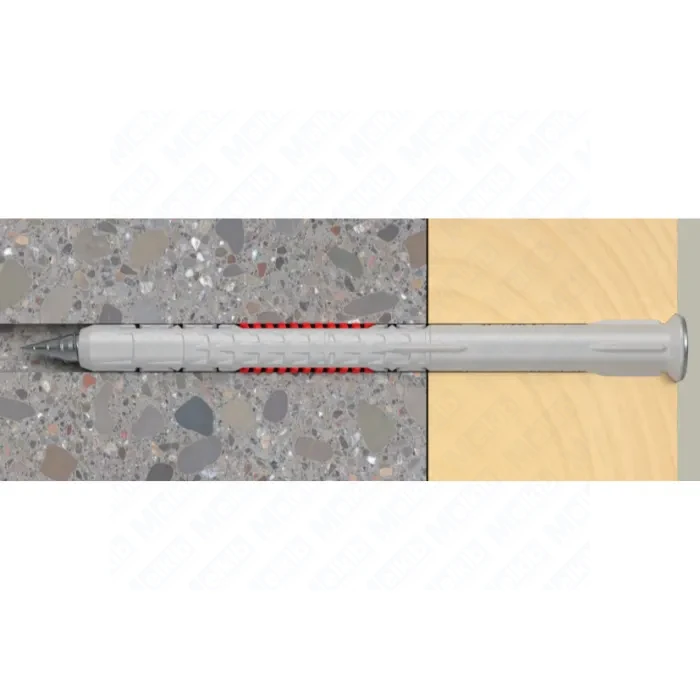

- Installation: through-installation; even load distribution in solid materials and shape-forming anchorage in hollow blocks.
Technical data
| Parameter | Value |
|---|---|
| European Technical Assessment / DoP | ETA-21/0324, DoP No. 0347 |
| Drill diameter (d0) | 8 mm |
| Min. hole depth for through installation (h2) | 90 mm |
| Usable length at 50 mm embedment (tfix) | 30 mm |
| Usable length at 70 mm embedment (tfix) | 10 mm |
| Plug length | 80 mm |
| Screw drive | TX30 |
| Material / coating | electro-galvanized steel |
| Packing / quantity | Folding box / 50 pcs |
| GTIN (EAN) | 4048962440102 |
Storage recommendations
Store in the original sealed packaging, dry, at 5–25 °C. Protect from moisture, chemicals and prolonged UV/salt exposure. Avoid storing directly on the floor.
FAQ
1) Which drill bit is required?
Use an 8 mm drill; minimum hole depth 90 mm.
2) Suitable base materials?
Concrete, hollow clay units, sand-lime, aerated concrete and typical masonry; see ETA-21/0324 for details.
3) What does the “T” version mean?
It includes a countersunk head screw for a neat flush finish.
4) Can I fix near edges?
Yes—gentle lamella expansion and two embedment depths allow edge-proximity installation (per ETA).
