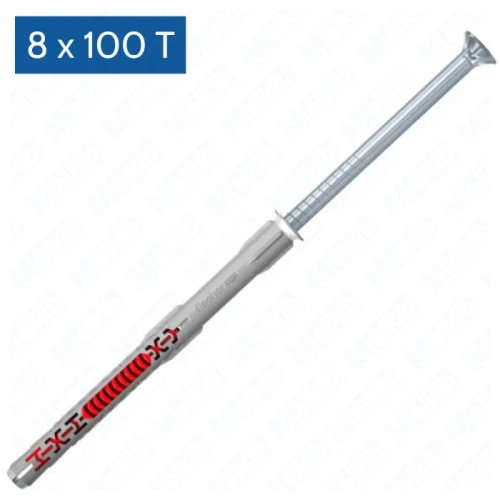

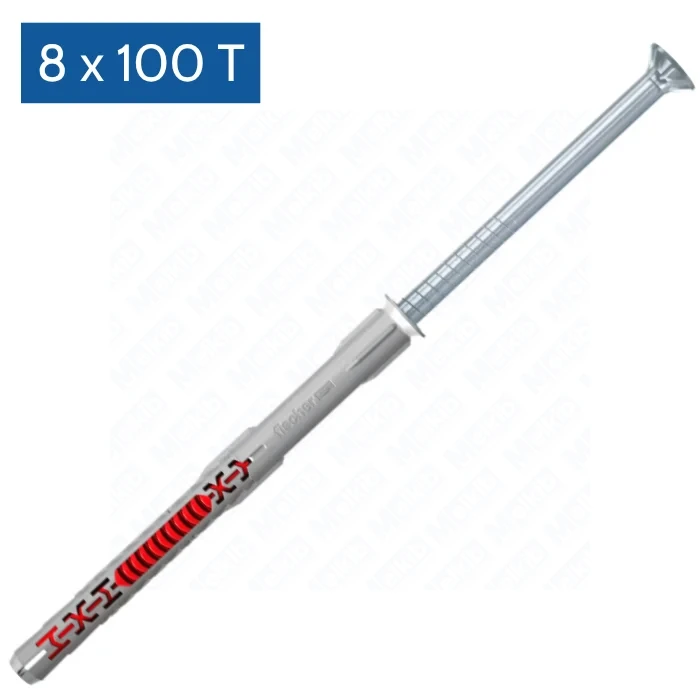

fischer DuoXpand frame fixing 8×100 T, electro-galvanized, through-installation, ETA, for concrete and masonry, 50 pcs
Product code: 00562150
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Secure purchase guarantee
Product description
The fischer DuoXpand 8 × 100 T frame fixing is a universal anchor for multiple non-structural fixings in concrete and masonry. Its innovative material combination and special expansion zone provide secure anchoring even close to edges, also in porous substrates.
Benefits and unique features
- Advanced expansion zone adapts to the base material and distributes loads evenly.
- Two embedment depths enable a wide application range and choice of usable length.
- ETA for multiple non-structural fixings in concrete and masonry.
- Lateral ribs prevent plug rotation while tightening the screw.
- Pre-matched TX screw ensures fast, consistent installation.
Properties and applications
- Applications: substructures in wood/metal, windows, gates and doors, cabinets, wall units, beams, TV brackets, wall claddings, brackets, cable ducts and trays.
- Base materials: concrete ≥ C12/15, solid brick, calcium-silicate blocks (solid and perforated), lightweight and aerated concrete, natural stone with dense structure, gypsum panels.

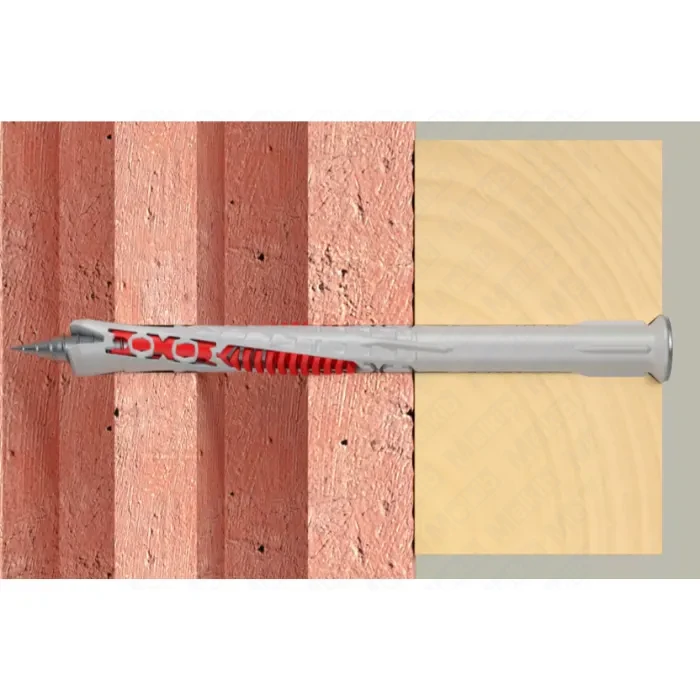

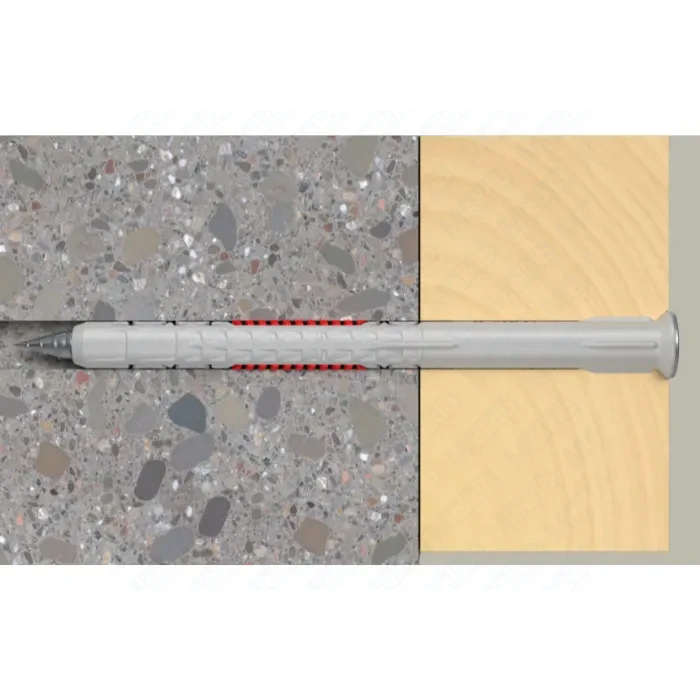

- Installation: through-installation; full-surface expansion in solid materials and form-fit anchoring in hollow masonry for uniform load transfer.
- Screw material: electro-galvanized steel (T version).
Technical parameters
| Parameter | Value |
|---|---|
| European Technical Assessment | yes |
| Drill diameter (d0) | 8 mm |
| Min. hole depth for through-installation (h2) | 110 mm |
| Usable length at 50 mm embedment (tfix) | 50 mm |
| Usable length at 70 mm embedment (tfix) | 30 mm |
| Plug length (l) | 100 mm |
| Screw drive | TX30 |
| Steel finish | electro-galvanized |

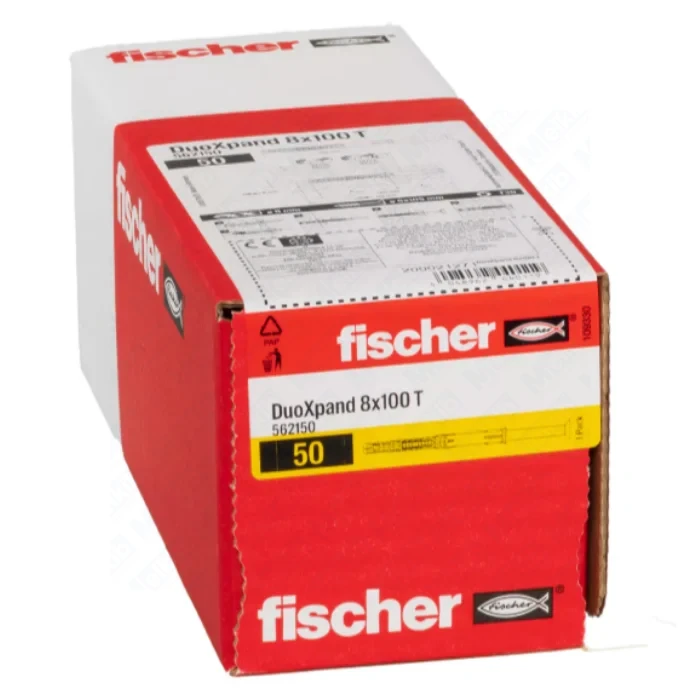

| Packing / quantity | Folding box / 50 pcs |
| GTIN (EAN) | 4048962440119 |
Storage recommendations
Store dry and clean in the original packaging, away from UV and heat sources. Protect screws from corrosion and contamination.
FAQ
1) Which substrates suit DuoXpand 8 × 100 T?
Concrete and most masonry types including bricks, calcium-silicate blocks, lightweight and aerated concrete, and dense natural stone.
2) How to choose 50 vs 70 mm embedment?
Select according to substrate and required loads; 70 mm offers higher capacity in demanding materials.
3) What drill should I use?
8 mm; drill perpendicular and clean the hole before installation.
4) Is edge installation possible?
Yes — the plug geometry supports safe edge distances when following the installation guide.
