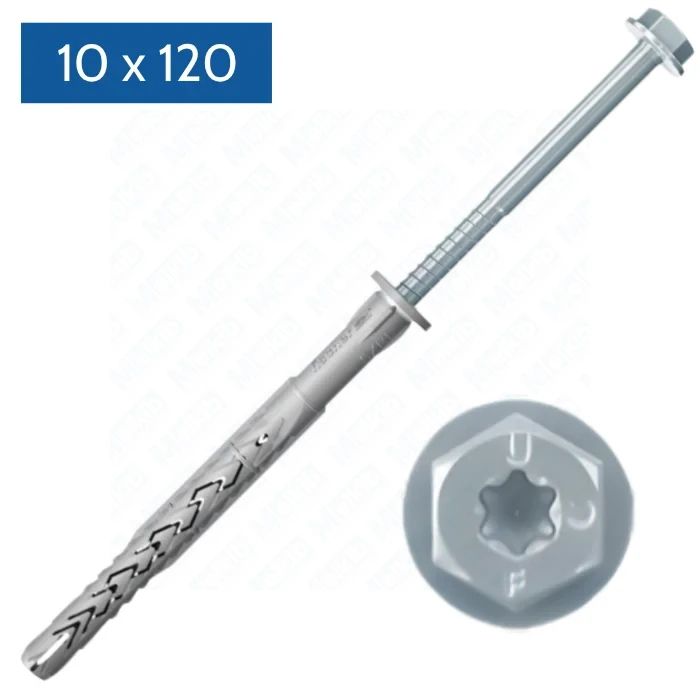

Fischer SXRL 10 x 120 FUS frame anchor, electro-galvanized, for masonry, concrete and AAC, ETA, 50 pcs
Product code: 00522721
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Secure purchase guarantee
Product description
The Fischer SXRL 10 x 120 FUS frame anchor is a versatile fixing for multi-point, non-structural applications in masonry, concrete and aerated concrete. Its long expansion zone and technical approval ensure safe, even load transfer, while the TX40 drive screw speeds up installation.
Benefits and key features
- Even load distribution thanks to dual expansion zones.
- ETA/DIBt approved – safe use in many base materials.
- Longitudinal ribs prevent the plug from spinning during screwdriving.
- Hex-head screw with TX40 recess for fast installation.
- Electro-galvanized steel FUS for durability and corrosion resistance.
Properties and applications
- Façades & substructures: secure fixing of rails, brackets and roof subframes.
- Building fit-out: windows, gates, doors, built-in wardrobes, wall cabinets.
- Installations: metal brackets, cable ducts and trays, metal holders.
- Base materials (per ETA): hollow bricks, AAC, calcium-silicate blocks (solid & hollow), solid brick, concrete ≥ C12/15; also full gypsum blocks and dense natural stone.

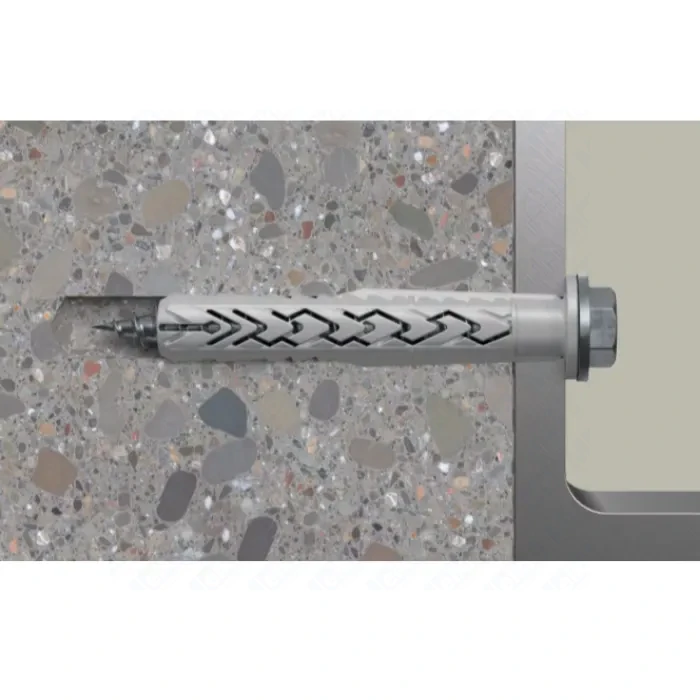

- Through installation: the two expansion zones merge into one long element, limiting damage to webs in hollow blocks.
Technical parameters
| Parameter | Value |
|---|---|
| European Technical Assessment | Yes (ETA) |
| DIBt approval | Yes |
| Drill diameter (d₀) | 10 mm |
| Anchor length | 120 mm |
| Min. hole depth for through installation (h₂) | 130 mm |
| Usable length at embedment 50 mm | 70 mm |
| Usable length at embedment 70 mm | 50 mm |
| Usable length at embedment 90 mm | 30 mm |
| Drive | TX40 / SW 13 |
| Packaging | Folding box |
| Quantity per box | 50 pcs |
| GTIN (EAN) | 4048962180961 |
Storage recommendations
Store dry and clean in the original packaging, away from moisture and aggressive chemicals. Avoid prolonged UV exposure and extreme temperatures. Transport to prevent mechanical damage to plugs and screws.
FAQ
1) Which base materials is the SXRL 10 x 120 FUS suitable for?
Hollow bricks, AAC, calcium-silicate blocks (solid and hollow), solid brick and concrete ≥ C12/15.
2) Which drill should I use?
10 mm drill; for through installation keep a minimum hole depth of 130 mm.
3) Is it suitable for metal components?
Yes, especially with hex-head screws with integrated washer (TX40).
4) How many anchors are in the box?
50 pieces.
