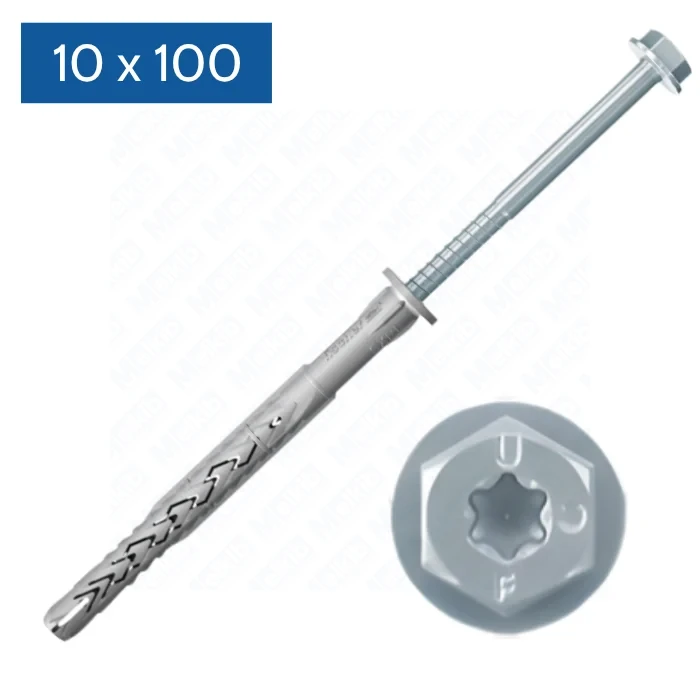

SXRL 10 × 100 FUS Frame Plug, electro-galvanized steel, TX40/SW13 screw, 50 pcs
0
Description

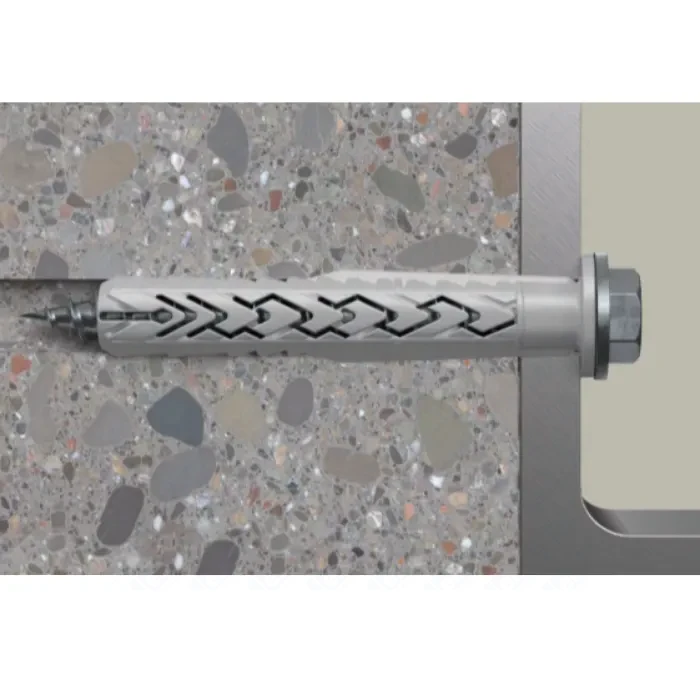

The fischer SXRL 10 × 100 FUS frame plug made of electro-galvanized steel is a versatile fastener for multiple non-structural fixings in concrete and masonry. Its long expansion zone and ETA approval ensure safe, durable and predictable anchoring across many base materials.
Benefits and key features
- ETA approval – certified load capacities in concrete and masonry.
- Long expansion section for reliable anchoring in solid and hollow substrates.
- Even load distribution – reduces the risk of damage to thin walls.
- Longitudinal ribs prevent plug rotation during installation.
- Hex-head screw with washer (TX40 / SW13) enables fast, easy installation.
Properties and applications
- Sub-structures and façades: battens, claddings, brackets and consoles.
- Openings: windows, gates and doors.
- Interior fittings: built-in wardrobes, wall cabinets, battens.
- Installations: cable trays and ducts, metal clamps and brackets.
- Base materials: concrete ≥ C12/15, solid brick, solid and hollow sand-lime blocks, lightweight/aerated concrete, hollow lightweight concrete blocks, perforated brick, compact natural stone, solid gypsum panels.
Technical parameters
| Parameter | Value |
|---|---|
| Drill diameter (do) | 10 mm |
| Plug length | 100 mm |
| Min. hole depth for through-fixing (h2) | 110 mm |
| Usable length at embedment 50 mm (tfix) | 50 mm |
| Usable length at embedment 70 mm (tfix) | 30 mm |
| Usable length at embedment 90 mm (tfix) | 10 mm |
| Drive | TX40 / SW13 |
| Plug / screw material | Polyamide / electro-galvanized steel |
| Packaging | Folding box |
| Quantity per box | 50 pcs |
| GTIN (EAN) | 4048962180954 |
| Approval | ETA-07/0121, DoP No. 0329 |
Storage recommendations
Store dry and ventilated, in original packaging, away from moisture and aggressive chemicals. Avoid prolonged sunlight and extreme temperatures.
FAQ
1) Which materials can I use the SXRL 10 × 100 in?
Concrete (from C12/15), solid and hollow bricks, sand-lime blocks, lightweight/aerated concrete and common masonry.
2) Which drill bit is required?
Ø 10 mm; through-fixing is recommended.
3) Does it have an approval?
Yes, European Technical Assessment (ETA).
4) What is the benefit of the long expansion zone?
It provides even load distribution and secure anchoring in hollow substrates.
5) How many pieces per box?
50 pieces.
