Fischer DuoXpand 10 x 120 FUS frame anchor, electro-galvanized steel, through-fastening, 50 pcs
Product code: 00562169
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Secure purchase guarantee
Product description
The Fischer DuoXpand 10 x 120 FUS frame anchor with electro-galvanized steel is an innovative solution for secure fixings in concrete and masonry, offering excellent durability and reliability.
Advantages and Unique Features
- Secure fixing in a wide range of construction materials
- Corrosion-resistant electro-galvanized steel
- Innovative geometry and material combination
- Pre-assembled screw tailored to the plug shape
- European Technical Assessment (ETA)
Properties and Applications
- Dual expansion zones: suitable for solid and hollow materials
- Lateral ribs: prevent rotation in the drill hole
- Applications: for substructures, brackets, beams, windows, doors, cabinets and cable systems

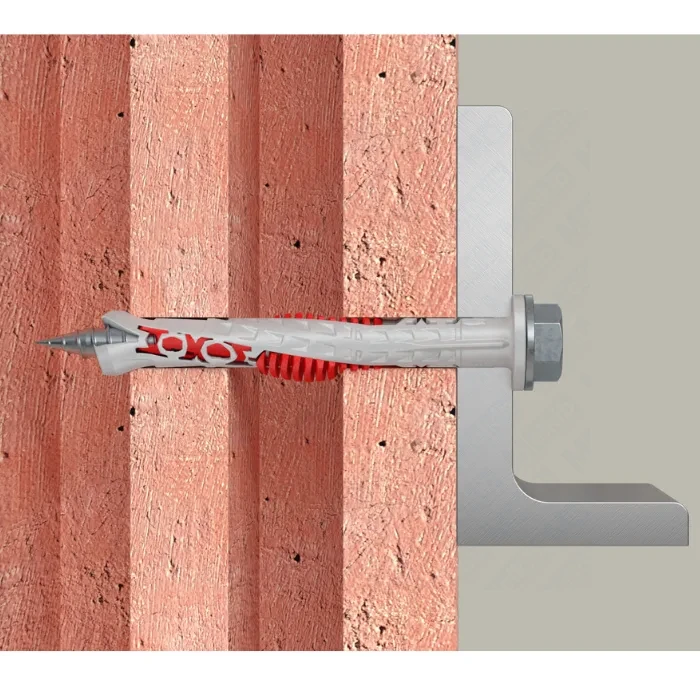

- Through-fastening: quick and easy installation through attached part
- Compatibility: concrete, brick, hollow blocks, silicate blocks, natural stone
Technical Parameters
| Parameter | Value |
|---|---|
| Drill diameter | 10 mm |
| Min. hole depth (through-fastening) | 130 mm |
| Effective anchorage depth (50 mm) | 70 mm |
| Effective anchorage depth (70 mm) | 50 mm |
| Anchor length | 120 mm |
| Drive | TX40 / SW 13 |

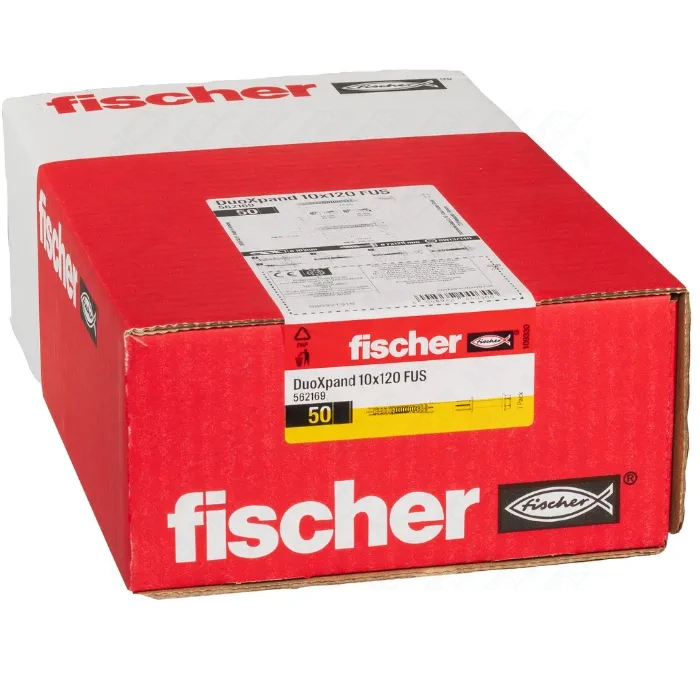

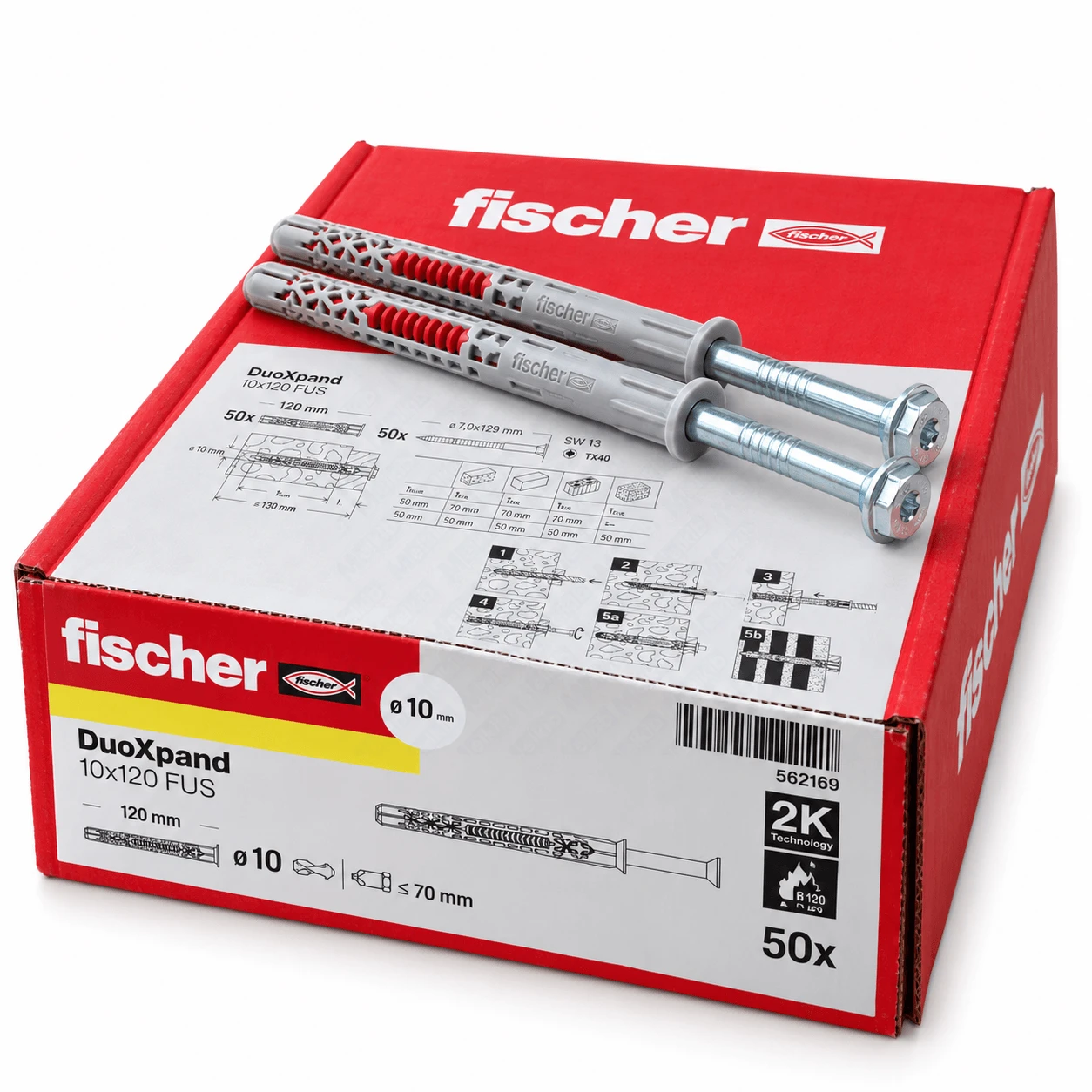

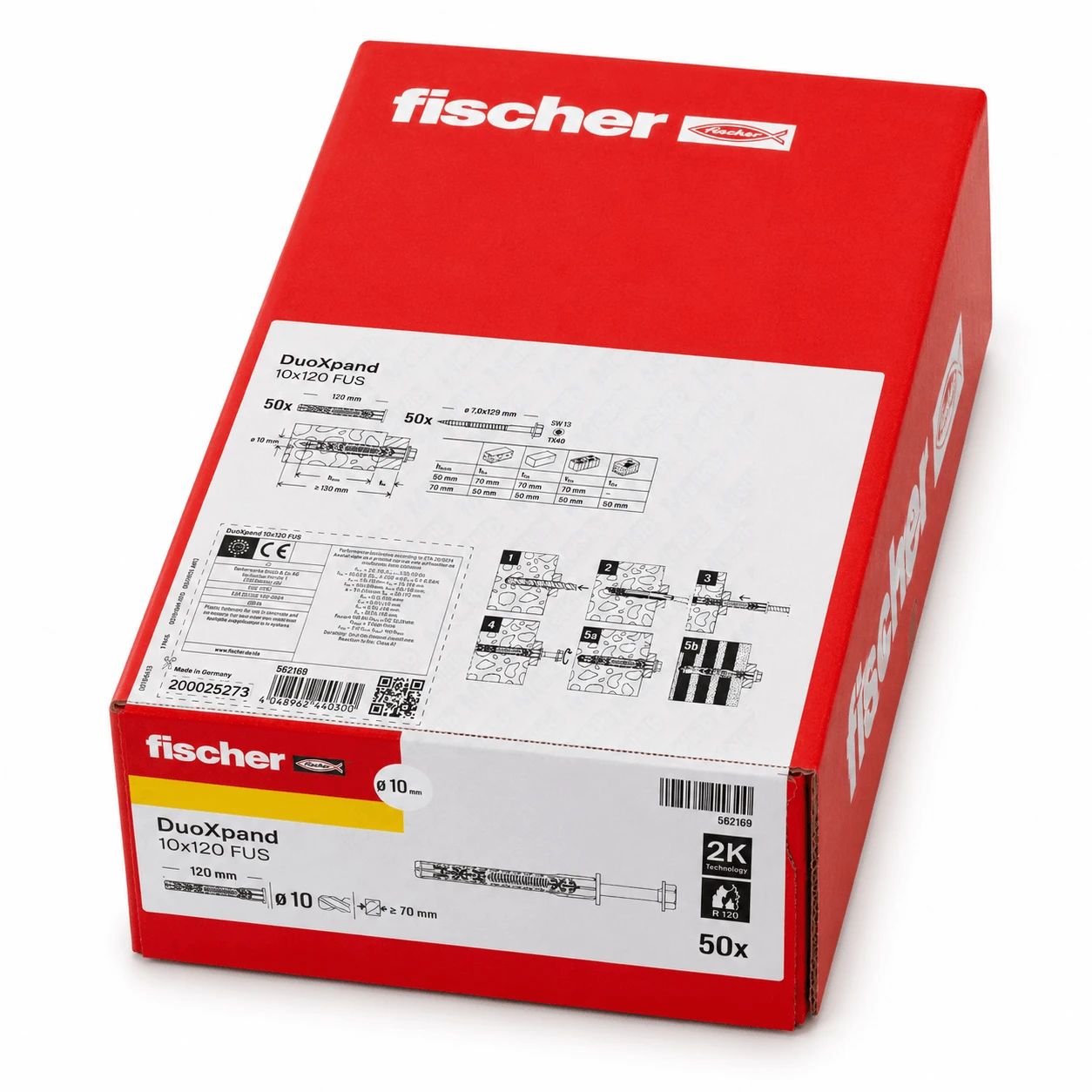

| Packing | Folding box |
| Quantity | 50 pcs |
| GTIN (EAN-Code) | 4048962440300 |
Storage Recommendations
Store in a dry place at temperatures between +5°C and +25°C. Avoid direct sunlight and moisture. Protect from chemical exposure.
Product safety
Manufacturer
FISCHER POLSKA SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
Albatrosów 2
30-716 Kraków, Poland
Responsible person in the EU
FISCHER POLSKA SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
Albatrosów 2
30-716 Kraków, Poland
