DuoXpand 10 x 140 FUS 50pcs | fischer Frame Anchor DuoXpand 10 x 140 FUS galvanized steel
Product code: 00562170
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Secure purchase guarantee
Product description
The fischer DuoXpand 10 x 140 FUS frame anchor is a versatile and reliable fixing solution with a galvanized screw, suitable for a wide range of construction substrates.
Advantages and unique features
- Innovative expansion zone ensures secure fixing in various base materials
- Two anchoring depths allow wide application range
- Pre-installed screw perfectly matched to the anchor shape
- ETA certification for non-structural fixings in concrete and masonry
- Lamella geometry enables edge-close installation
- Lateral ribs prevent rotation in the hole
Properties and applications
- Applications: substructures, gates, doors, cabinets, TV consoles, wall claddings, cable trays
- Function: ideal for through installation with even load distribution

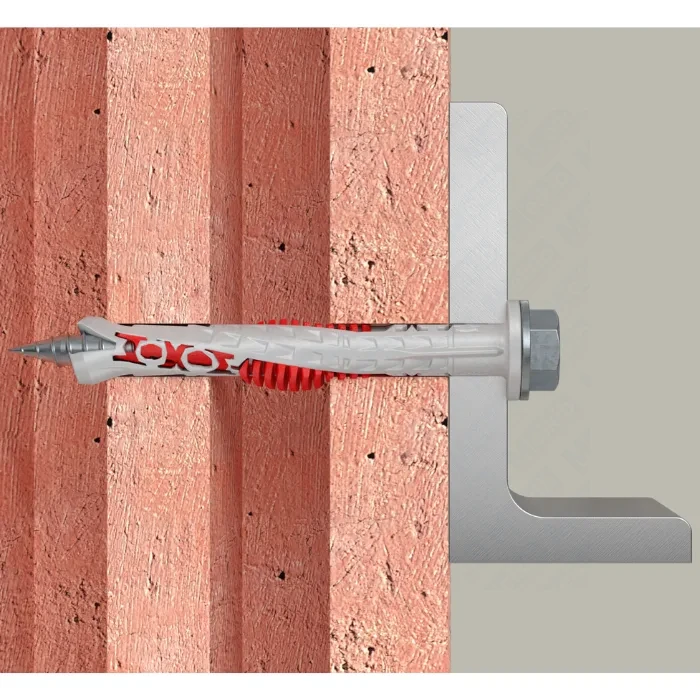

- Hollow bricks: form-locking anchorage without damaging inner webs

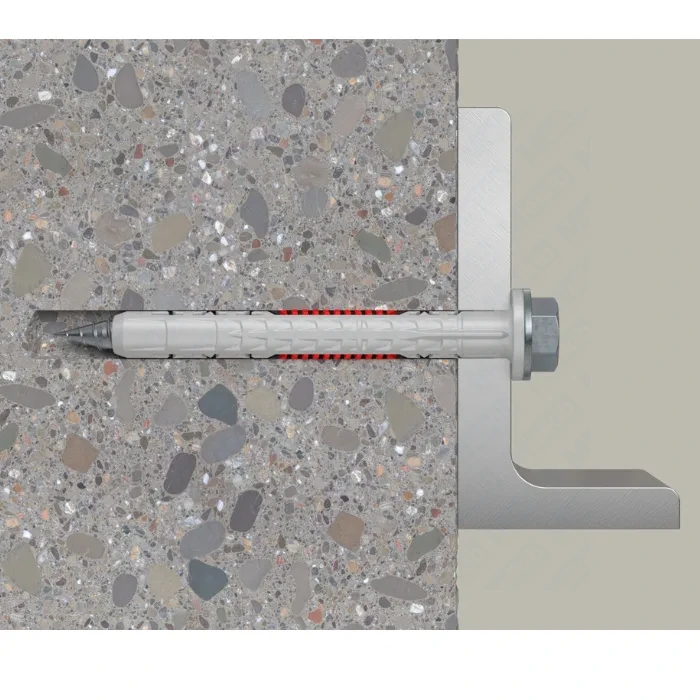

- Recommended for: fastening wood to concrete or masonry
Technical parameters
| Parameter | Value |
|---|---|
| Drill diameter | 10 mm |
| Min. hole depth (through installation) | 150 mm |
| Useful length (anchoring depth 50 mm) | 90 mm |
| Useful length (anchoring depth 70 mm) | 70 mm |
| Anchor length | 140 mm |
| Screw drive | TX40 / SW13 |
| Packaging | Foldable box |
| Quantity | 50 pcs |
| GTIN (EAN) | 4048962440317 |
Storage recommendations
Store in a dry, shaded, and well-ventilated area at +5°C to +25°C. Protect from moisture and direct heat.
