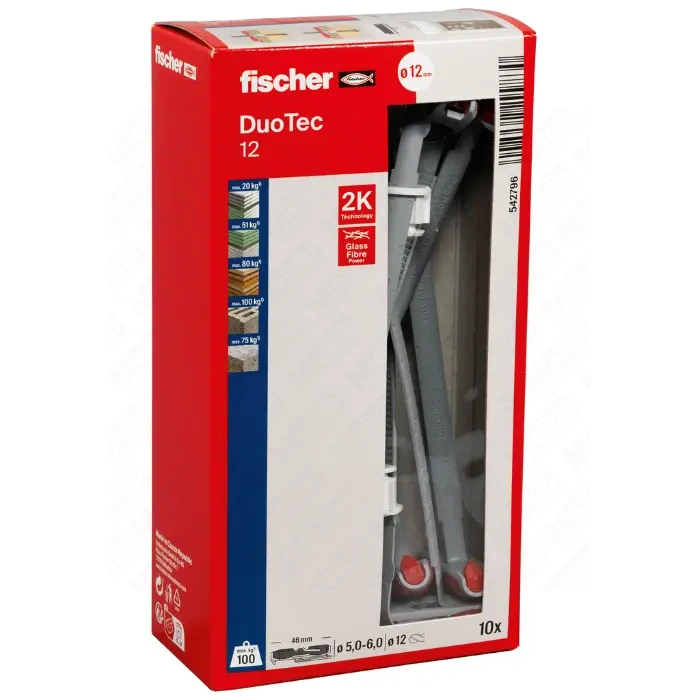

Fischer DuoTec 12, nylon toggle anchor for plasterboard, OSB, MDF, steel and concrete, 10 pcs

Fischer DuoTec 12, nylonowy kołek zaciskowy do płyt gipsowych

Availability: Available 4-10 pcs

Delivery: The price does not include any possible payment costs check the delivery methods

Price: €13.39 13.39

Net price: €10.88

quantity szt.

You gain 5 points []

add to wish list

Rating:

Vendor:

Product code: 00542796

ask about product
recommend to a friend
add your review

Description

Fischer DuoTec 12 is an advanced nylon toggle anchor designed for high load capacities in panel materials and demanding installation conditions.

Advantages and unique features

Universal fixing for screws, hooks and threaded rods
Hinged arm distributes load evenly across the panel
Flush collar reinforces the hole and increases load capacity
Curved handle helps check cavity depth before installation
Suitable for use in cavities, including insulated spaces

Properties and applications

Load strength: withstands high tensile and shear forces
Versatility: also functions as an expansion anchor in solid materials
Typical uses: wall cabinets, handrails, mirrors, lamps, baskets
Optimized for installation: Ø12 mm holes, panel thickness 9.5–55 mm

Technical specifications

Parameter	Value
Drill diameter (d₀)	12 mm
Min. panel thickness (dₚ)	9.5 mm
Max. panel thickness (dₚ)	55 mm
Depth of cavity (a)	50 mm
Screw diameter (dₐ)	5.0 – 6.0 mm
Min. screw length (lₐ)	tᶠᶦˣ + 65 mm
Anchor length (l)	60 mm
Max. fixture thickness (tᶠᶦˣ)	lₛ – 65 mm
Quantity	10 pcs
Packaging	Folded box
GTIN (EAN)	4048962299830

Storage recommendations

Store in a dry, shaded area at temperatures between +5°C and +25°C. Avoid moisture and direct sunlight to maintain mechanical integrity of the plastic and steel components.
