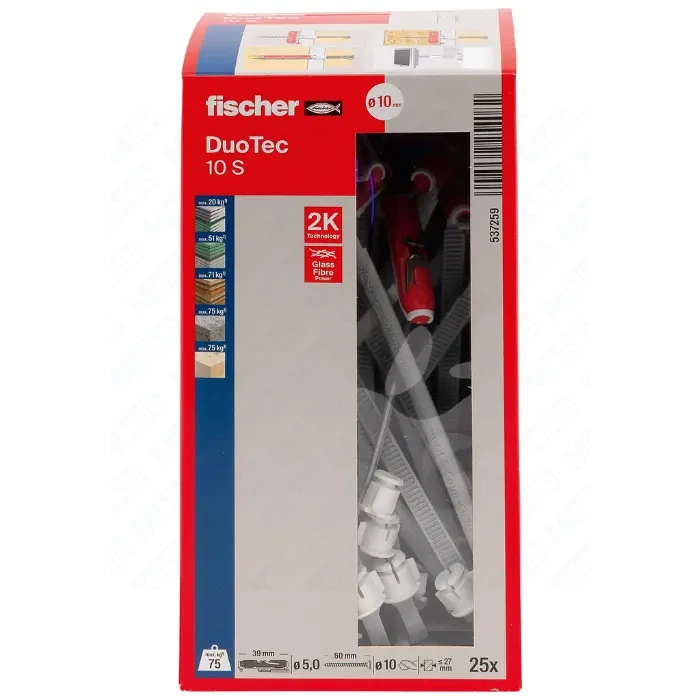

Fischer DuoTec 10 S with countersunk screw, toggle anchor for plasterboard, OSB, MDF, steel, 25 pcs
Product code: 00537259
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Secure purchase guarantee
Product description
The DuoTec 10 S toggle anchor with countersunk screw is a durable and universal fixing solution designed for high loads in panel materials and solid substrates.
Advantages and unique features
- Easy installation without the risk of the anchor falling into the hole
- Compatible with screws, hooks and threaded rods
- Flush sleeve increases load-bearing capacity and stability
- Hinged arm ensures optimal force distribution in the material
- Can be used in tight spaces and behind insulation
Properties and applications
- Versatility: for drywall, OSB, MDF, steel and hollow blocks
- Expansion function: works as a standard anchor in concrete and wood
- Common uses: kitchen cabinets, mirrors, handrails, lamps and shelves
- Reinforced body: plastic with fiberglass and metal insert
Technical specifications
| Parameter | Value |
|---|---|
| Drill diameter (d₀) | 10 mm |
| Min. panel thickness (dₚ,min) | 9.5 mm |
| Max. panel thickness (dₚ,max) | 55 mm |
| Depth of cavity (a) | 40 mm |
| Screw diameter (dₐ) | 5.0 mm |
| Screw length (lₐ) | 60 mm |
| Min. hole depth (h₁) | 65 mm |
| Anchor length (l) | 50 mm |
| Max. fixture thickness (tᶠᶦˣ) | 27 mm |
| Quantity | 25 pcs |
| Packaging | Folded box |
| GTIN (EAN) | 4048962254082 |
Storage recommendations
Store in a dry and shaded area at temperatures between +5°C and +25°C. Protect from sunlight and moisture to maintain the mechanical properties of the plastic and metal components.
