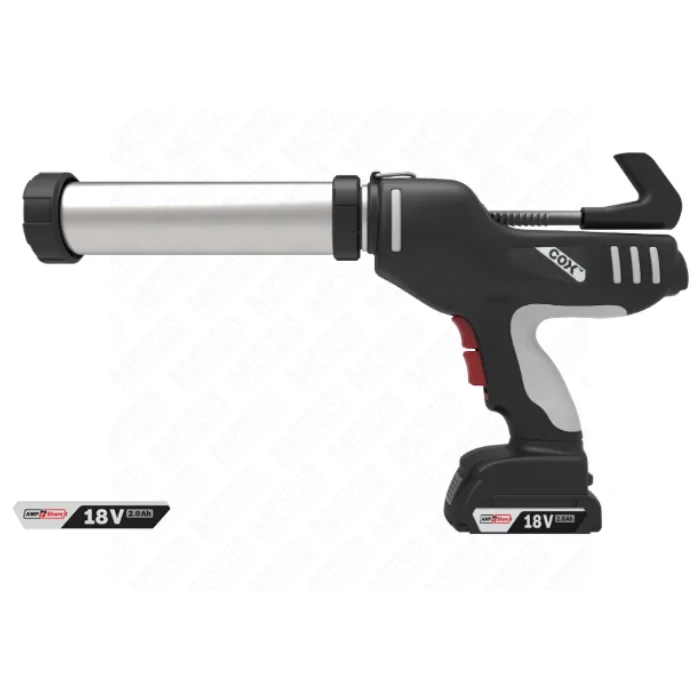

ELECTRAFLOW combi 18 V electric gun for 310/400 mL cartridges and 310/400/600 mL sausages, auto-reverse, 3.5 kN, with battery and charger
0
Description
The ELECTRAFLOW combi electric gun is a cordless dispenser for 1-component adhesives and sealants, handling 310/400 mL cartridges and 310/400/600 mL sausages. Powered at 18 V with up to 3.5 kN thrust and an auto-reverse function, it enables clean, controlled delivery even with medium/high-viscosity materials. This set includes a 18 V 2.0 Ah battery and a fast charger (about 35 min).
Benefits and unique features
- High thrust up to 3.5 kN — stable dispensing of viscous materials
- Auto-reverse — stops ooze when the trigger is released
- Variable speed via trigger — up to ~8.0 mm/s
- Trigger lock and overload protection — safer operation
- 18 V 2.0 Ah Li-ion battery — longer runtime between charges
- Fast charging — about 35 min
- PC/ABS handle, anodized aluminium barrel — durable and light
- Tool component compliance: CE, REACH, RoHS
Properties and applications
- Sealing & bonding: installation, finishing, service work
- Supported packs: 310/400 mL cartridges and 310/400/600 mL sausages
- Material viscosity: medium / high
- Flow control: variable speed + auto-reverse for clean tips
Technical parameters
| Parameter | Value |
|---|---|
| Power supply | 18 V (Li-ion) |
| Battery capacity | 2.0 Ah |
| Charge time | ~35 min |
| Max. thrust | 3.5 kN |
| Rack speed | up to 8.0 mm/s |
| Barrel length | 237–389 mm |
| Weight | 1.65–2.53 kg |
| Compatible capacities | Cartridge: 310/400 mL; Sausage: 310/400/600 mL |
| Viscosity range | medium / high |
| Handle material | PC/ABS |
| Barrel material | anodized aluminium |
| Standard colour | black / grey |
| Nozzle cap diameter | Ø 38 mm |
| Compliance | CE, REACH, RoHS |
| Included | ELECTRAFLOW combi gun, 18 V 2.0 Ah battery, fast charger |

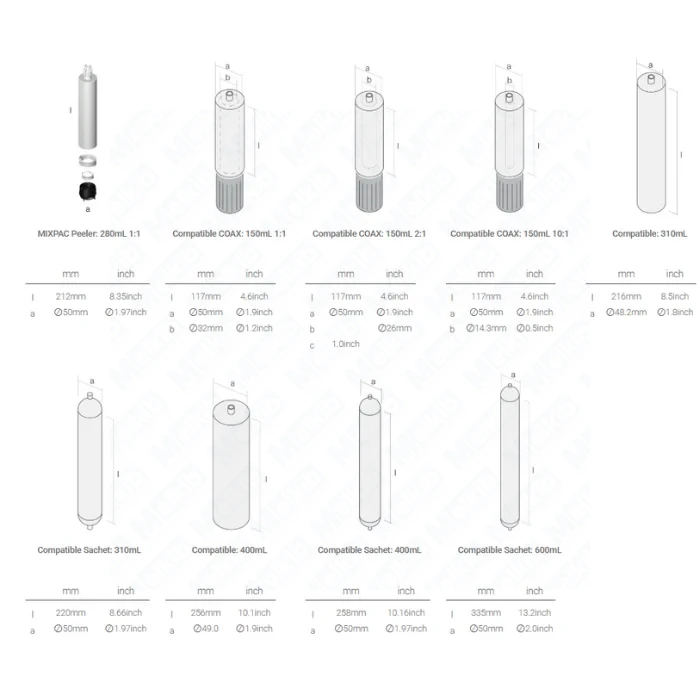

Dimensions of compatible 1K packs
| Pack type | Volume | Length l | Diameter a |
|---|---|---|---|
| Cartridge | 310 mL | 216 mm (8.5") | Ø 48.2 mm (1.8") |
| Sausage | 310 mL | 220 mm (8.66") | Ø 50 mm (1.97") |
| Sausage – type A | 400 mL | 256 mm (10.1") | Ø 49.0 mm (1.9") |
| Sausage – type B | 400 mL | 258 mm (10.16") | Ø 50 mm (1.97") |
| Sausage | 600 mL | 335 mm (13.2") | Ø 50 mm (2.0") |
Storage recommendations
Store the tool and battery in a cool, dry place away from heat and UV. Clean parts in contact with material after use and disconnect the battery. Charge only with the supplied charger within the recommended temperature range.
FAQ
1) Is the battery and charger included?
Yes — this configuration includes an 18 V 2.0 Ah battery and a fast charger.
2) What does auto-reverse do?
It slightly retracts the plunger after trigger release to stop material flow.
3) Which packs fit?
310/400 mL cartridges and 310/400/600 mL sausages — see the dimension table above.
4) What viscosity range?
Medium to high-viscosity products.
5) How long to charge?
About 35 minutes for the 2.0 Ah pack.
