ERGO crimping pliers 239 mm, Multi Change modular system, modules 200/201/202, insulated ferrule and MC4 pliers
Product code: 10100516
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Secure purchase guarantee
Product description

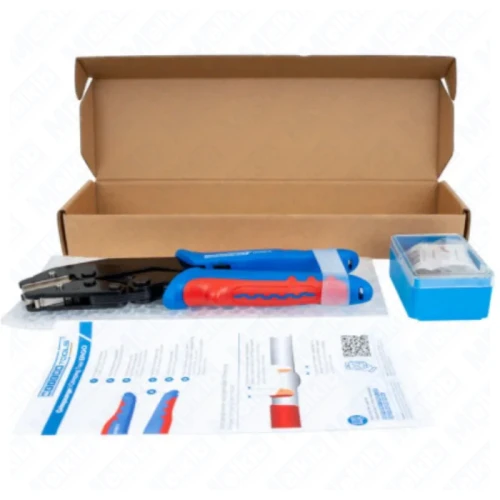

Discover the versatile ERGO crimping pliers at 239 mm overall length with the modular Multi Change system for quick and safe crimping of various electrical connectors.
Advantages and unique features
- Fast module exchange without additional tools
- High repeatability via ratchet mechanism with locking device
- Adjustable crimping force with precise eccentric setting
- Two-component “ice-crack design” handles for secure grip
- Tool releases only after crimping cycle is complete
Properties and applications
- Module 200 (0.5–6 mm² / AWG 22–10): insulated end ferrules
- Module 201 (0.25–6.0 mm² / AWG 24–10): wire ferrules
- Module 202 (2.5/4/6 mm² / AWG 14–10): MC4 connectors
- Plastic case: safe storage and dust protection for modules
Technical parameters
| Parameter | Value |
|---|---|
| Total length | 239 mm |
| Weight | 534 g |
| Module range | 200: 0.5–6 mm² (AWG 22–10); 201: 0.25–6.0 mm² (AWG 24–10); 202: 2.5/4/6 mm² (AWG 14–10) |
| Article number | 10100516 |
Storage recommendations
Store in a dry place at 5 °C to 35 °C, protecting from direct sunlight.
Product safety
Responsible person in the EU
WEICON GmbH & Co. KG
Königsberger Str. 255
48157 Münster, Germany
