Fischer KB 16 flat nylon cable clip, ClipFix plus SD / hammer-in fixing N, pack of 50
Product code: 00058136
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Secure purchase guarantee
Product description

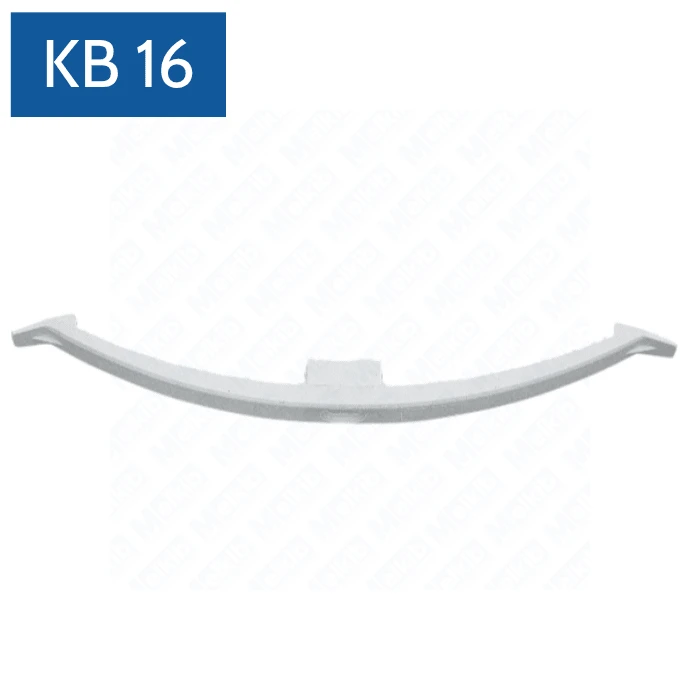

Fischer KB 16 is a flat cable clip for quick, space-saving routing of single wires. Made of high-quality nylon, it securely clamps the cable and allows easy installation using the SD push-in holder or a hammer-in nail anchor.
Benefits and unique features
- Flat design – saves space at the fixing area.
- Fast fastening and the option to add cables after installation.
- Secure guidance thanks to the clamp.
- One-hand installation with the SD push-in holder; in concrete, hammer-in fixing N can be used.
- High-quality, halogen- and silicone-free nylon; service temperature after installation −20 °C to +80 °C.
Properties and applications

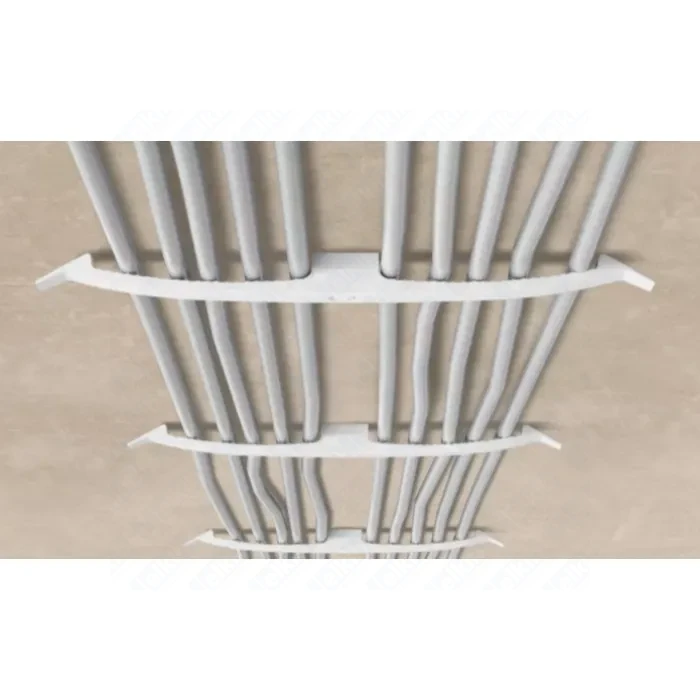

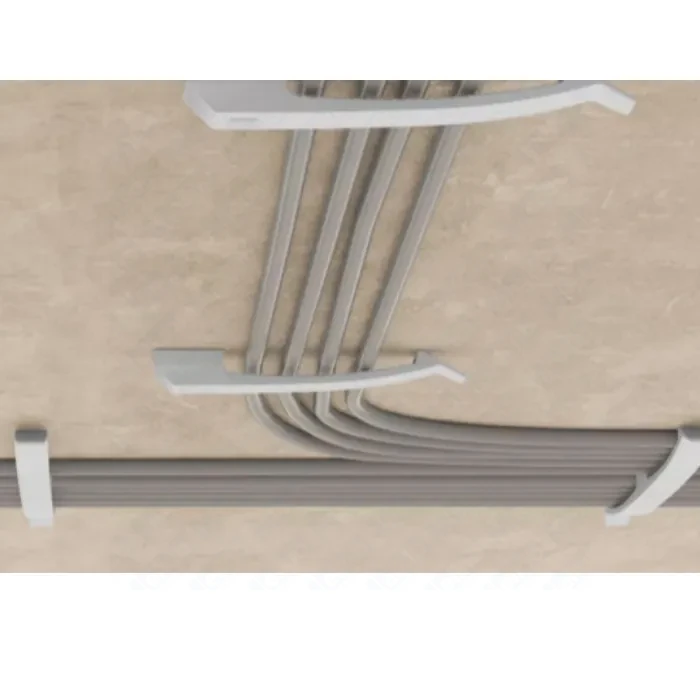

- Applications: fastening several single cables and conductors.
- Base materials (with ClipFix plus SD): concrete, solid aerated concrete, solid sand-lime blocks, solid brick, dense natural stone.
- Installation: insert ClipFix plus SD into the drilled hole (no extra screws) or use Hammerfix N; then pull the cable under the clip.
Technical parameters
| Parameter | Value |
|---|---|
| Clip size (a × b) | 15 × 230 mm |
| Slot size (B × L) | 6 × 10 mm |
| Recommended fixing | ClipFix plus SD or Hammerfix N |
| Service temperature after installation | −20 °C to +80 °C |
| Packaging / quantity | Folding box / 50 pcs |
| GTIN (EAN) | 4006209581360 |
Storage recommendations
Store in a dry, shaded place in the original packaging. Protect from UV and contamination. Do not bend or mechanically load the clip before installation.
FAQ
1) What is KB 16 used for?
Fast, flat fixing of single cables.
2) Which base materials?
With SD holder: concrete, solid AAC, solid sand-lime blocks and solid brick; hammer-in nail anchor N can also be used.
3) Can I add a cable afterwards?
Yes, the clamp lets you pull in an additional wire.
4) Temperature range?
−20 °C to +80 °C after installation.
Product safety
Manufacturer
FISCHER POLSKA SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
Albatrosów 2
30-716 Kraków, Poland
Responsible person in the EU
FISCHER POLSKA SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
Albatrosów 2
30-716 Kraków, Poland
