Fischer SXRL 10 x 200 FUS frame fixing with hex-head screw 1 pc
Product code: 00522726SZT
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Secure purchase guarantee
Product description
Fischer SXRL 10 x 200 FUS – frame fixing with screw sold individually

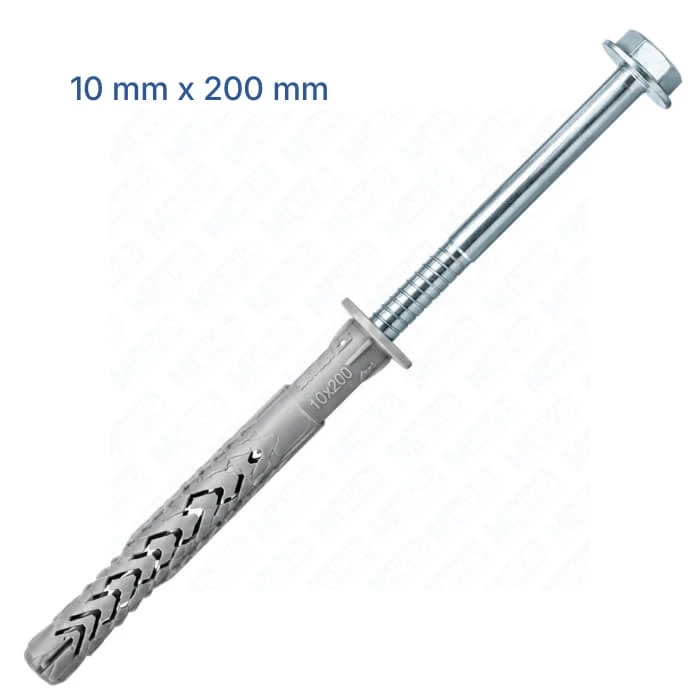

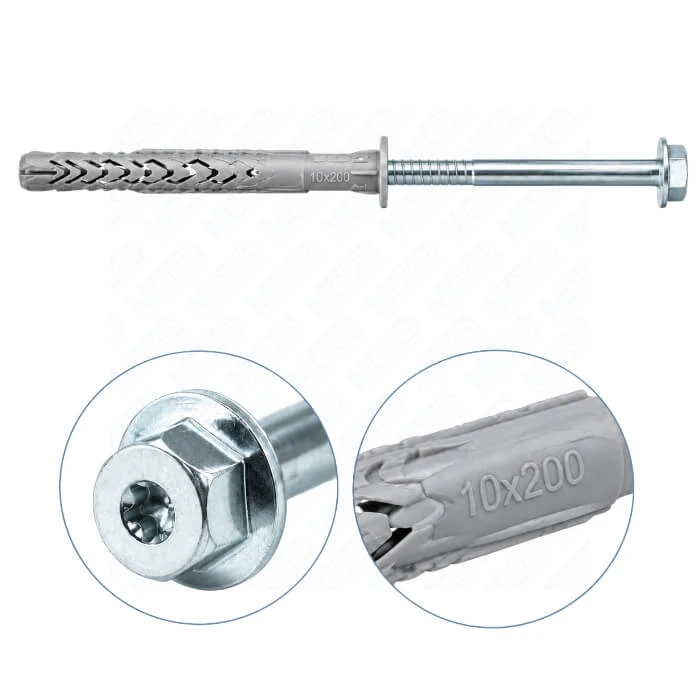

Fischer SXRL 10 x 200 FUS is a long frame fixing for push-through installation, designed for multiple fastening of non-structural systems in concrete, masonry and aerated concrete. The 10 x 200 mm version is equipped with an electro-galvanized steel screw with a hexagonal head, integrated washer and TX40 drive.
This Melkib sales variant contains 1 complete SXRL 10 x 200 FUS fixing sold individually. The product is taken from the manufacturer's factory pack containing 50 pieces.
Applications of Fischer SXRL 10 x 200 FUS
The SXRL system can be used, among other applications, for fastening façade, ceiling and roof substructures, windows, gates and doors, beams, cabinets, wall-mounted cupboards, wall claddings, metal brackets, supports and cable trays. The manufacturer recommends the hex-head version with integrated washer particularly for fastening metal components.
The European Technical Assessment covers, among other substrates, concrete from class C12/15, vertically perforated brick, aerated concrete, lightweight concrete blocks, solid and perforated sand-lime masonry units and solid brick.
How does the SXRL frame fixing work?
The fixing has two expansion zones. In hollow materials they help distribute the load evenly into the substrate, while in aerated concrete and solid building materials they combine to form one long expansion element. Longitudinal ribs help prevent the fixing from rotating during installation.
Selecting the anchorage depth
For SXRL 10 x 200 FUS, the manufacturer specifies anchorage depths of 50, 70 or 90 mm. These correspond to usable fixture thicknesses of 150, 130 and 110 mm respectively. The correct installation configuration must be selected according to the substrate, fixture thickness and the requirements of ETA-07/0121.
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | fischer |
| Model | SXRL 10 x 200 FUS |
| Manufacturer article number of the base product | 522726 |
| Drill diameter d0 | 10 mm |
| Fixing length | 200 mm |
| Minimum drill hole depth for push-through installation h2 | 210 mm |
| Usable fixture thickness at 50 mm anchorage depth | 150 mm |
| Usable fixture thickness at 70 mm anchorage depth | 130 mm |
| Usable fixture thickness at 90 mm anchorage depth | 110 mm |
| Drive / spanner size | TX40 / SW13 |
| Screw material | electro-galvanized steel |
| Installation method | push-through installation |
| Melkib sales unit | 1 pc |
| Manufacturer factory packaging | 50 pcs |
| European Technical Assessment | ETA-07/0121 |
| Declaration of Performance | DoP No. 0329 |
Storage
No specific storage conditions or storage temperature range are stated for this version in the manufacturer documentation reviewed for this description.
Selection and installation safety
The anchorage depth, fixing spacing, edge distances and permissible load must be selected in accordance with ETA-07/0121 and the relevant manufacturer load tables. Load capacity depends on the substrate and the conditions of the specific fastening.
FAQ
Is this product sold individually?
Yes. Melkib SKU 00522726SZT contains 1 complete Fischer SXRL 10 x 200 FUS fixing.
Does one piece include the screw?
Yes. One piece means a complete SXRL 10 x 200 FUS fixing with a hex-head screw, integrated washer and TX40 drive.
What drill bit is required for SXRL 10 x 200 FUS?
The manufacturer specifies a 10 mm drill hole. The minimum drill hole depth for push-through installation is 210 mm.
What is the usable fixture thickness?
At an anchorage depth of 50 mm the usable fixture thickness is 150 mm, at 70 mm it is 130 mm, and at 90 mm it is 110 mm.
Which substrates can SXRL be used in?
The ETA covers, among other substrates, concrete from class C12/15, solid brick, vertically perforated brick, aerated concrete and solid and perforated sand-lime masonry units. The detailed scope should be checked in the ETA for the specific fastening.
Is the FUS version suitable for metal components?
Yes. The manufacturer recommends the hex-head version with integrated washer particularly for fastening metal components.
