Fischer TBB stair tread fixing for concrete with 8 × 70 mm screw 50 pieces
Product code: 00060583
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Secure purchase guarantee
Product description
Fischer TBB 60583 – fixing for wooden stair treads on concrete 50 pieces
Fischer TBB is a special fixing system designed for installing wooden stair treads on concrete stair structures and other solid building materials. The flexible geometry of the nylon plug absorbs vibrations and helps reduce squeaking, improving the comfort of use of wooden stairs.

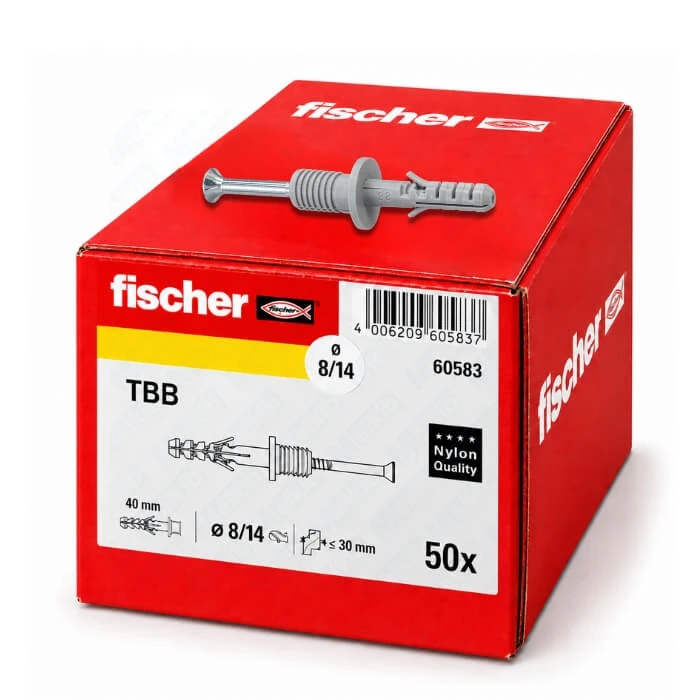

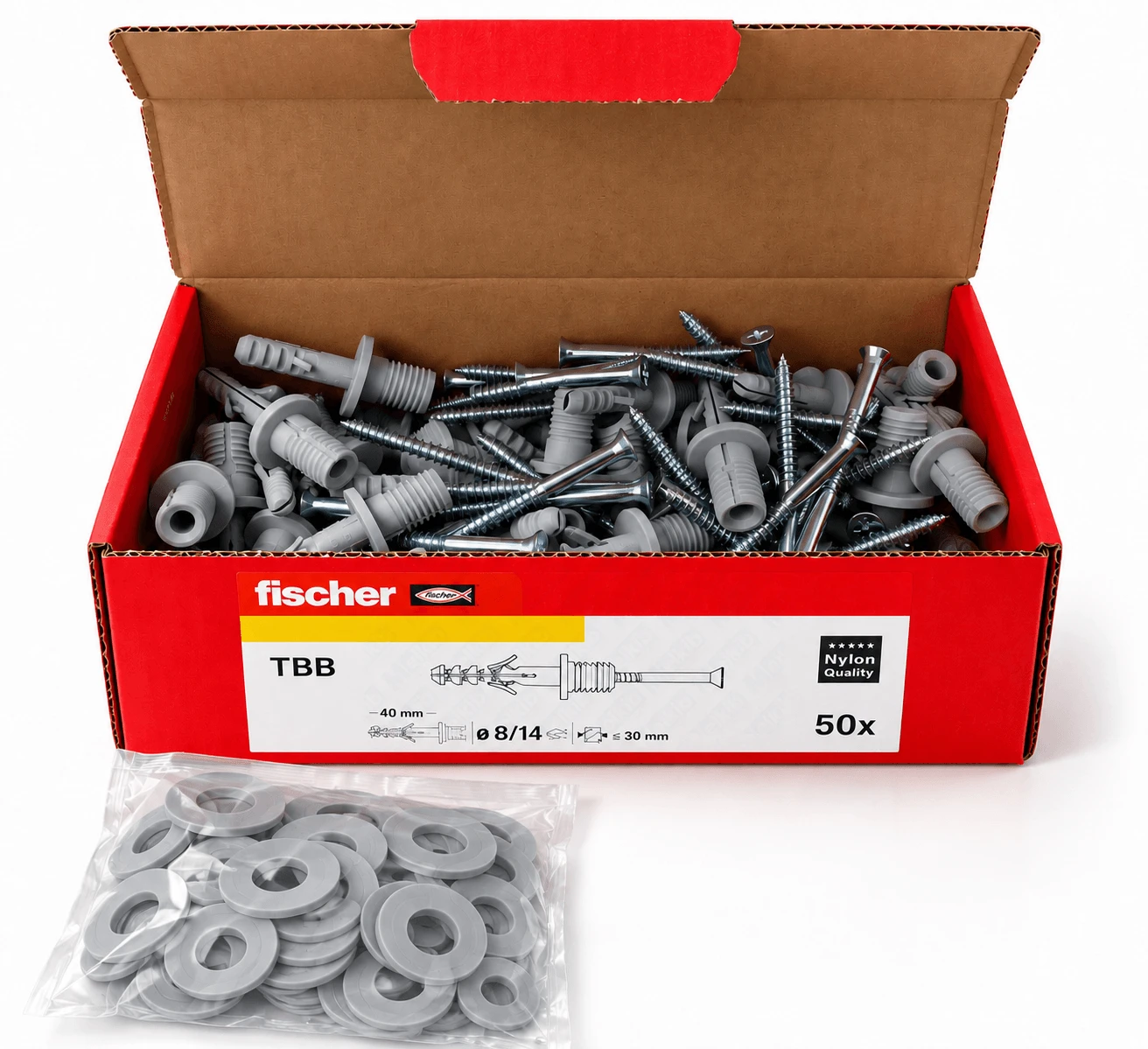

This offer includes one original factory box containing 50 Fischer TBB fixings.
What is Fischer TBB used for?
TBB is designed for fixing wooden stair treads and wooden boards thicker than 30 mm to concrete and other solid building materials. Tightening the appropriate screw causes the nylon plug to expand inside the prepared hole.
Fischer states that optimum fixing strength can be achieved with the additional use of cold-setting wood adhesive. Plastic shims from the TBB system can also be used to compensate for uneven substrates and help level the stair tread.
Key benefits
- designed for fixing wooden stair treads to concrete,
- suitable for concrete and other solid building materials,
- flexible plug geometry that absorbs vibrations,
- helps reduce squeaking noises from stair treads,
- plug made of high-quality nylon,
- possibility of levelling the stair tread with TBB system shims,
- factory pack of 50 pieces suitable for larger installations and complete staircases.
How to install Fischer TBB?
A 14 × 25 mm hole should be prepared in the wooden stair tread and an 8 × 55 mm hole in the concrete substrate. After inserting the TBB plug, tightening the screw causes the fixing to expand inside the substrate.
The system is intended for wooden stair treads and boards thicker than 30 mm. According to Fischer, optimum fixing strength can be achieved with the additional use of cold-setting wood adhesive.
Technical data – Fischer TBB 60583
| Parameter | Value |
|---|---|
| Manufacturer | fischer |
| Model | TBB |
| Manufacturer article number | 60583 |
| Product type | stair tread fixing |
| Plug material | nylon |
| Application | wooden stair treads and wooden boards >30 mm |
| Substrate | concrete and solid building materials |
| Hole in stair tread | 14 × 25 mm |
| Hole in concrete | 8 × 55 mm |
| Screw size | 8.0 × 70 mm |
| Packaging | factory box |
| Quantity | 50 pieces |
Storage
The manufacturer does not specify any special storage conditions or temperature range for this mechanical fixing.
Selection and important information
The TBB variant is intended for concrete and other solid building materials. It should not be confused with the TB variant, which is a different product designed for fixing stair treads to steel profiles. Before installation, check the substrate type, stair tread thickness and required hole dimensions.
FAQ – Fischer TBB
Is Fischer TBB suitable for concrete stairs?
Yes. TBB is designed for fixing wooden stair treads to concrete structures and other solid building materials.
How thick should the wooden stair tread be?
The manufacturer specifies the system for wooden stair treads and boards thicker than 30 mm.
What hole should be drilled in the stair tread?
A 14 × 25 mm hole is required in the wooden stair tread.
What hole should be drilled in concrete?
An 8 × 55 mm hole is required in the concrete substrate.
What screw size is used with TBB 60583?
The current manufacturer specification for article 60583 states an 8.0 × 70 mm screw.
Does TBB help reduce stair squeaking?
Yes. The flexible geometry of the plug absorbs vibrations and helps reduce squeaking noises.
How many fixings are included in this offer?
This offer includes one original factory box containing 50 Fischer TBB fixings.
