Insulating and protective varnish in spray 400ml, colorless varnish for sealing and insulation, protective coating based on acrylic resin, protection of electronics and installations, quick-drying, UV protection
Product code: 10053563
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Secure purchase guarantee
Product description

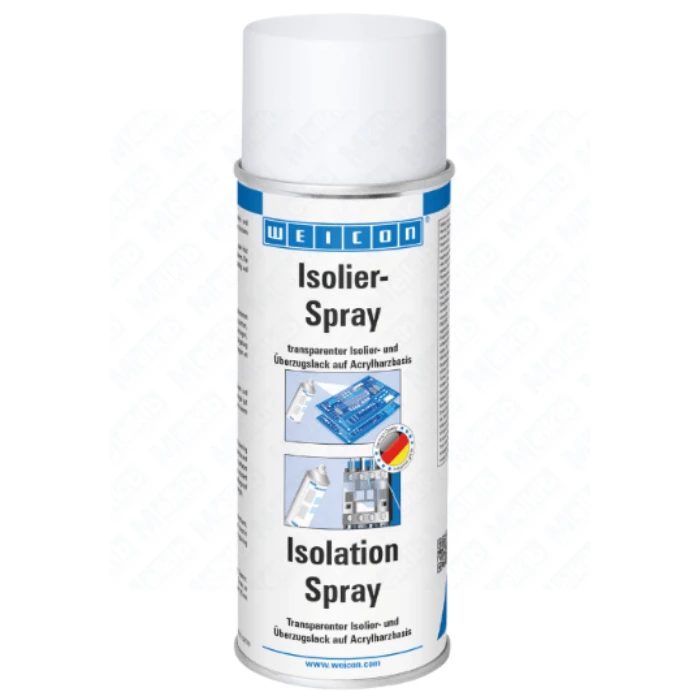

Insulating and Protective Varnish in a 400 ml Spray – Transparent Protective Coating for Sealing and Insulation
WEICON Isolation Spray is a transparent insulating varnish based on acrylic resin, which creates a durable and flexible protective coating. It adheres perfectly to metal, glass, plastics and wood, providing effective protection against moisture, oils, chemicals and UV radiation. The product is characterized by high dielectric strength, making it ideal for protecting electronic components, circuit boards and electrical connections. Additionally, it can be used as a sealant for repairing the insulation of electric motors and windings.
Key product features
- High dielectric strength - protection of electrical components against overvoltages
- Resistance to moisture and weather conditions - ideal for indoor and outdoor applications
- Excellent adhesion - for metal, glass, plastic and wood
- UV resistance - prevents material degradation under the influence of sunlight
- Resistance to acids, oils and alkalis - long-term protection against chemicals
- Quick-drying formula - drying time is about 15 minutes
- Universal use - electrical engineering, automotive, mechanics and many other industries
Application
Insulating and protective varnish is used in many industries, including:
- Protecting electrical connections and printed circuit boards
- Protecting electronic components against corrosion and moisture
- Insulating wires and coils in electric motors
- Sealing and maintaining switchboards and switches
- Creating a flexible, transparent protective layer on metal surfaces
- Protecting electrical installations in harsh environmental conditions
Technical data
| Parameter | Value |
|---|---|
| Base | Modified resin acrylic |
| Color | Colorless |
| Odor | Solvent |
| Dielectric strength | 67.8 kV/mm (DIN EN 60243) |
| Thermal resistance | -40°C to +120°C |
| UV resistance | Yes |
| Resistance to oils and chemicals | Yes |
| Density | 0.848 g/cm³ |
| Solids content | 50% |
| Consumption | 2-3 ml/m² |
| Drying time | 15 minutes |
| Cross cut | GT 0-1 (DIN 53151/ISO 2409) |
| Conductivity thermal | 0.215 W/m·K (DIN EN ISO 821) |
| Shelf life | 24 months |
| Volume | 400 ml |
How to use
For the best insulation and protection, follow these steps:
- Clean and degrease the surface thoroughly with WEICON Surface Cleaner
- Make sure the surface is dry, clean and free of dust
- Shake the can for a few seconds until you hear a ball sound mixing
- Apply evenly at room temperature (+20°C) from a distance of about 25 cm
- Leave to dry for about 15 minutes
- If necessary, apply additional layers for increased protection
Storage and precautions
To ensure long-term effectiveness and safe use of the product, follow these rules:
- Store in a dry and well-ventilated place
- Protect from direct sunlight
- Do not store above +50°C
- Do not pierce or burn empty containers
- Avoid contact with open flames and sources of heat
Insulating and protective varnish in spray 400 ml is a versatile and reliable solution for protecting and sealing electronic components, mechanical and electrical installations. Thanks to its high dielectric strength and resistance to atmospheric factors, it provides long-term protection in all conditions.
