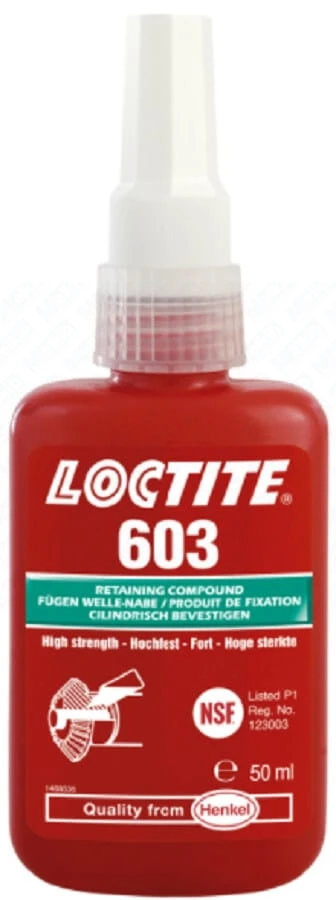

Loctite 603 50 ml green anaerobic adhesive for mounting bearings and coaxial parts, high strength, low viscosity, high oil tolerance
Product code: 246648
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Select product variant:
Individual variants may differ in price
Secure purchase guarantee
Product description
LOCTITE 603 50 ml is a one-component, low-viscosity anaerobic retaining compound for close-fitting cylindrical assemblies. It cures in the absence of air between metal surfaces, preventing loosening and leakage caused by shock and vibration.
Advantages and unique features
- High strength after cure – reliable mounting of bearings, sleeves and bushings.
- Low viscosity – wicks into tight gaps, including post-assembly.
- Performs even on less-than-perfectly clean metal surfaces.
- Green colour with UV fluorescence for inspection.
Properties and applications
- Applications: retaining bearings, sleeves and shafts; preventing fretting and micro-movement.
- Assembly: clean/degrease, apply to shaft and/or housing, assemble; use activator if faster cure is required.
- Disassembly: heat locally to about 250 °C and dismantle while hot.
Technical data
| Parameter | Value |
|---|---|
| Technology / chemistry | Acrylic (urethane dimethacrylate) |
| Colour / appearance | Green, UV fluorescent |
| Viscosity (25 °C) | approx. 100–150 mPa·s |
| Specific gravity | ~1.1 g/cm³ |
| Cure type | Anaerobic (metal–metal) |
| Application | Retaining of cylindrical parts |
| Shear strength (steel, 24 h) | ≥ 22.5 N/mm² |
| Chemical resistance | excellent to motor oil; good to fuels, water/glycol and alcohols |
| Storage | optimal +8…+21 °C; avoid <+8 °C or >+28 °C |
| Registration | NSF P1 (no food contact) |
Storage recommendations
Store tightly closed in the original container, in a cool, dry place. Prevent contamination; do not return dispensed material to the bottle.
FAQ
1) What is LOCTITE 603 used for?
Retaining bearings, sleeves and bushings in close-fitting housings.
2) Does it work on stainless steel?
Yes; use an activator if cure speed is slow.
3) How to disassemble?
Heat the joint to about 250 °C and dismantle while hot.
Product features
- Maximum Operating Temperature in °C 150
- Color Green
- Minimum Operating Temperature in °C -55
- Adhesive type Methacrylate
- Setting / skin formation time 8 min.
- Strength High
- Fluorescence Yes
Product safety
Manufacturer
Henkel Polska Sp. z o.o.
Domaniewska 41
02-672 Warszawa, Poland
Responsible person in the EU
Henkel Polska Sp. z o.o.
Domaniewska 41
02-672 Warszawa, Poland
