Loctite 97115 Electric Rotorspray ErgoLOC pen valve, pneumatic valve for dispensing adhesives, sealants, pastes, precise dispensing, dispensing system
Product code: 135557
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Secure purchase guarantee
Product description

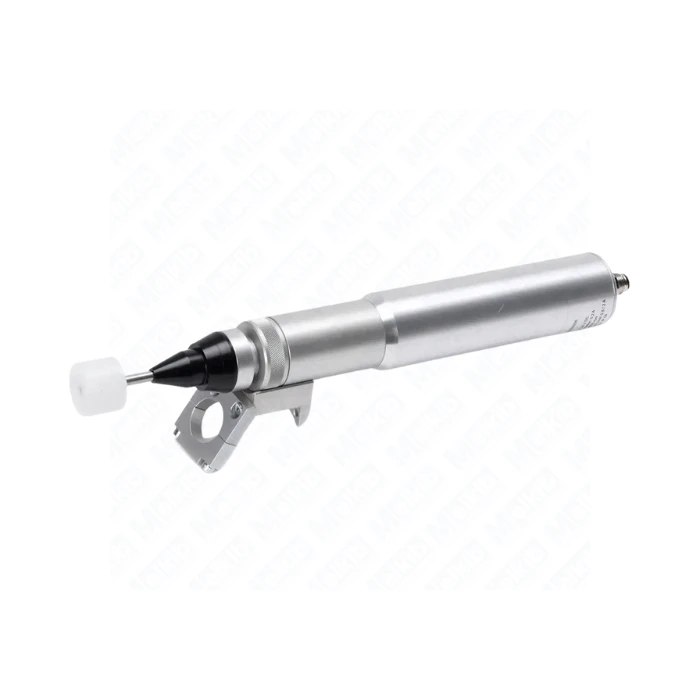

Loctite 97115 ErgoLOC Pen Valve, pneumatic valve for dispensing adhesives, sealants, pastes, precise dispensing, dispensing system, PTFE, adjustable seat valve
The Loctite LV Handheld Applicator - known as the Loctite ErgoLOC "pen" valve - is a pneumatically controlled, adjustable seat valve designed to work in pressure-time dispensing systems. The device is dedicated to the application of adhesives, sealants and low-viscosity pastes, including cyanoacrylates. Thanks to the use of materials such as PTFE, with a body and stem made of this material, it prevents premature curing of the product. The system enables the delivery of very small drops (down to 0.005 g), which ensures high dosing precision even with products with viscosities below 10,000 cP.
Features
- Dispenses low-viscosity cyanoacrylates and anaerobic agents (below 10,000 cP)
- Slim, ergonomic design reduces hand fatigue
- Forward closure prevents air entrapment and premature adhesive curing
- Adjustable stroke allows for precise adjustment of dispensing characteristics (drops down to 0.005 g)
- Easy repair and replacement of components exposed to wetting
- PTFE body and stem, which protects against premature curing product
Application
- Ideal for precise and constant dosing of adhesives, sealants and low viscosity pastes
- It will work well in industrial and laboratory applications where high dosing repeatability is required
- Possibility of integration with pressure-time dosing systems and compatibility with various controllers
Technical parameters
| Parameter | Value |
|---|---|
| Viscosity range of dosed products | Below 10,000 cP |
| Minimum droplet size | 0.005 g |
| Body and stem material | PTFE |
| Working pressure range | For example 4 psi (0.25 bar) – 30 psi (2 bar) |
| Dimensions (L x W x H) | Approx. 120 x 60 x 50 mm |
| Device weight | approx. 300 g |
| Compatibility | Pressure-time dispensing systems |
Storage recommendations
- Store the device in a dry and clean place, away from direct sunlight and extreme temperatures
- Before long-term storage, make sure the device is thoroughly cleaned of glue residue
- It is best to store it in its original packaging or in a special protective case to protect it from mechanical damage
Product safety
Manufacturer
Henkel Polska Sp. z o.o.
Domaniewska 41
02-672 Warszawa, Poland
Responsible person in the EU
Henkel Polska Sp. z o.o.
Domaniewska 41
02-672 Warszawa, Poland
