Product description

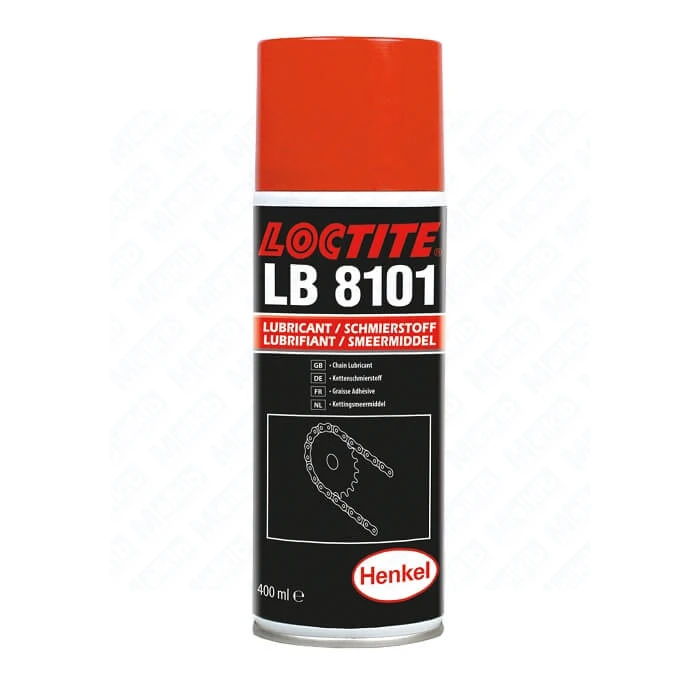

LOCTITE LB 8101 400 ml is an adhesive spray lubricant for open mechanical systems—chains, open gears, worm screws and cables/wires. The mineral-oil formulation with lithium soap and EP additives builds a durable lubricating film that resists water ingress and high loads, and it is designed to withstand centrifugal forces on high-speed mechanisms.
Benefits and unique features
- Adhesive film – reduces fling-off on fast-running chains
- EP additives – excellent wear and load resistance (4-ball weld load > 3,900 N)
- Water protection – helps prevent water ingress into the mechanism
- Operating range -30 °C to +170 °C, short peaks up to ~200 °C
- Convenient spray application – fast and even coverage
Properties and applications
- Chains and sprockets: lubrication at high peripheral speeds
- Open gears, lead screws and worm drives: friction and noise reduction
- Cables and wires: improved sliding plus protection against corrosion and water
- MRO and service: industry, automotive, agriculture, conveying equipment
- How to use: shake; spray from 15–20 cm onto clean parts; avoid over-lubrication
Technical parameters
| Parameter | Value |
|---|---|
| Net content | 400 ml |
| Technology / type | Oil & grease; mineral oil, lithium soap, EP additives |
| Colour / odour | Amber / oily |
| Form / application | Aerosol (spray); propellant propane/butane |
| NLGI grade | 2 (ISO 6743-99) |
| Worked penetration (25 °C, 60 strokes) | 265–295 (1/10 mm) |
| Drop point | > 250 °C (ISO 2176) |
| 4-ball test – weld load | > 3,900 N |
| Wear scar at 3,900 N | < 4 mm |
| Wear (1 h / 400 N) | 0.6 mm |
| EMCOR (ISO 11007) | 0/0 |
| Operating range | -30 °C to +170 °C (peaks ~200 °C) |
| Can pressure (20 °C) | 3 bar |
| Spray delivery rate | 1.9 g/s |
| Typical substrates | Chains, open gears, worm screws, cables/wires |
Storage recommendations
Classified as highly flammable. Store in the original, tightly closed container in a dry place, away from oxidising agents and combustible materials. Optimal storage: 8–21 °C; storage below 8 °C or above 28 °C may adversely affect properties. Do not pierce or burn the can; do not spray onto open flame or glowing materials.
FAQ
1) Typical uses of LOCTITE LB 8101?
Lubricating chains, open gears, worm drives and cables/wires exposed to water and high loads.
2) Suitable for high-speed operation?
Yes—formulated to resist centrifugal forces on fast-running mechanisms.
3) Temperature range?
-30 °C to +170 °C, short peaks around 200 °C.
4) How to apply?
Shake, spray from 15–20 cm onto clean parts, avoid over-lubrication.
5) Use with oxygen/oxidisers?
Not recommended for pure oxygen systems or with strong oxidising agents.
Product features
- Maximum Operating Temperature in °C 170
- Color Przejrzysty bursztynowy
- Minimum Operating Temperature in °C -25
- Adhesive type Mineral oil
