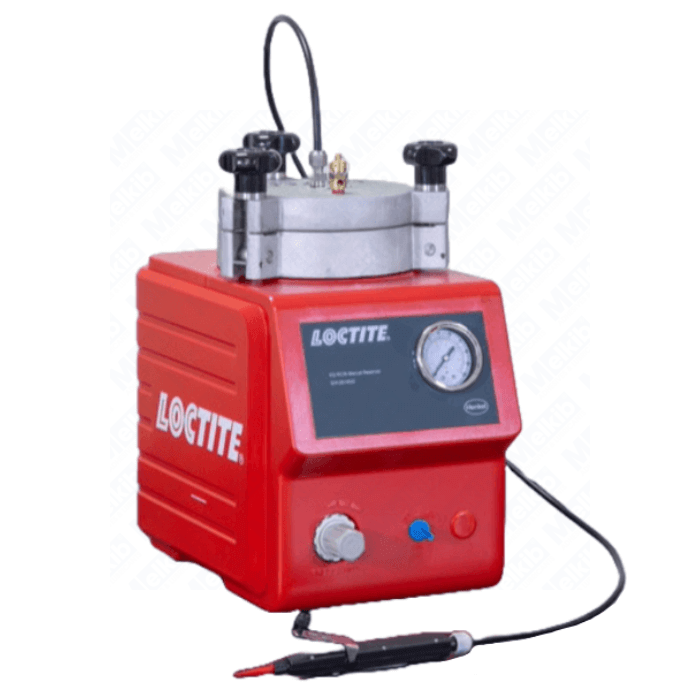

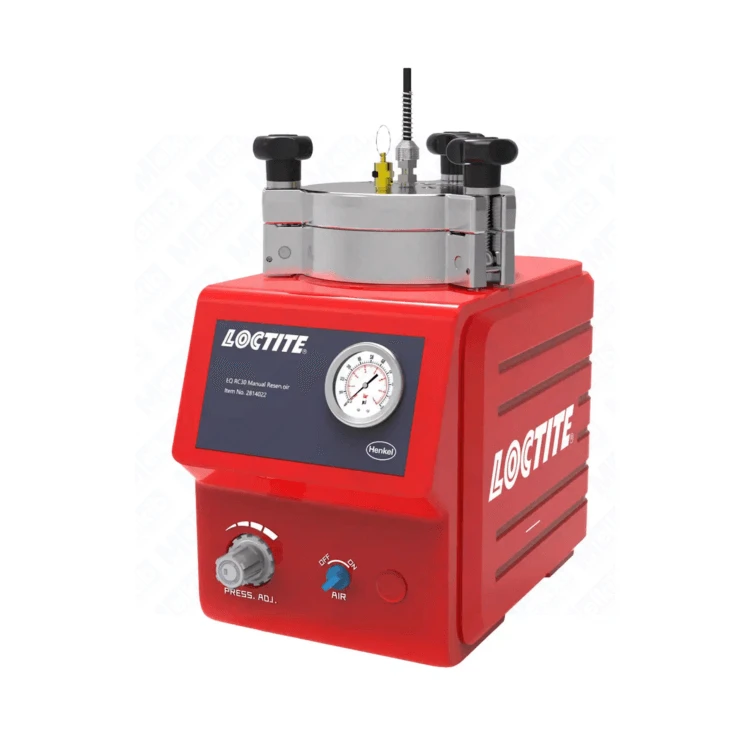

LOCTITE RC30 precise, manual reservoir for dispensing adhesives, lubricants and chemicals

LOCTITE RC30 Manual Reservoir is a modern, fully pneumatic dispensing tank, designed for precise application of various types of adhesives - anaerobic, UV-cure and cyanoacrylate. The device is dedicated to applications in workshops, laboratories and industrial installations, where not only accuracy is required, but also high reliability and safety of work. Thanks to its intuitive interface, built-in low-level sensor and pressure regulator, the product enables easy and controlled dispensing of glue from different packages.

Advantages and unique features

• Ergonomic design for ease of use
• Built-in low-level sensor for precise control of the dispensing process
• Pressure regulator in the range of 0-7 bar (0-100 psi) guaranteeing optimal operating parameters
• Easy-to-read pressure gauge
• Compatibility with different adhesive packages: 250 ml, 500 g, 1 liter, 2 kg
• Fully pneumatic operating system for increased operational reliability
• Resistance to aggressive chemicals

Product application

• Adhesive dispensing in assembly and production
• Application of lubricants and other chemical substances in industrial installations
• Use in laboratories and workstations for manual dosing
• Process automation systems requiring precise dosing control
• Applications in service and production workshops

Technical parameters

Integrated Handheld Tank Includes:

• Operating Instructions
• Reservoir Connector: ¼" NPT x ¼" Tubing
• Bottle/Tube Holder
• Anti-Bubble Fittings and Tubing Kit
• ¼" NPT to 6mm Supply Line Connector

Optional Accessories and System Components (Sold Separately):

• Stationary Dispense Valve (1/4" Supply Line) - Item #97113
• Stationary Dispense Valve (3/8" Supply Line) - Item #97114 (IDH88645)
• Light Cure Dispensing Valve - Item #98009
• Cyanoacrylate Dispensing Valve - Item #98013
• LV Handheld Applicator - Item #97130
• LV Handheld Applicator - Item #97111

Recommended Spare Parts/Accessories:

• Air Filter/Regulator, EU/Asia Region - Item #97120
• Reservoir Fitting: ¼ in. NPT x ¼ in. Tubing - Item #8900064
• Power Cord, ¼ in. O.D. with black PE lining, length 10 m - item no. 97972
• Reservoir cover O-ring - item no. 981880
• Pressure safety valve - item no. 992641
• Set (2 adapters and 2 sleeves) - item no. 984687
• Silicone grease, 6 g tube - item no. 997569

Storage recommendations

To ensure long-term reliability and optimum performance of the LOCTITE RC30 Manual Reservoir, we recommend:

• Storing the device in a dry and cool place, away from direct sunlight and sources of heat.
• Avoid exposure to aggressive substances that may damage the material tank.
• Securing the product in its original packaging or in a suitably protected place to avoid mechanical damage.
• Regular inspection and maintenance in accordance with the manufacturer's instructions, especially after a long period of non-use.
