MIXPAC F-System 490 ml 10:1 PBT white 2K cartridge with plungers
Product code: MB-0550
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Secure purchase guarantee
Product description

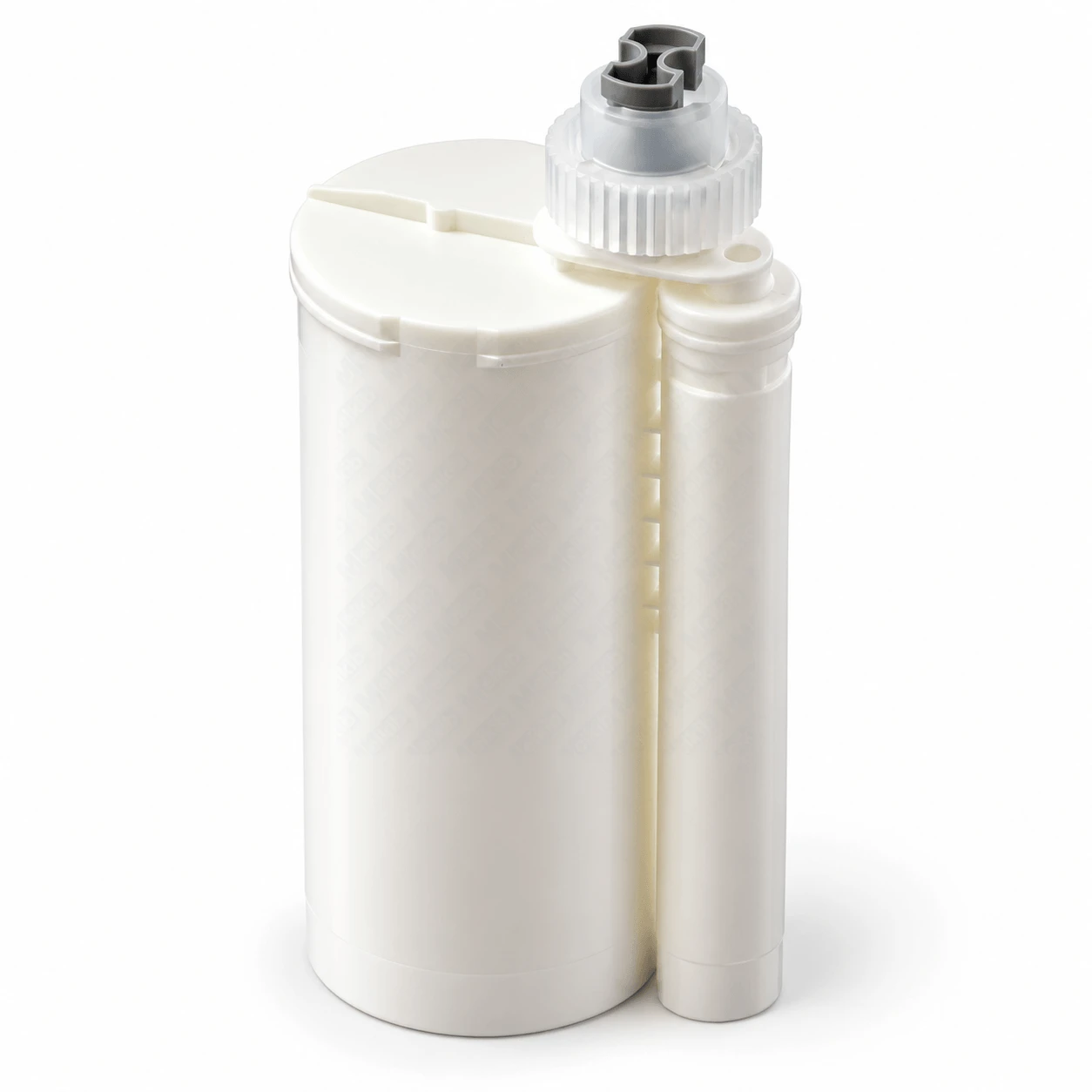

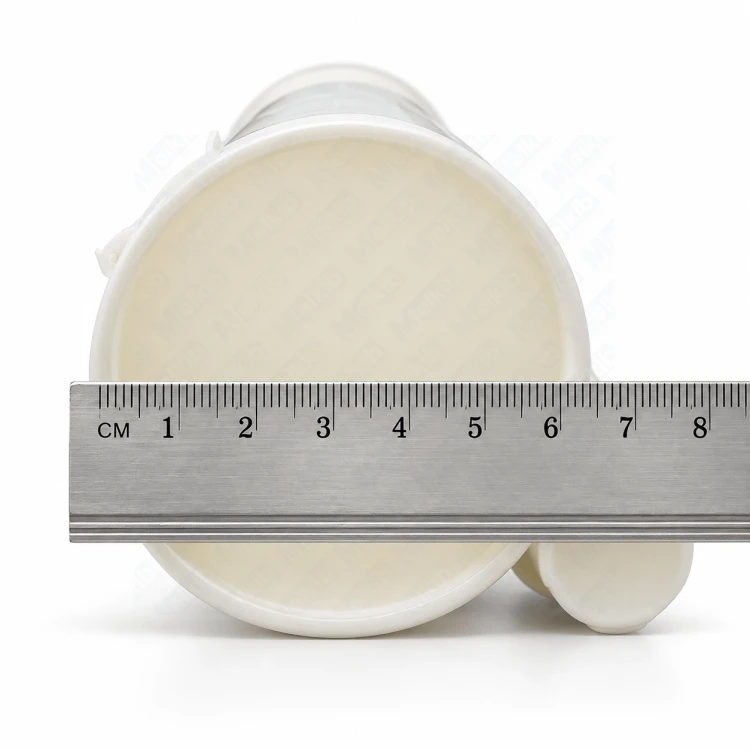

MIXPAC F-System 490 ml 10:1 2K cartridge with plungers
MIXPAC F-System 490 ml 10:1 is a dual-chamber cartridge designed for storing and dispensing two-component adhesives, resins and other 2K materials used at a 10:1 mixing ratio. The cartridge body is made of white PBT and the set includes two matching plungers.
Applications
The cartridge is intended for two-component materials that require the individual components to be stored separately and dispensed at a 10:1 ratio. It can be used for adhesive bonding, sealing and resin dispensing processes in production, assembly, servicing and workshop applications.
Before filling the cartridge, make sure that the chemical product being used is compatible with the PBT cartridge material and with the other components of the dispensing system.
Key features
- dual-chamber system for 2K products,
- 10:1 dispensing ratio,
- nominal capacity of 490 ml,
- MIXPAC F-System design,
- PBT cartridge body,
- white cartridge colour,

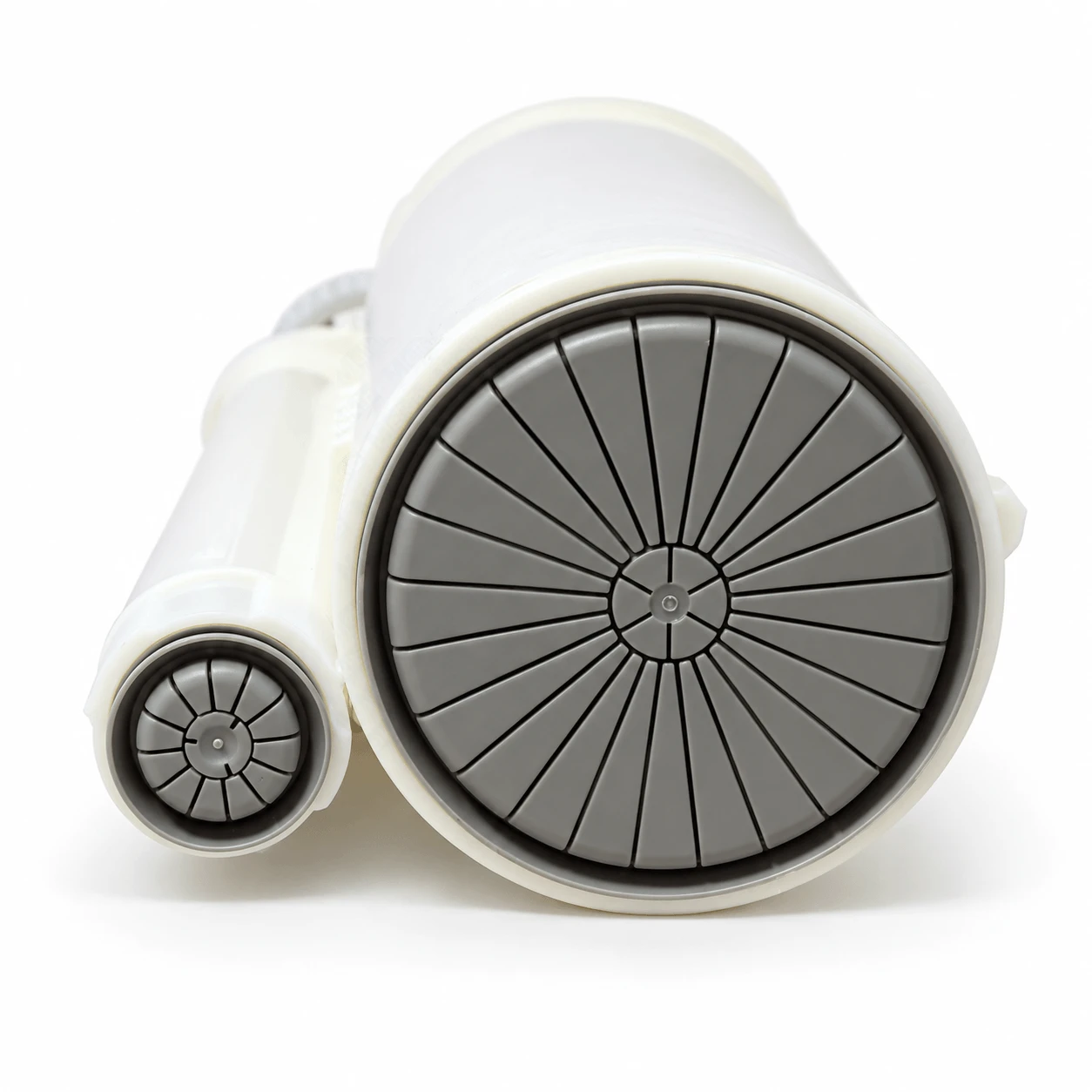

- two plungers included,
- designed for use with compatible F-System dispensers and static mixers.
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | MIXPAC / medmix |
| System | F-System |
| Type | dual-chamber 2K cartridge |
| Capacity | 490 ml |
| Mixing ratio | 10:1 |
| Cartridge material | PBT |
| Cartridge colour | white |
| Plunger material | PA |

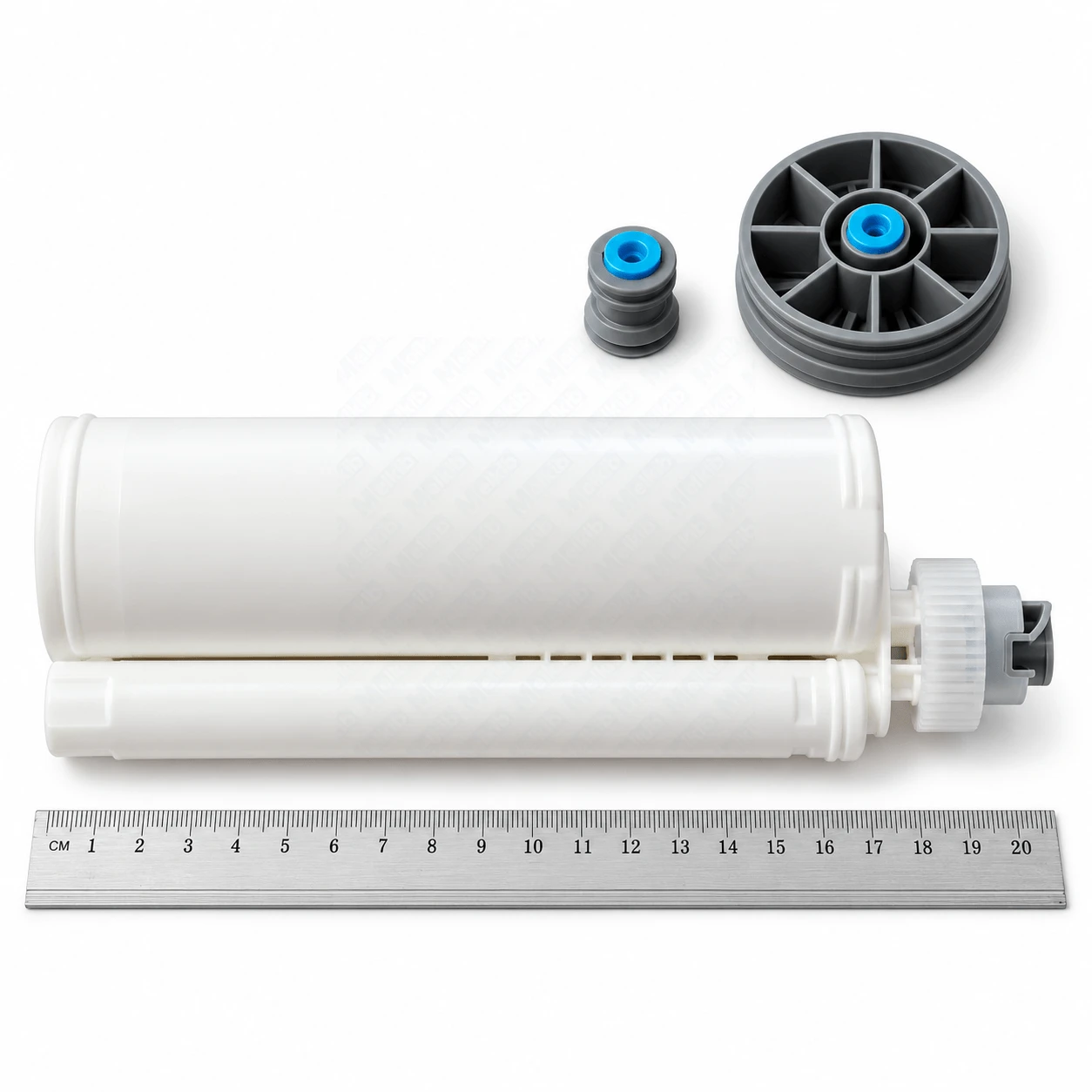

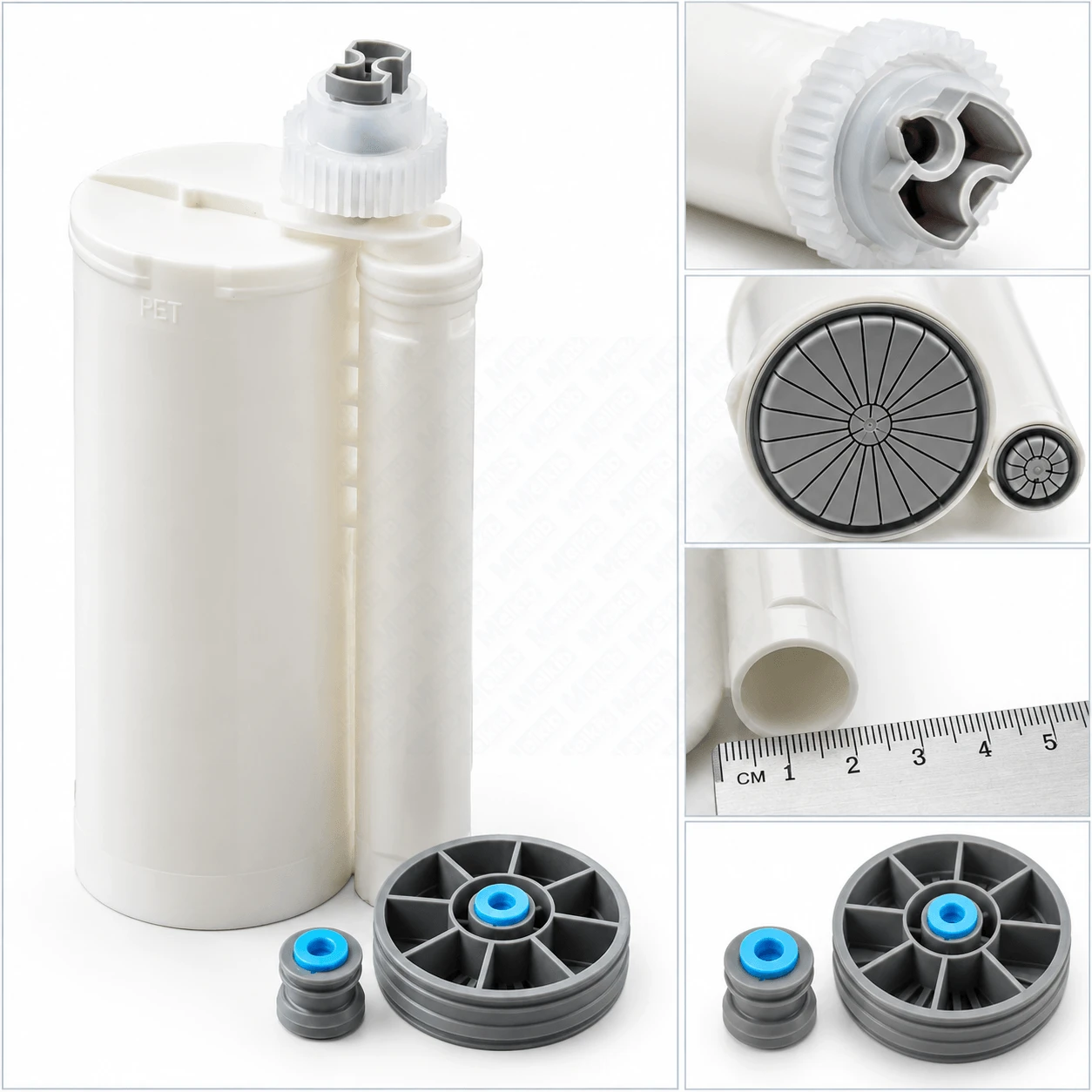

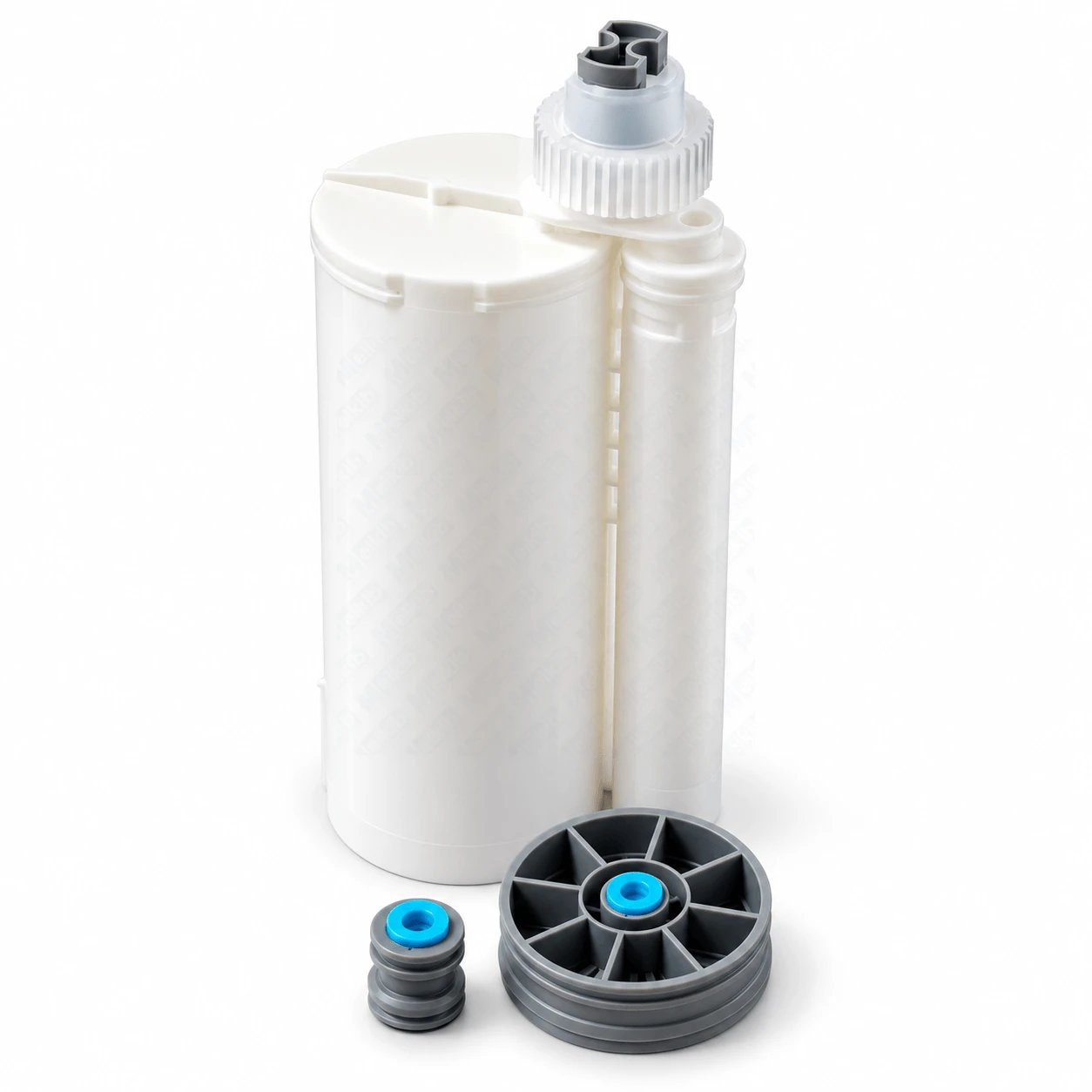

| Set contents | cartridge + 2 plungers |
Storage
Store in a clean and dry place, protected against contamination and mechanical damage. Before filling, verify the material compatibility of the cartridge with the substance to be dispensed.
Selecting compatible accessories
The cartridge should be used with a dispenser designed for the appropriate F-System 10:1 configuration and with a compatible static mixer. A 10:1 ratio alone is not sufficient when selecting a dispensing gun – the cartridge format and mounting geometry must also be compatible.
FAQ
Are the plungers included with the cartridge?
Yes. The set contains one dual-chamber cartridge and two matching plungers.
What mixing ratio is this cartridge designed for?
The cartridge is designed for two-component materials dispensed at a 10:1 ratio.
What material is the cartridge made of?
The cartridge body is made of PBT.
Can this cartridge be used with every two-component adhesive?
No. Before filling, check the chemical compatibility of the adhesive or resin with PBT and with the remaining components of the dispensing system.
Can I use any 10:1 dispensing gun?
No. The dispenser must be compatible not only with the 10:1 ratio but also with the format and design of the MIXPAC F-System cartridge.
Does the cartridge require a static mixer?
When both components are intended to be mixed directly during dispensing, use a suitable static mixer that is compatible with the system.
