MIXPAC F-System 490 ml 10:1 PP white 2K cartridge with plungers
Product code: MB-0551
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Secure purchase guarantee
Product description

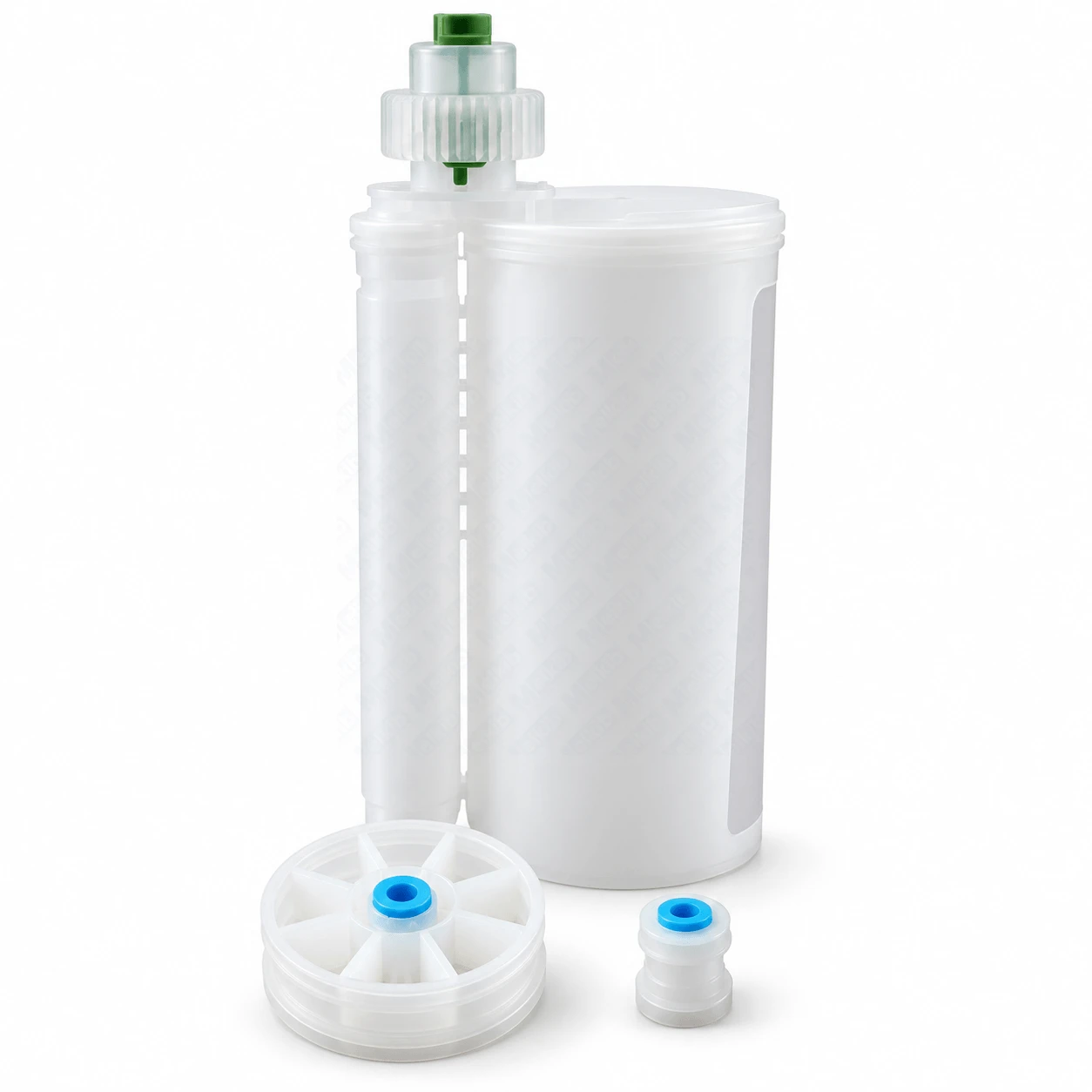

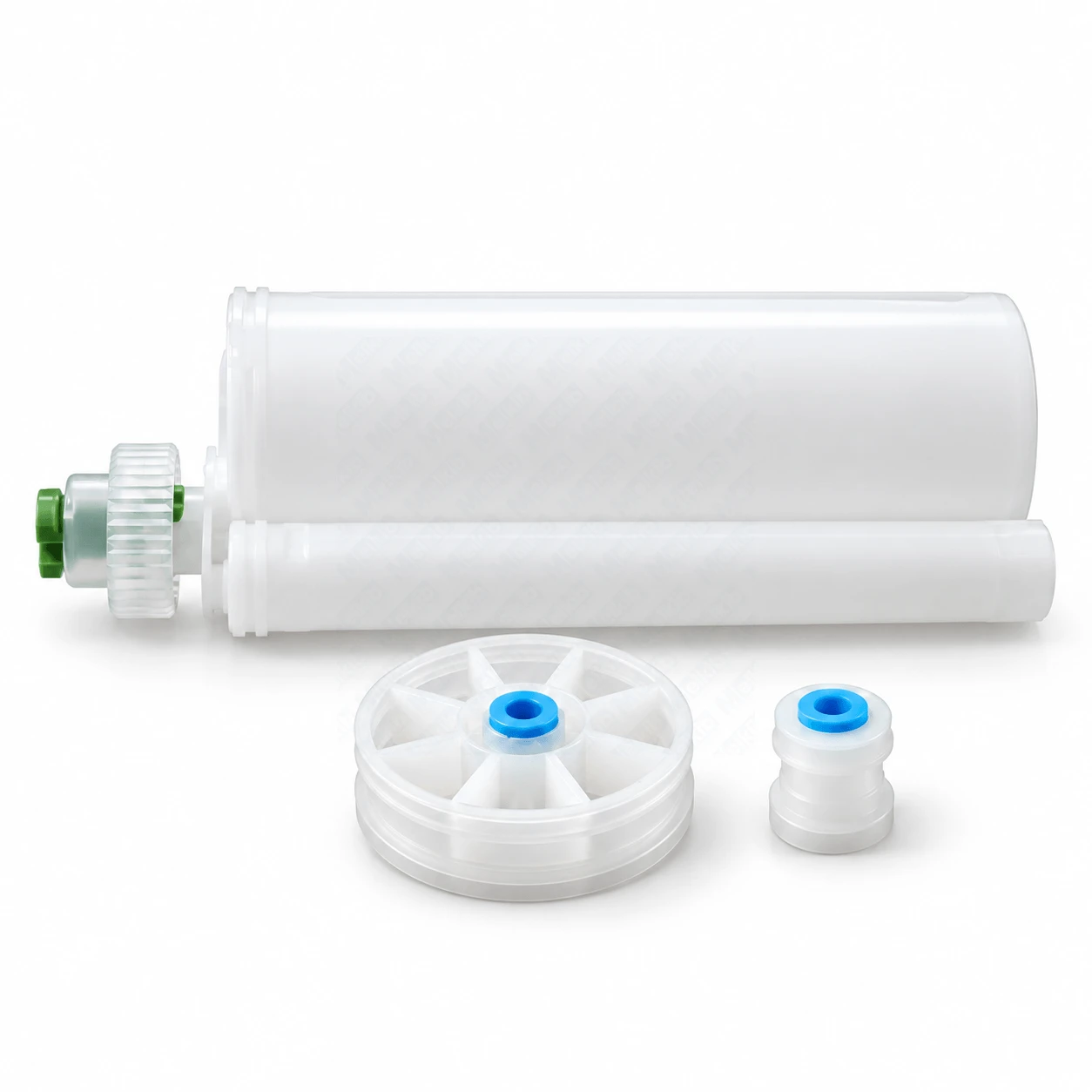

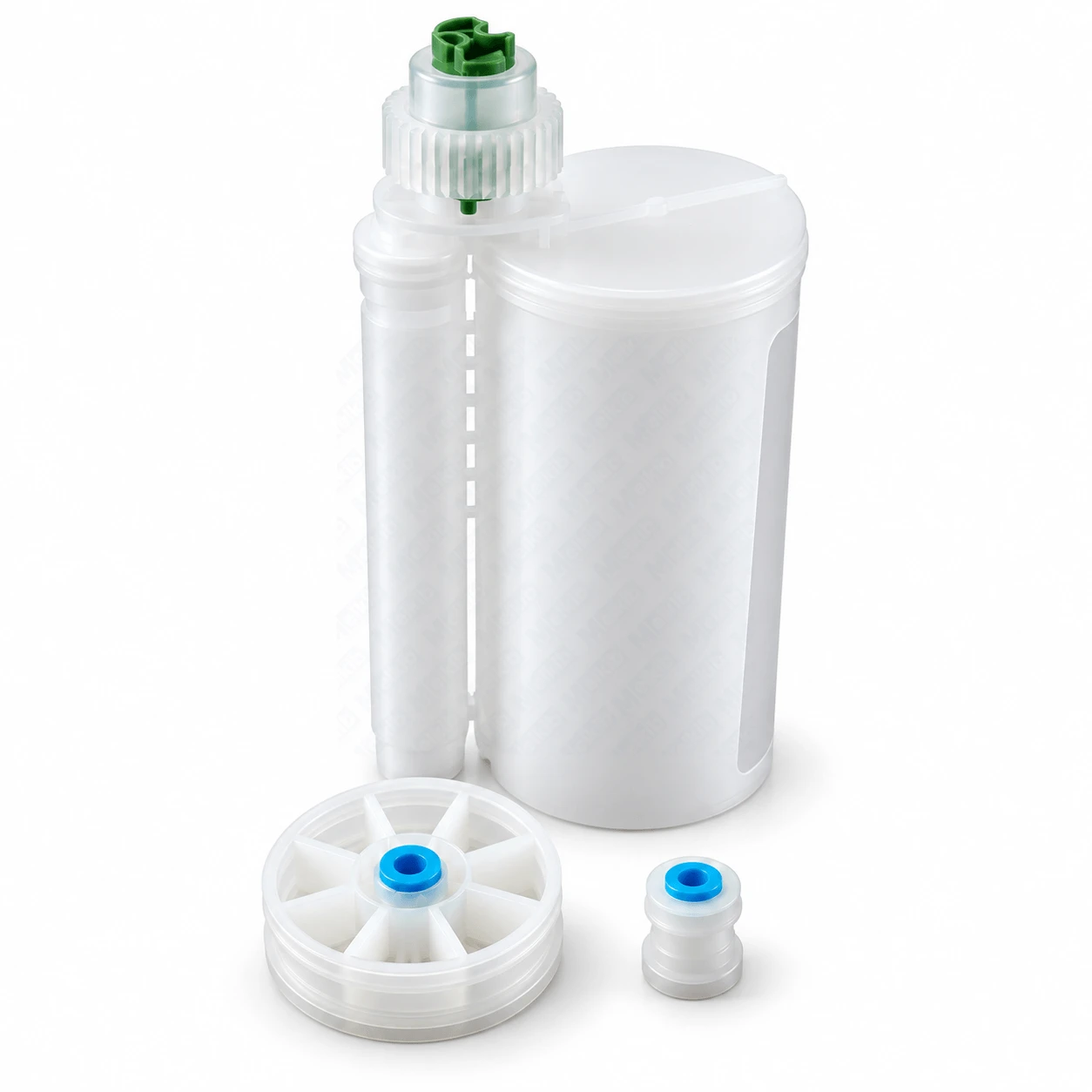

MIXPAC F-System 490 ml 10:1 PP 2K cartridge with plungers
MIXPAC F-System 490 ml 10:1 is a dual-chamber cartridge designed for storing and dispensing two-component adhesives, resins and other 2K materials at a 10:1 ratio. The cartridge body is made of white polypropylene (PP), and the set includes two matching self-venting PP plungers.
Applications
The cartridge is intended for two-component materials whose components must be stored separately and dispensed at a 10:1 ratio. It is suitable for adhesive, sealant and resin dispensing systems used in production, assembly, servicing and workshop applications.
Before filling the cartridge, check the chemical compatibility of the dispensed material with polypropylene (PP) and with the remaining components of the dispensing system.
Key features
- dual-chamber system for 2K products,
- 10:1 dispensing ratio,
- 490 ml capacity,
- MIXPAC F-System,
- PP cartridge body,
- white cartridge colour,

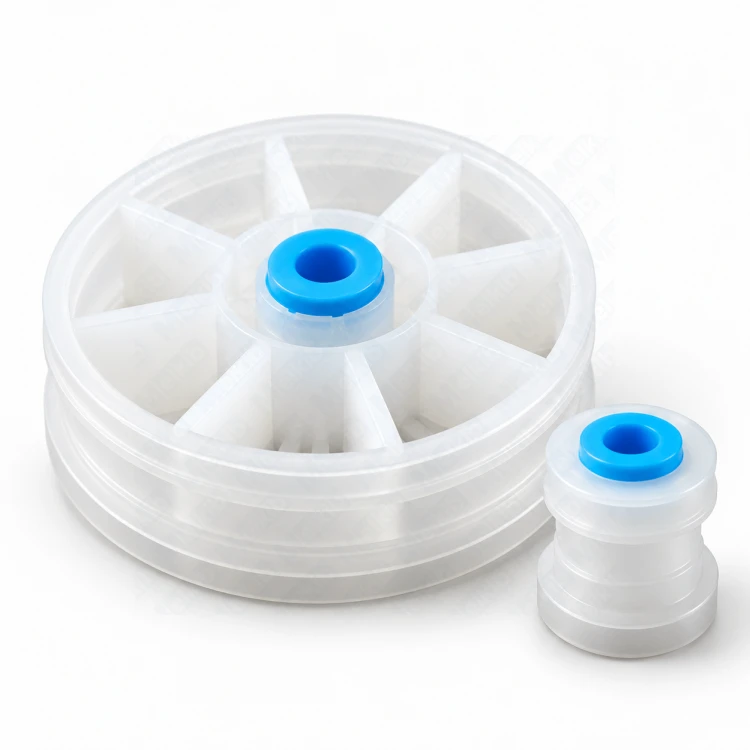

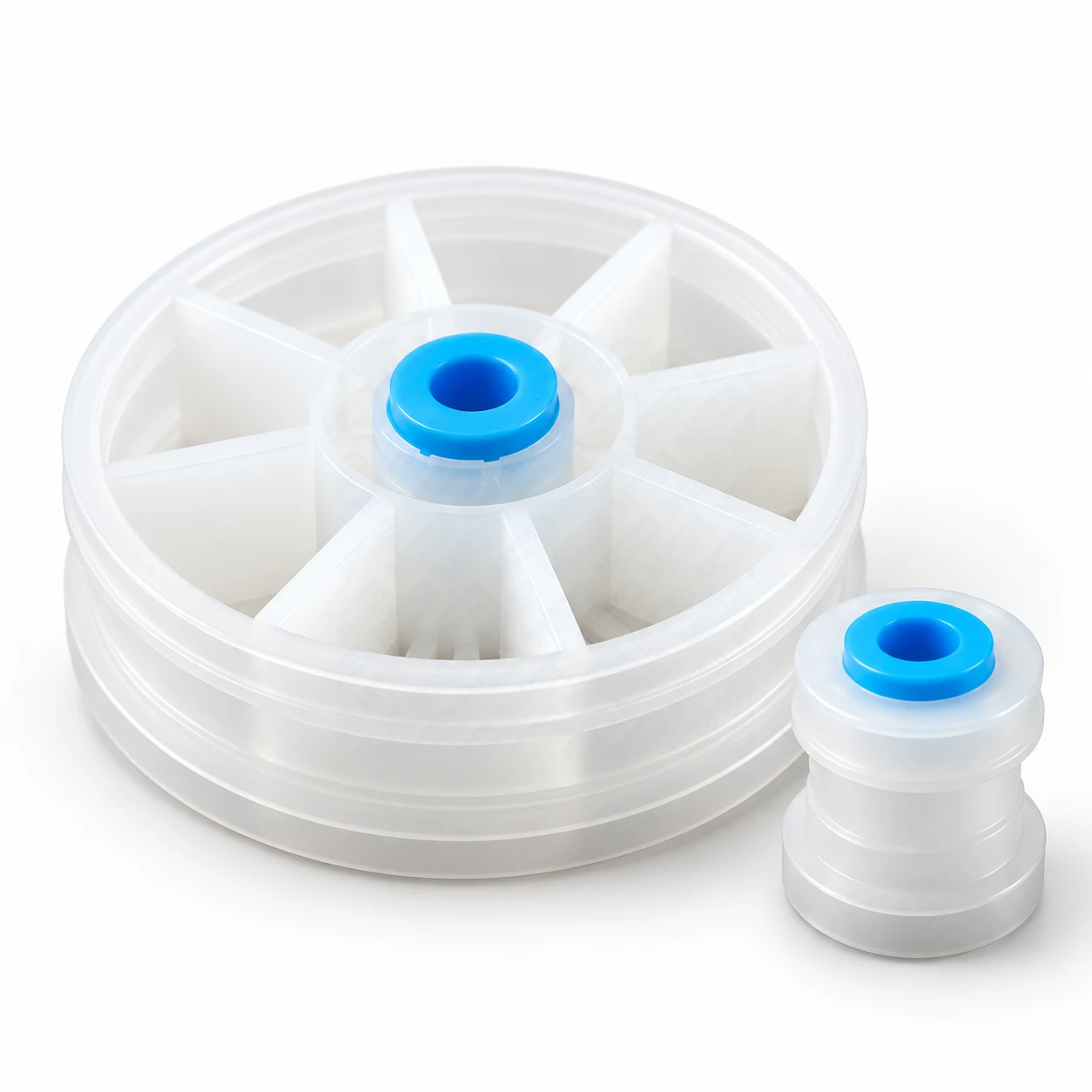

- two self-venting PP plungers included,
- designed for use with compatible F-System dispensers and static mixers.
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | medmix Switzerland AG / MIXPAC |
| System | F-System |
| Model | AF 400-10-10-01 |
| Manufacturer article number | 113745 |
| Type | dual-chamber 2K cartridge |
| Capacity | 490 ml |
| Mixing ratio | 10:1 |
| Cartridge material | PP |
| Cartridge colour | white |
| Plunger material | PP |
| Plunger type | self-venting |
| Length | 185 mm |
| Chamber A diameter | 66 mm |
| Chamber B diameter | 24 mm |
| Set contents | cartridge + 2 plungers |
Storage
Store in a clean and dry place, protected against contamination and mechanical damage. Before filling the cartridge, verify the material compatibility with the substance to be dispensed.
Selecting compatible accessories
The 10:1 F-System configuration is designed for use with compatible MIXPAC dispensers from the DM, DP and DB series and static mixers suitable for the 4:1/10:1 F-System configuration, including the MFHX and MFQX series. Always verify the compatibility of the specific dispenser and mixer with the F-System 490 ml 10:1 cartridge before use.
FAQ
Are the plungers included?
Yes. The set includes one dual-chamber cartridge and two matching PP plungers.
What dispensing ratio is this cartridge designed for?
The cartridge is designed for two-component materials dispensed at a 10:1 ratio.
What material is the cartridge made of?
The cartridge body is made of polypropylene (PP).
How does this version differ from the PBT version?
This version has a PP cartridge body and PP plungers. The PBT version uses a different cartridge material and should be selected according to the chemical compatibility requirements of the dispensed product.
Can any 10:1 dispensing gun be used?
No. The dispenser must be compatible both with the 10:1 ratio and with the format and design of the MIXPAC F-System 490 ml cartridge.
Which static mixers are compatible with this system?
The manufacturer provides mixers for the F-System 4:1/10:1 configuration, including the MFHX and MFQX series.
