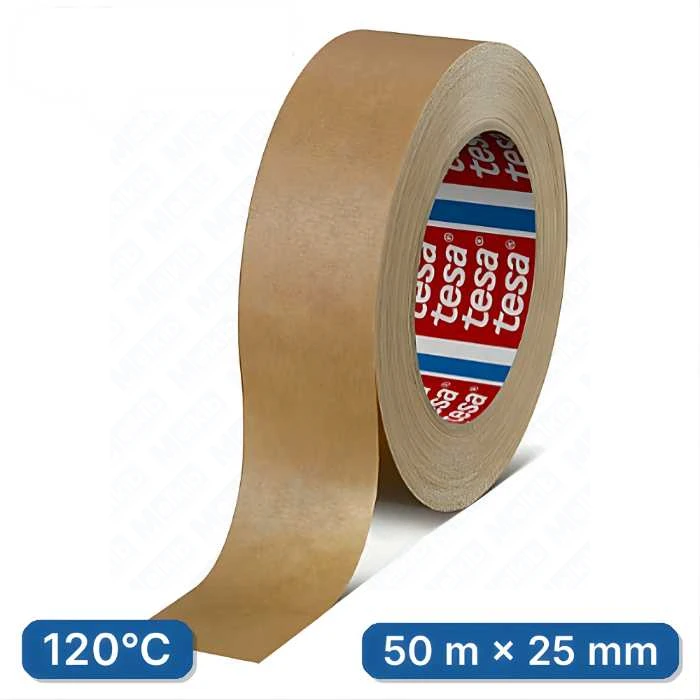

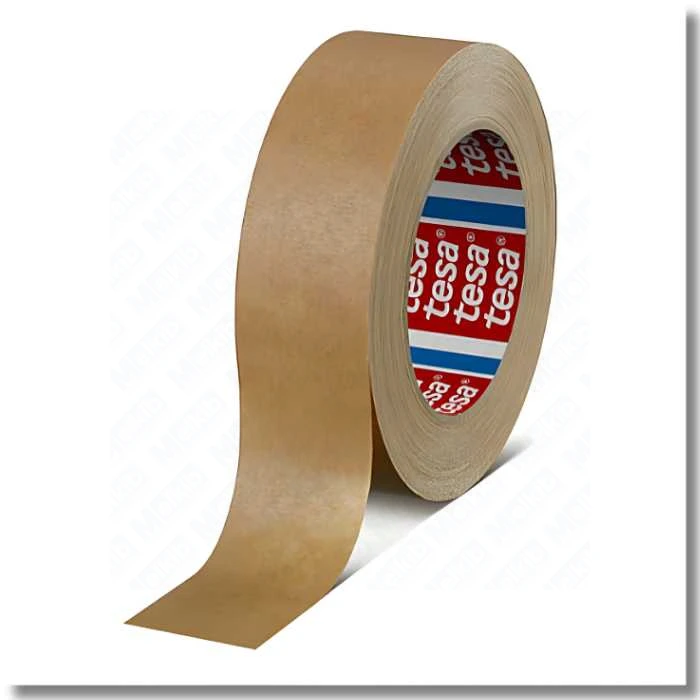

Masking tape TESA 4309 PV1 120°C brown 50 m x 25 mm
TESA 4309 PV1 is a fine crepe paper masking tape with a natural rubber adhesive, developed for spray painting processes with subsequent oven drying up to 120°C. The flexible backing helps achieve clean masking on curves and complex shapes where standard paper tapes tend to wrinkle or lift.
Who it is for
• automotive and industrial paint shops
• body repair and refinishing work
• spray painting processes with oven drying up to 120°C
• masking tasks requiring conformability on curves and edges
Key benefits
• highly conformable fine crepe paper backing
• resistant to wet sanding
• very good hand tearability for fast application
• removable after oven drying up to 120°C without tearing and without residue
Typical uses
This tape is intended for demanding masking tasks in paint applications, including areas such as curves, corners and detailed contours. It is commonly used on surfaces like painted metal, rubber, glass and plastic. In some markets it is also listed for chromed parts.
Paint anchorage on the reverse side
Very good paint or filler adhesion to the reverse side (water- or solvent-borne systems) helps reduce the risk of flaking along the mask line.
Sustainability aspect (manufacturer statement)
• 53% bio-based content in the total product excluding liner (by weight)
Technical parameters (typical values)
| EAN | 4005800220548 |
| Manufacturer code | 04309-00012-01 |
| Length | 50 m |
| Width | 25 mm |
| Color | Brown |
| Backing material | Slightly creped paper |
| Adhesive type | Natural rubber |
| Total thickness | 170 µm |
| Elongation at break | 12% |
| Tensile strength | 47 N/cm |
| Temperature resistance | 120°C (30 min) and 120°C (60 min) |
| Hand tearability | Very good |
| Easy to remove | Yes |
| Adhesion to steel | 3.5 N/cm |
Manufacturer notice
All technical information and data are typical average values and are not appropriate for specification purposes. The user is responsible for determining product suitability for the intended application and process.
FAQ
Is this masking tape suitable for oven drying
Yes. It is designed for spray painting processes with subsequent oven drying up to 120°C.
Can it handle wet sanding
Yes. The tape is resistant to wet sanding.
Is it removable without residue after oven drying
The tape can be removed after oven drying up to 120°C without tearing and without leaving residues.
What does 53% bio-based content mean
This is a manufacturer statement: 53% bio-based content in the total product excluding liner (by weight).
