Melkib MB-0295 manual 1K syringe dispensing gun 30/55 ml red

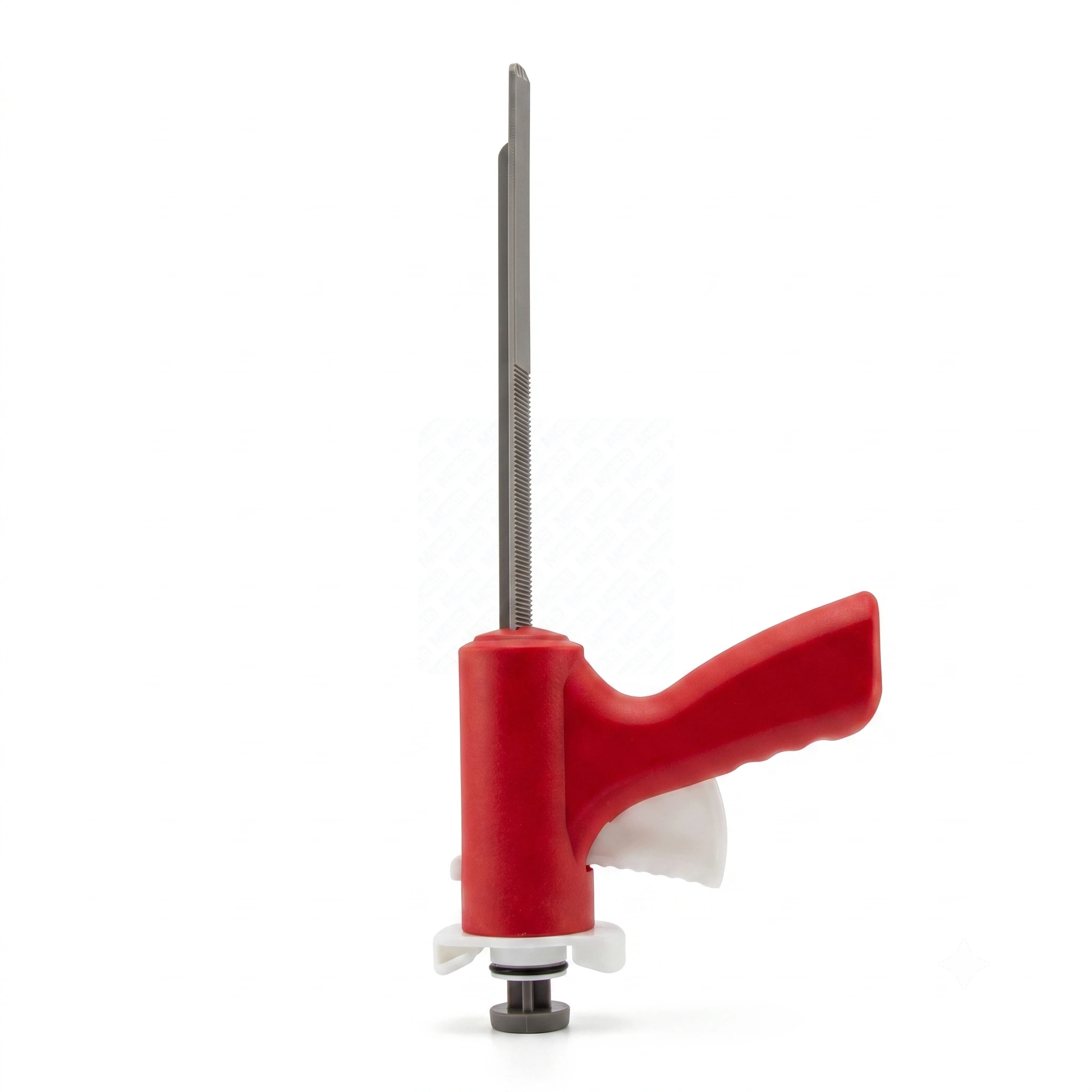

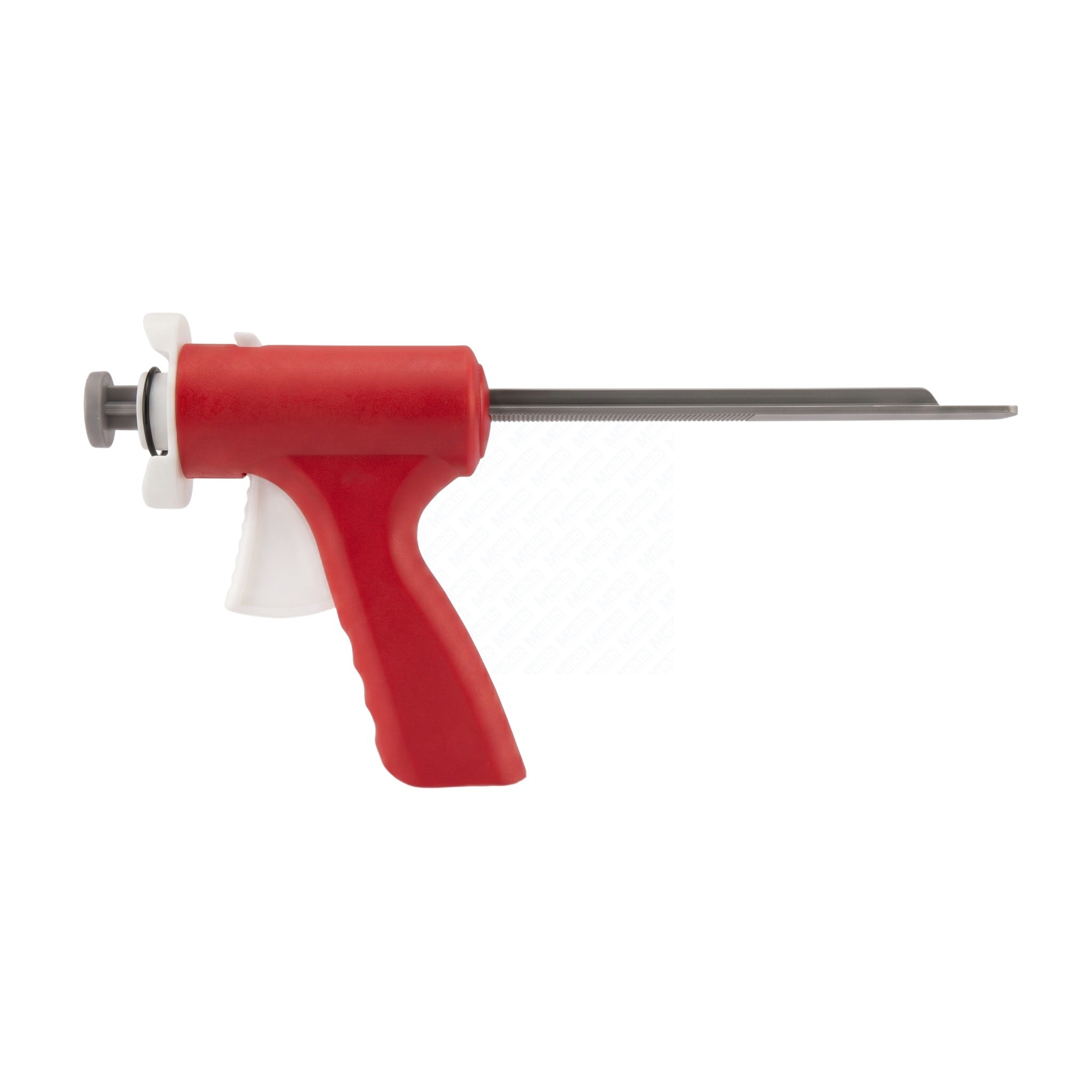

Melkib MB-0295 manual dispensing gun for 30 and 55 ml 1K syringes

Melkib MB-0295 is a manual dispensing gun designed for compatible 30 and 55 ml single-component industrial syringes. It provides controlled material application without the need to press directly on the syringe piston by hand.

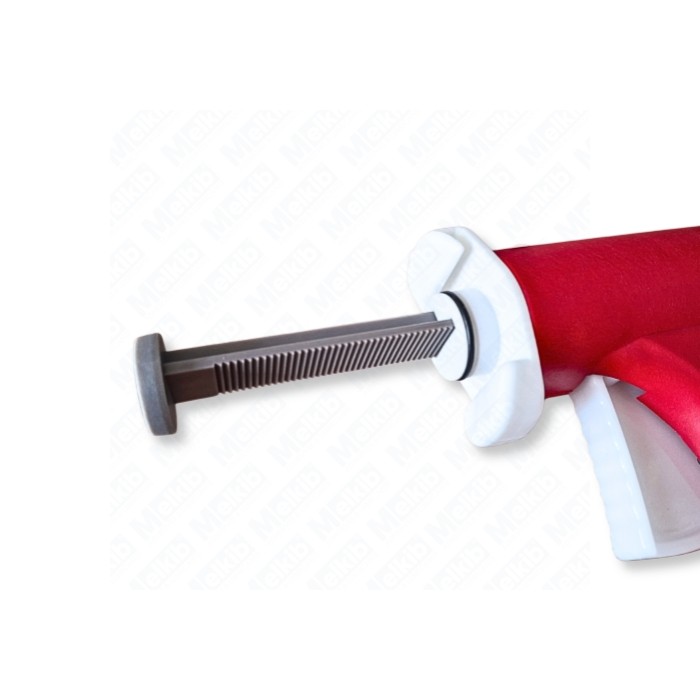

The trigger mechanism advances a toothed plunger rod, which presses against the piston inside the syringe. This makes dispensing more convenient and consistent during assembly, repair, laboratory work, prototyping and low-volume production.

Applications of the Melkib MB-0295

The gun is intended for manual dispensing of materials supplied in compatible 30 or 55 ml industrial 1K syringes.

It can be used to dispense materials such as:

• single-component adhesives,
• sealants and silicones,
• assembly and technical pastes,
• greases,
• resins, gels and other 1K syringe-dispensed materials.

The tool is suitable for assembly stations, servicing, laboratories, workshops, testing, prototyping and short production runs.

Key features of the MB-0295 syringe gun

The gun is fully mechanical. It requires no compressed air, electrical power or batteries, allowing it to be used at workstations and in locations without access to a compressor or power source.

The shaped handle and trigger mechanism support one-handed operation. A release button allows the plunger rod to be retracted before inserting or removing the syringe.

The dispensed material remains inside the syringe. When used correctly, the plunger rod acts on the syringe piston and should not come into direct contact with the material.

Package contents

• Melkib MB-0295 manual dispensing gun,
• toothed plunger rod for 30 and 55 ml syringes,

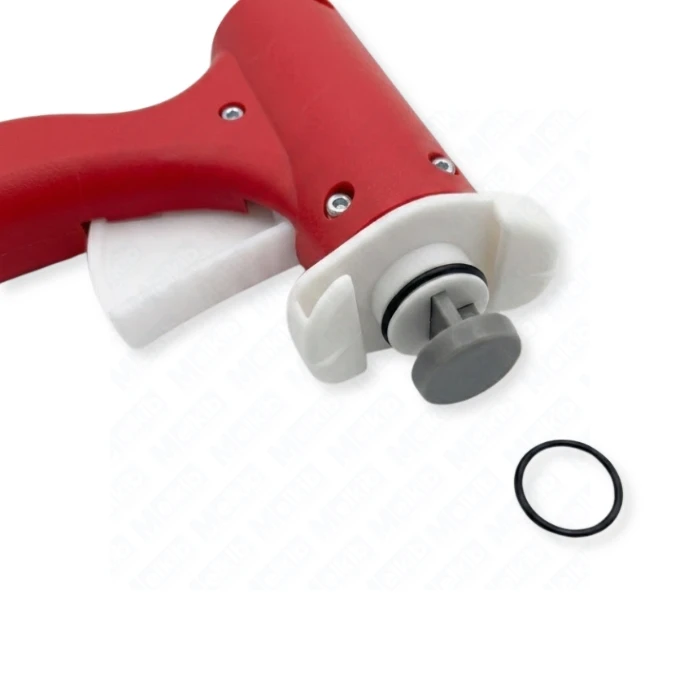

• fitted O-ring,
• 1 spare O-ring.

When to choose a manual 30/55 ml 1K dispenser

The MB-0295 is suitable for dispensing small and medium quantities of material where a pneumatic or automated dispensing system is not required.

It is especially useful for repairs, testing, prototyping, manual assembly and short production runs.

Before purchase, verify that the syringe has a capacity of 30 or 55 ml and that its flange and piston are compatible with the gun holder and plunger rod. Matching capacity alone does not guarantee compatibility with every non-standard syringe barrel.

How to use the Melkib MB-0295

1. Press the plunger release button.
2. Retract the plunger rod to create space for the syringe.
3. Insert a compatible 30 or 55 ml syringe into the holder.
4. Move the plunger rod forward until it reaches the syringe piston.
5. Fit a suitable dispensing tip or needle.
6. Press the trigger while controlling the amount of material applied.
7. Release the pressure and remove the syringe after use.

Select the dispensing tip diameter according to the material viscosity and the required dot or bead size.

Technical data of Melkib MB-0295

Storage

Store the gun in a clean and dry place. Protect the feed mechanism from dust, contamination and residues of the dispensed material. Remove the syringe after use and clean the holder and plunger rod.

Do not immerse the entire gun in cleaning agents. Before using a cleaner, verify its compatibility with the plastic body and O-rings.

FAQ

Does the gun accept both 30 and 55 ml syringes?

Yes. The MB-0295 is intended for compatible 30 and 55 ml industrial 1K syringes. The syringe flange and piston design should also be checked before purchase.

Does the gun require compressed air?

No. It is a manual tool and requires no compressed air, electrical power or batteries.

Is a spare O-ring included?

Yes. In addition to the O-ring fitted to the plunger assembly, the set includes 1 spare O-ring.

Can it dispense two-component materials?

The gun is designed for one 1K syringe. It is not intended for simultaneously dispensing two components from a 2K cartridge.

Can the gun dispense thick pastes and greases?

It can be used for materials that can be safely dispensed from a syringe using a manual mechanism. Correct dispensing tip diameter is also important.
