PVB 60 Varnish, 50 ml, brush-top – transparent PCB protective coating, fast-drying, solder-through, high insulation
Product code: AGT-199
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Select product variant:
Individual variants may differ in price
Secure purchase guarantee
Product description

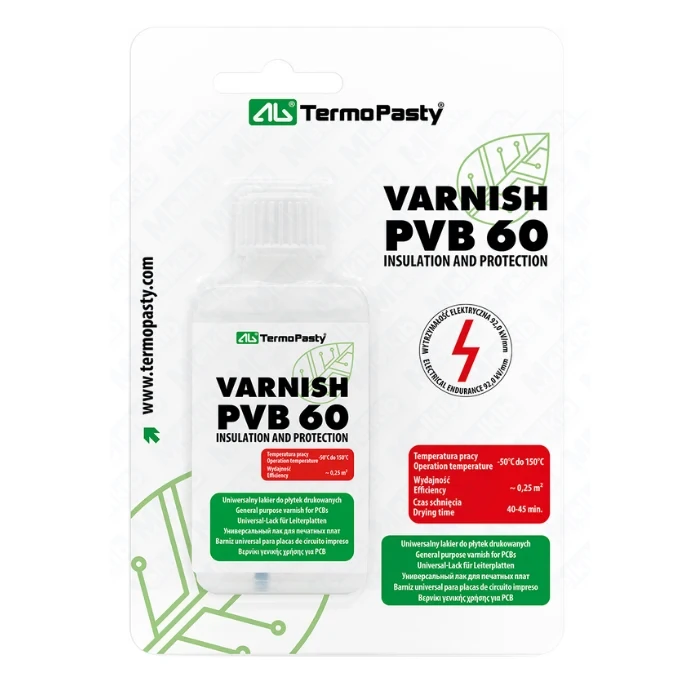

PVB 60 varnish 50 ml with brush is a fast-drying, transparent protective coating for printed circuit boards and electronic components. It forms a highly durable insulating film that protects against moisture, corrosion and contaminants, while still allowing soldering through the coating.
Benefits and unique features
- Solder-through capability – faster servicing without stripping the coating
- Fast drying: approx. 40–45 minutes
- High clarity – easy visual inspection of PCBs
- Effective barrier against moisture and corrosion
- High dielectric strength and very high resistivity
- Convenient 50 ml bottle with brush; coverage approx. 0.25 m²
Properties and applications
- Dielectric strength >89 kV/mm: insulating parts and preventing stray currents
- Volume resistivity >1.0×1014 Ω·m, surface >1.1×1014 Ω: protection of precision electronics
- Operating range −50 to +150 °C, application −40 to +60 °C: reliability in harsh conditions
- Transparent film: protection of PCBs, transformers, motor windings, cables and connector housings
- Application methods: brush (included), dip or spray
- Thinning: may be diluted with a suitable PVB thinner to adjust spray viscosity
Technical parameters
| Parameter | Value |
|---|---|
| Appearance | transparent liquid |
| Density (20 °C) | ~0.80 g/cm³ |
| Viscosity (20 °C) | ~50 cP |
| Drying time | approx. 40–45 min |
| Operating temperature | −50 to +150 °C |
| Application temperature | −40 to +60 °C |
| Dielectric strength | >89 kV/mm |
| Volume/surface resistivity | >1.0×1014 Ω·m / >1.1×1014 Ω |
| Coverage | approx. 0.25 m² / 50 ml |
| Flash point | approx. 380 °C |
| Application methods | brush, dip, spray |
| Standards | IPC-CC-830B, IPC-TM-650, PN-EN 60243-1,-2, PN-88/E-04405 |
| Shelf life | 3 years |
| Packaging | 50 ml bottle with brush |
Storage recommendations
Store tightly closed in a cool, well-ventilated place away from heat, sparks and open flames. Protect from sunlight; do not expose to temperatures above 50 °C. Ensure the surface is clean and dry before application.
Product safety
Manufacturer
AG TermoPasty
ul. Kolejowa 33E
18-218 Sokoły, Poland
Responsible person in the EU
AG TermoPasty
ul. Kolejowa 33E
18-218 Sokoły, Poland
