PowerFlow HP manual dispenser for 310 ml cartridges 18:1, 3.5 kN, epoxy-coated aluminum, switchable PRD No-drip
Product code: DM1C 310-CA-R18-001
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Secure purchase guarantee
Product description

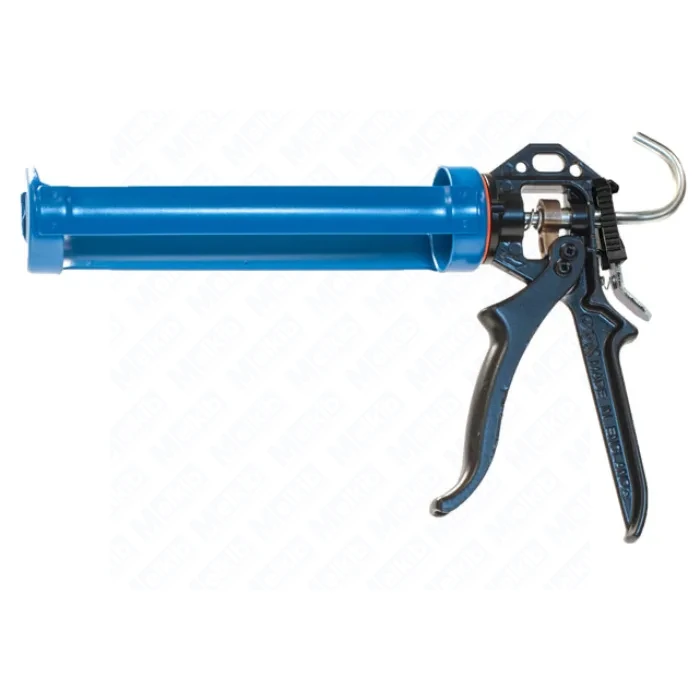

The PowerFlow HP for 310 ml cartridges 18:1 is a manual dispenser delivering 3.5 kN thrust for precise application of medium- to high-viscosity materials.
Advantages and Unique Features
- Epoxy-coated aluminum handle for durability and comfort
- U-shaped steel frame with curved rod end for tool support
- Switchable Pressure Relief Device (PRD) prevents dripping
Properties and Applications
- Maximum thrust 3.5 kN: ideal for epoxy resins and structural adhesives
- Mechanical advantage 18:1: fits 310 ml and 400 ml cartridges
- Weight 0.8–0.9 kg: comfortable manual operation
- Frame length 233–271 mm: adaptable to various cartridge sizes

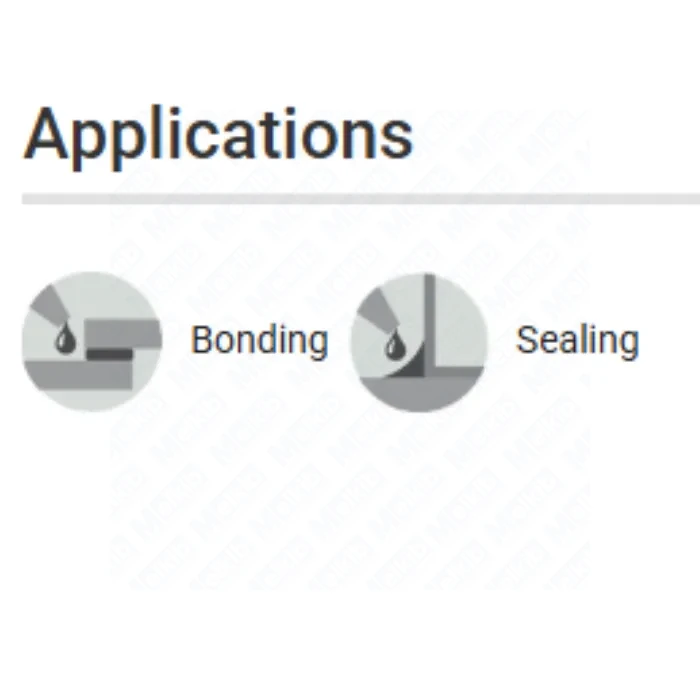

- Applications: bonding and sealing in industrial and assembly environments
Technical Specifications
| Specification | Value |
|---|---|
| Weight | 0.8–0.9 kg |
| Frame length | 233–271 mm |
| Maximum thrust | 3.5 kN |
| PRD | yes (switchable) |
| Handle material | epoxy-coated aluminum |
| Frame material | epoxy-coated steel |
| Approvals | REACH |

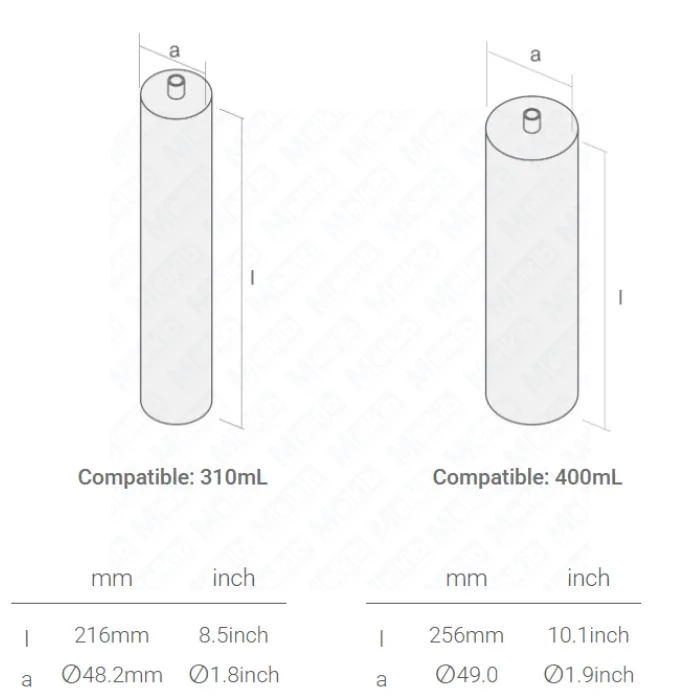

| Cartridge capacity | 310 ml, 400 ml |
| Mechanical advantage | 18:1 |
| Viscosity | medium/high |
| Color | blue/black |
| Nozzle dimension | Ø25 mm |
Storage Recommendations
Store in a dry place at 5 °C–25 °C, away from heat sources and direct sunlight.
Product safety
Manufacturer
medmix UK Ltd
1 Tealgate
RG17 0YT Hungerford, United Kingdom
Responsible person in the EU
Melkib Klus Raczek Spółka Komandytowa
ul. Stawowa 91
43-400 Cieszyn, Poland
