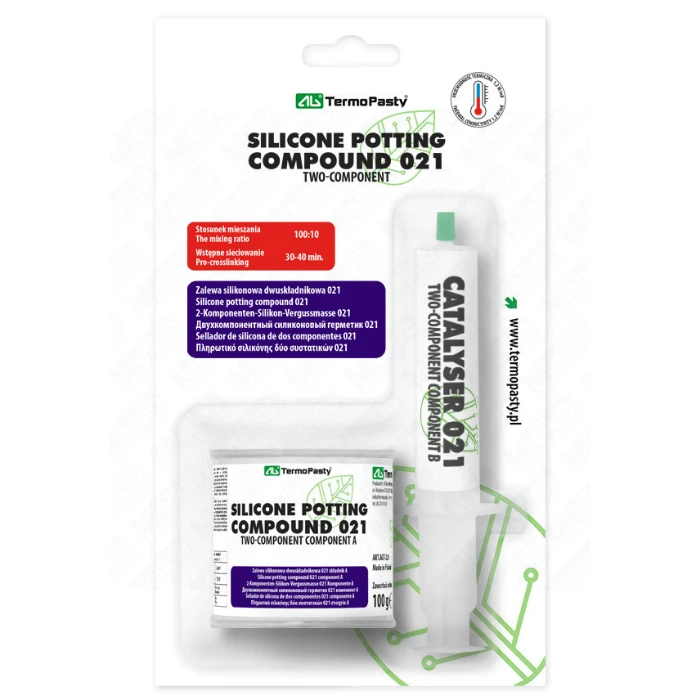

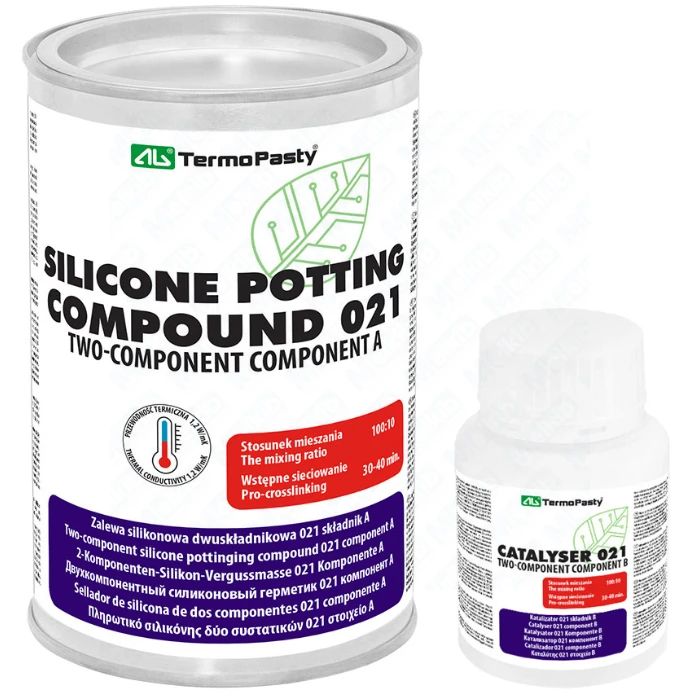

Silicone pouring 021 100g, 1kg, thermally conductive white liquid for encapsulation and protection of electronic and electrical systems
Product code: AGT-220q
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Select product variant:
Individual variants may differ in price
Secure purchase guarantee
Product description
Silicone pouring 021, thermally conductive liquid, is a specialized product intended for securing and encapsulating electronic and electrotechnical systems. This white, thermally conductive resin stands out for its unique combination of properties, providing not only excellent protection, but also effective heat dissipation. It is ideal for use in places where heat is generated, such as in the case of energy converters or power semiconductors. After hardening, this filler becomes a flexible material that provides long-lasting protection.
Properties:
- The potting mix effectively dissipates heat, which is crucial in electronic components that generate heat.
- Offers stability after hardening, maintaining its shape and properties.
- Minimum volume change after hardening.
- Low volatile matter content and solid technical parameters ensure long-term effectiveness.
- Simple preparation and application process, safe to use.
Application:
- Encapsulation and protection of electronic circuits in electrical engineering.
- Protection of energy converters, power semiconductors and power supplies.
- Applications in the automotive industry, telecommunications and in computers and peripheral devices.
- Ideal for places generating heat due to high thermal conductivity.
Parameters:
|
Product technical data |
|
|---|---|
|
Appearance |
liquid paste |
|
Color |
white |
|
Specific gravity at 25°C |
ok. 1.12 g/cm3 |
|
Viscosity at 25°C |
-1125 cP |
|
pH |
>7 |
|
Catalyst dose |
10 |
|
Properties of the mixture after mixing the ingredients 100:10 |
|
|---|---|
|
Density at 25°C |
ok. 1.12 g/cm3 |
|
Volatile content |
3% |
|
Shelf life at 25°C |
ok. 30 minutes |
|
Geling time at 25°C |
max. 60 hours |
|
Thermal conductivity |
-1.2 W/mK |
|
Operating temperature |
from -50°C to 180°C |
|
Capacity |
100g, 1kg |
