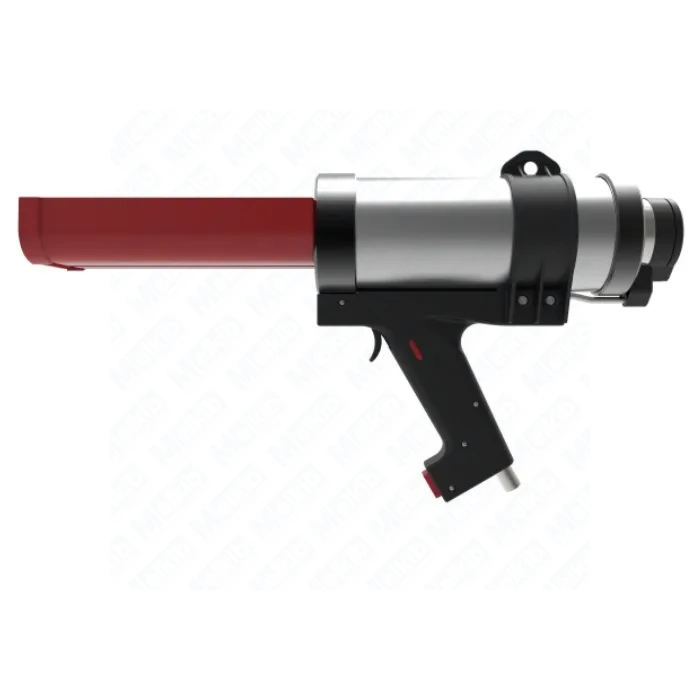

TS488 XM pneumatic bead dispenser 600 ml 1:1, 4 kN thrust, 8 bar, reinforced nylon & aluminium frame

Availability: On order

Delivery: The price does not include any possible payment costs check the delivery methods

Price: €613.84 613.84

Net price: €499.05

quantity szt.

You gain 260 points []

add to wish list

Rating:

Vendor:

Product code: DP2K 600-01-400-101

ask about product
recommend to a friend
add your review

Description

The TS488 XM is a two-component pneumatic bead dispenser for 600 ml 1:1 cartridges, delivering up to 4 kN thrust and precise dispensing of medium-viscosity materials.

Advantages and Unique Features

Air-operated plunger retraction
One-hand pressure adjustment for quick flow control
Anti-drip function prevents unwanted run-on
Reinforced nylon handle & aluminium tube for long life
Up to 2-year warranty for worry-free use

Properties and Applications

Maximum thrust 4 kN: for medium-viscosity epoxies and adhesives
Operating pressure up to 8 bar: consistent material flow
Air consumption 40 l/min: efficient operation
Cartridge capacity 600 ml (1:1): standard size for large applications

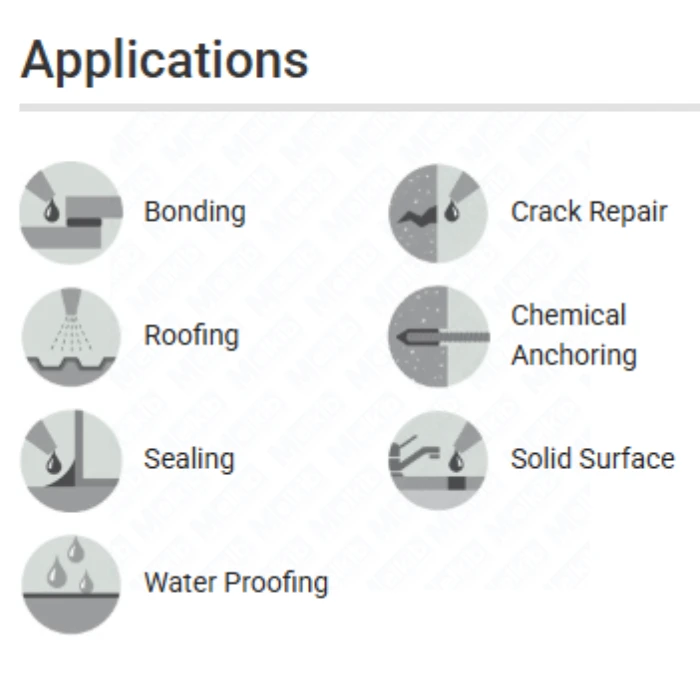

Applications: bonding, crack repair, roofing, chemical anchoring, sealing, waterproofing

Technical Specifications

Specification	Value
Weight	2.5 kg
Cartridge holder length	270 mm
Maximum thrust	4 kN
Max. pneumatic pressure	8 bar
Air consumption	40 l/min
Handle material	reinforced nylon
Holder material	aluminium
Frame material	steel
Approvals	CE
Cartridge capacity	600 ml (1:1)
Viscosity	medium
Color	black/grey/red
Nozzle dimension	Ø25 mm

Storage Recommendations

Store in a dry place at 5 °C–25 °C, away from heat sources and direct sunlight.
