Termopasty Easy Print Sn62Pb36Ag2 6 g leaded solder paste
Product code: AGT-023
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Secure purchase guarantee
Product description
IMPORTANT: This product is intended exclusively for professional users. Sale to consumers is excluded. Purchase requires use of the product in professional or industrial activities and the provision of information enabling verification of the buyer. Consumer orders will not be fulfilled and the payment will be refunded.

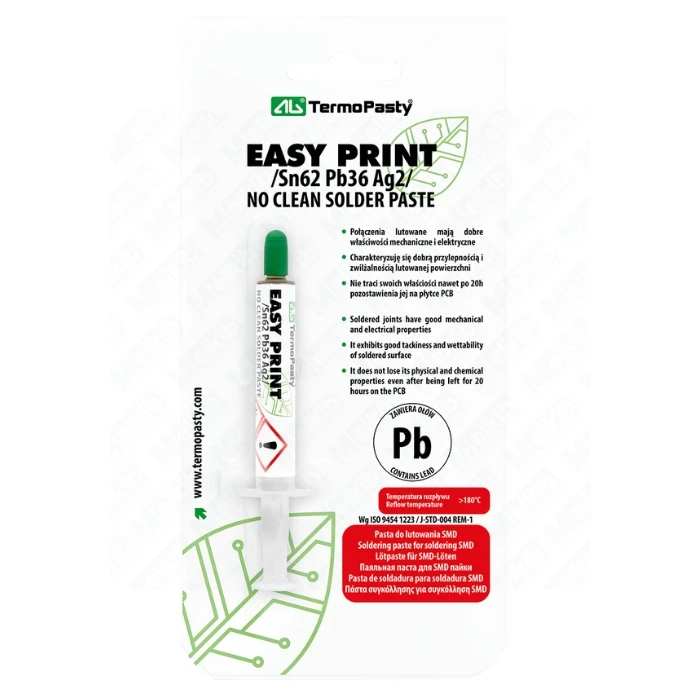

Termopasty Easy Print Sn62Pb36Ag2 6 g – leaded solder paste for SMD

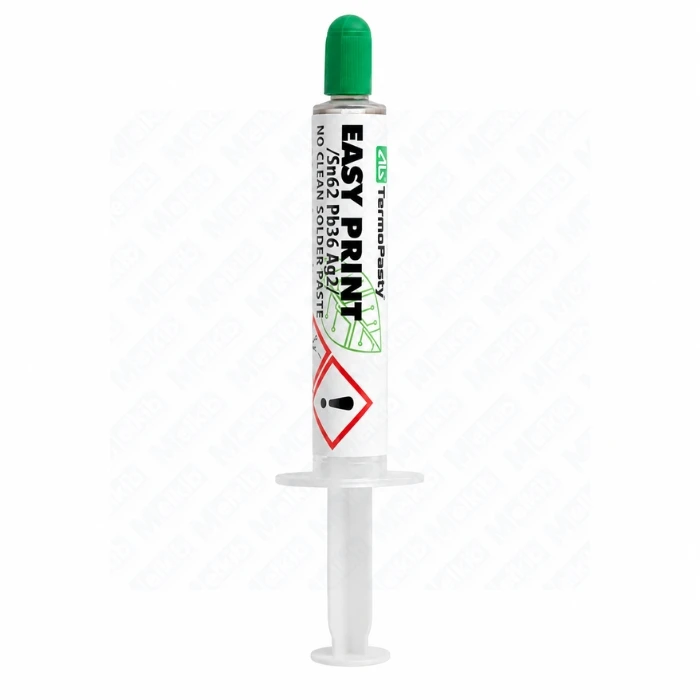

Termopasty Easy Print Sn62Pb36Ag2 6 g is a No Clean solder paste designed for soldering SMD components using leaded soldering technology. The alloy contains 62% tin, 36% lead and 2% silver. The 6 g version is supplied in a syringe for accurate application of small amounts of paste to soldered components.
The paste can be used for reflow soldering in both normal atmosphere and nitrogen, as well as for stencil printing using laser-cut or electroformed stencils. Its No Clean formulation means that residues do not normally require cleaning after a correctly performed soldering process.
Applications of Easy Print Sn62Pb36Ag2
The product is intended primarily for professional assembly and repair of electronic circuits using leaded soldering technology, particularly for SMD component soldering, reflow soldering, precise syringe application and stencil printing.
Easy Print Sn62Pb36Ag2 can be used in both standard atmospheric conditions and nitrogen reflow processes. The manufacturer also specifies resistance to Mid Chip Solderballing and contour reproduction for more than 8 hours of continuous printing.
What distinguishes Termopasty Easy Print Sn62Pb36Ag2
The Sn62Pb36Ag2 alloy is intended for leaded soldering processes. The paste is grey, has a density of approximately 4.6 g/cm³ and, for the 6 g version, a particle size of 25–40 µm.
The product remains printable for more than 8 hours, while the manufacturer specifies a tack value of 1.0 G/mm² after 24 hours. The No Clean formulation means that residues normally do not need to be removed after a correctly performed soldering process.
How to use Easy Print solder paste
Read the current Safety Data Sheet carefully before use. Before application, allow the paste to reach ambient temperature to reduce the risk of moisture condensation.
The optimum application temperature specified by the manufacturer is 23–26°C, with a maximum application temperature of 28°C. The paste can be applied directly to soldered components using the syringe or used in a stencil-printing process.
For stencil printing, the manufacturer recommends a squeegee speed of 25–150 mm/s. Reflow parameters should be selected for the equipment, PCB and components in accordance with the manufacturer's soldering profile and the requirements of the specific process.
Important safety information
This product contains lead and is intended exclusively for professional use. The current Safety Data Sheet classifies the mixture as hazardous and uses the signal word Danger.
Relevant hazards include H317 – may cause an allergic skin reaction, H360FD – may damage fertility and the unborn child, H362 – may cause harm to breast-fed children, and H400/H410 – very toxic to aquatic life, including long-lasting effects.
Read the special safety precautions before use, wear appropriate personal protective equipment in accordance with the SDS and avoid release to the environment. Particular care is required where exposure during pregnancy or breastfeeding may occur.
Technical data of Termopasty Easy Print Sn62Pb36Ag2 6 g
| Parameter | Value |
|---|---|
| Product | Easy Print Sn62Pb36Ag2 |
| Manufacturer code | ART.AGT-023 |
| EAN | 5901764329244 |
| Net weight | 6 g |
| Packaging | Syringe |
| Product type | Leaded No Clean solder paste |
| Alloy | Sn62Pb36Ag2 |
| Alloy composition | 62% Sn / 36% Pb / 2% Ag |
| Appearance | Grey paste |
| Odour | None |
| Density | approx. 4.6 g/cm³ |
| Particle size for 6 g version | 25–40 µm |
| Tack | 1.0 G/mm² after 24 h |
| Printability | more than 8 h |
| Optimum application temperature | 23–26°C |
| Maximum application temperature | 28°C |
| Squeegee speed | 25–150 mm/s |
| CLP classification – selected hazards | Skin Sens. 1 H317 / Repr. 1A H360FD / Lact. H362 / Aquatic Acute 1 H400 / Aquatic Chronic 1 H410 |
| Signal word | Danger |
| Use restriction | For professional use only |
Storage
Store the paste at 3–7°C for no longer than 6 months in a tightly closed container to prevent contamination. Before opening, allow the paste to reach ambient temperature to reduce moisture condensation. Do not mix used paste with fresh paste.
FAQ – Termopasty Easy Print Sn62Pb36Ag2 6 g
Can Easy Print Sn62Pb36Ag2 be sold to consumers?
No. The product is intended exclusively for professional users and is not intended for consumer sale.
Does Easy Print Sn62Pb36Ag2 contain lead?
Yes. The alloy contains 36% lead, 62% tin and 2% silver and is intended for leaded soldering technology.
Do residues have to be cleaned after soldering?
The paste is a No Clean product, so residues normally do not require cleaning after a correctly performed soldering process.
Is the 6 g version suitable for precise SMD application?
Yes. It is supplied in a syringe, allowing small amounts of paste to be applied accurately to components intended for soldering.
At what temperature should the paste be stored?
The manufacturer specifies storage at 3°C to 7°C for no longer than 6 months.
Can the paste be used immediately after removal from refrigerated storage?
The container should not be opened immediately. The manufacturer recommends allowing the closed package to reach ambient temperature first to avoid moisture condensation.
