Copper-based lubricating, anti-adhesive paste 120g, high-temperature copper paste for threaded connections, anti-corrosion to protect against seizing
Product code: 10026335
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Secure purchase guarantee
Product description

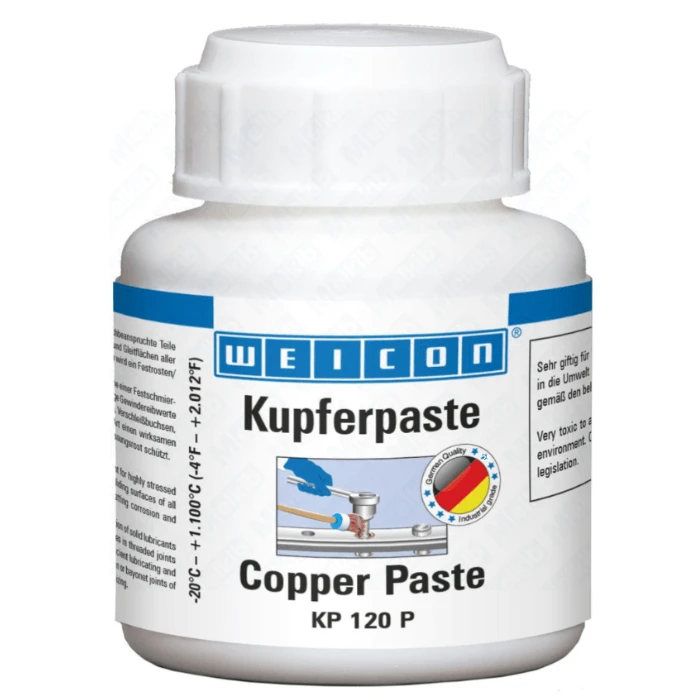

Copper-based lubricating and anti-adhesive paste 120g – WEICON Copper Paste
WEICON Copper Paste is a high-quality protective, separating and lubricating agent, designed for use at extreme temperatures. The paste provides excellent anti-corrosion, lubricating and separating properties, protecting metal parts against corrosion, seizure and wear. The product is free from sulphur, nickel and lead, making it safe to use. Ideal for threaded connections, sliding surfaces and elements operating under high loads and at high temperatures up to +1100°C.
Key product features
- Thermal resistance from -20°C to +1100°C
- High lubrication and separation efficiency
- Protects against corrosion, wear and seizure
- Does not contain sulfur, nickel or lead
- Reduces friction and wear of elements
- Resistant to moisture, water, acids and alkalis
- Prevents seizing of screws and nuts
- Reduces vibrations in brake elements
- Provides long-term protection of connections threaded
Applications
WEICON Copper Paste is widely used in industry, automotive and mechanics. It can be used for:
- Lubrication and protection of threaded connections
- Securing screws, nuts and flanges
- Reduction of noise and vibration in brake pads
- Lubrication of friction sleeves, pins, bayonets
- Prevention of seizing of high-temperature elements
- Use in pneumatic and hydraulic hammers
- Lubrication of machine elements operating under extreme conditions
Technical data
| Parameter | Value |
|---|---|
| Oil base | Oil mineral |
| Color | Copper |
| Silicone-free | Yes |
| Consistency class (DIN 51818) | NLGI 1 |
| Thickener | Aluminum complex soap |
| Density | 1.1 g/cm³ |
| Friction coefficient (DIN 940) | 0.11 - 0.13 |
| VKA-TEST (DIN 51350) welding strength | 3200 N |
| Thermal resistance | -20 to +1100°C |
| Dropping point (IP 396) | +180°C |
| Worked penetration (DIN ISO 2137) | 310 - 340 1/10 mm |
Instructions for use
For best results, please observe following instructions:
- Clean the surfaces of dirt, oils and greases.
- Apply a thin layer of the paste evenly to the surfaces.
- For screws and nuts, apply the product up to the base of the thread.
- Do not mix the paste with other greases and oils.
Storage and precautions
- Store dry, at temperatures between +5°C and +25°C
- Avoid contact with open flames and sources of heat
- Protect from moisture and dirt
- Store in the original, tightly closed container
WEICON Copper Paste is a professional lubricating paste based on copper, ideal for industrial and mechanical applications. Thanks to its high thermal resistance and excellent lubricating and separating properties, it provides long-term protection and reliable operation of metal elements in extreme conditions.
