Fischer FH II 10/25 H heavy-duty sleeve anchor with cap nut for concrete 50 pieces
Product code: 00503140
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Secure purchase guarantee
Product description
Fischer FH II 10/25 H – heavy-duty sleeve anchor with cap nut 50 pieces
Fischer FH II 10/25 H is a steel heavy-duty sleeve anchor designed for secure fixings in concrete. The H version is equipped with a cap nut, providing a protected and aesthetically finished connection after installation.
Variant 503140 is intended for through installation. It requires a 10 mm drill bit, the minimum drill-hole depth is 80 mm and the maximum fixture thickness is 25 mm. The pack contains 50 pieces.
What is Fischer FH II 10/25 H used for?
The FH II-H anchor is designed for fixing structural components and equipment in cracked and non-cracked concrete. Fischer indicates the FH II-H series for applications including railings, brackets, steel structures, ladders, cable trays, machines, gates, façades and grilles.
The anchor is covered by a European Technical Assessment for use in concrete classes C20/25 to C50/60, both cracked and non-cracked. The manufacturer also indicates possible use in C12/15 concrete and natural stone with a dense structure, provided the fixing is properly selected for the specific substrate and load.
How does the FH II sleeve anchor work?
Fischer FH II is an expansion anchor designed for through installation. After placing the anchor in the drilled hole and tightening it to the required torque, the cone is drawn into the expansion sleeve. The sleeve presses against the wall of the drill hole, creating a mechanical anchorage in the concrete.
The black plastic ring helps prevent the anchor from rotating during tightening and acts as a movement compensation zone. This helps pull the fixture firmly against the substrate.
Key benefits of Fischer FH II 10/25 H
- heavy-duty sleeve anchor,
- designed for cracked and non-cracked concrete,
- through installation for convenient mounting through the fixture,
- maximum fixture thickness up to 25 mm,
- 10 mm drill-hole diameter,
- M6 thread,
- cap nut for an aesthetic and protected finish,
- bolt and sleeve design supporting high shear load capacity,
- optimized geometry for easier installation,
- European Technical Assessment for the FH II system.
Applications
- railings,
- stair structures,
- brackets,
- steel structures,
- ladders,
- cable trays,
- machines,
- gates,
- façades,
- grilles and other components requiring durable fixing in concrete.
Installation of Fischer FH II 10/25 H
Drill a hole in the substrate using a 10 mm drill bit. For the FH II 10/25 H variant, the minimum drill-hole depth for through installation is 80 mm. Insert the anchor through the fixture into the prepared hole and tighten it according to the manufacturer’s requirements.
The 10/25 H variant is intended for fixtures with a maximum thickness of 25 mm. A 13 mm wrench is used for the nut.
Technical data – Fischer FH II 10/25 H
| Parameter | Value |
|---|---|
| Manufacturer | fischer |
| Series | FH II-H |
| Variant | FH II 10/25 H |
| Manufacturer article number | 503140 |
| Fixing type | steel heavy-duty sleeve anchor |
| Head type | cap nut |
| Installation method | through installation |
| Drill diameter d0 | 10 mm |
| Minimum drill-hole depth for through installation h2 | 80 mm |
| Maximum fixture thickness tfix | 25 mm |
| Thread | M6 |
| Wrench size | 13 mm |
| Substrate covered by technical assessment | cracked and non-cracked concrete C20/25–C50/60 |
| Other substrates indicated by the manufacturer | C12/15 concrete, dense natural stone |
| European Technical Assessment | ETA-07/0025 |
| Declaration of Performance | DoP No. 0197 |

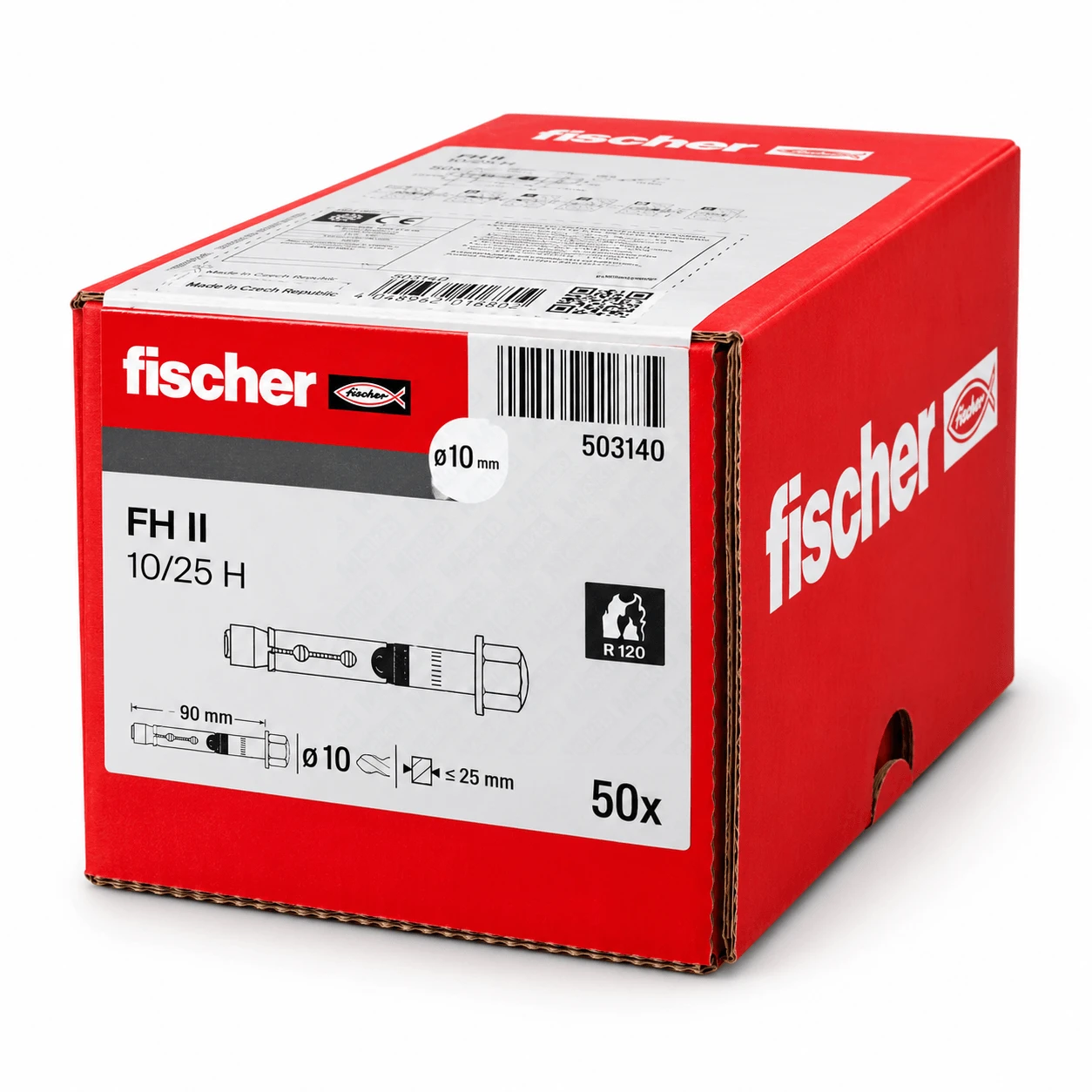

| Packaging | folding box |

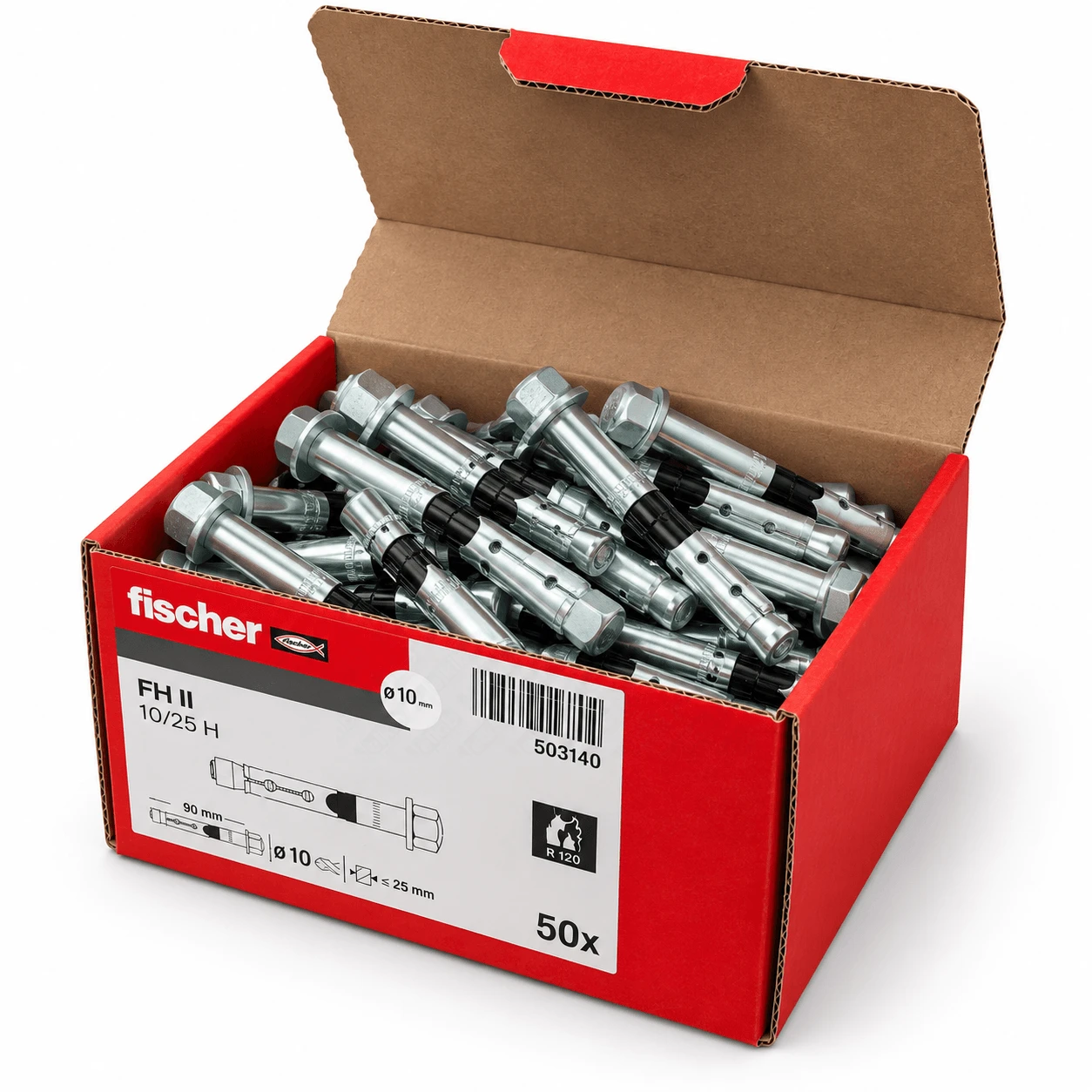

| Quantity per pack | 50 pieces |
Storage
The manufacturer does not specify any special storage conditions or temperature range for this mechanical fixing.
Selecting the correct FH II variant
The designation 10/25 identifies this specific FH II-H variant: the drill diameter is 10 mm and the maximum fixture thickness is 25 mm. The letter H indicates the version with a cap nut. Other sizes and head types are available in the FH II family, so the correct variant should be selected according to fixture thickness, substrate and expected loads.
Note: the current Fischer variant table for article 503140 does not show seismic approval C1/C2. Therefore, this specific FH II 10/25 H variant should not be described as having confirmed C1/C2 seismic approval.
FAQ – Fischer FH II 10/25 H
Is Fischer FH II 10/25 H suitable for cracked concrete?
Yes. The FH II-H system is intended for fixing in cracked and non-cracked concrete. The European Technical Assessment covers concrete classes C20/25–C50/60.
What drill diameter is required?
A 10 mm drill bit is required for the FH II 10/25 H variant.
What is the minimum drill-hole depth?
For through installation, the manufacturer specifies a minimum drill-hole depth of 80 mm.
What fixture thickness can be used with FH II 10/25 H?
The maximum fixture thickness for this variant is 25 mm.
What thread does FH II 10/25 H have?
Variant 503140 has an M6 thread and is operated with a 13 mm wrench.
What does the letter H mean in FH II 10/25 H?
The letter H indicates the version with a cap nut, providing a protected and aesthetically finished visible fixing.
Does FH II 10/25 H 503140 have C1/C2 seismic approval?
The current manufacturer variant table for article 503140 does not show C1/C2 seismic approval. Therefore, we do not assign this parameter to this specific variant.
How many anchors are included in the pack?
The factory box of Fischer FH II 10/25 H 503140 contains 50 pieces.
