Fischer UltraCut FBS II 10 x 100 45/35/15 US concrete screw with washer 1 pc
Product code: 00536862SZT
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Secure purchase guarantee
Product description

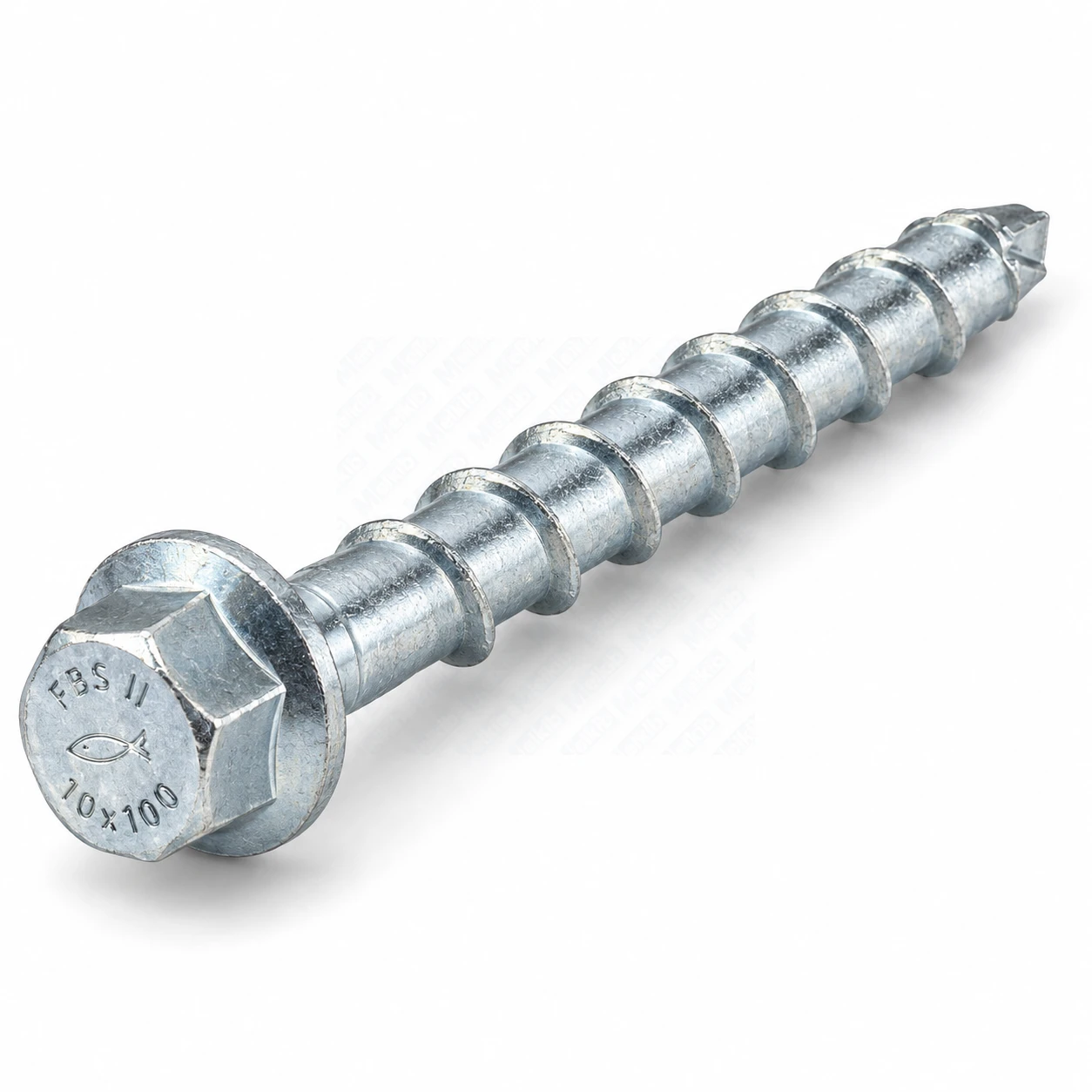

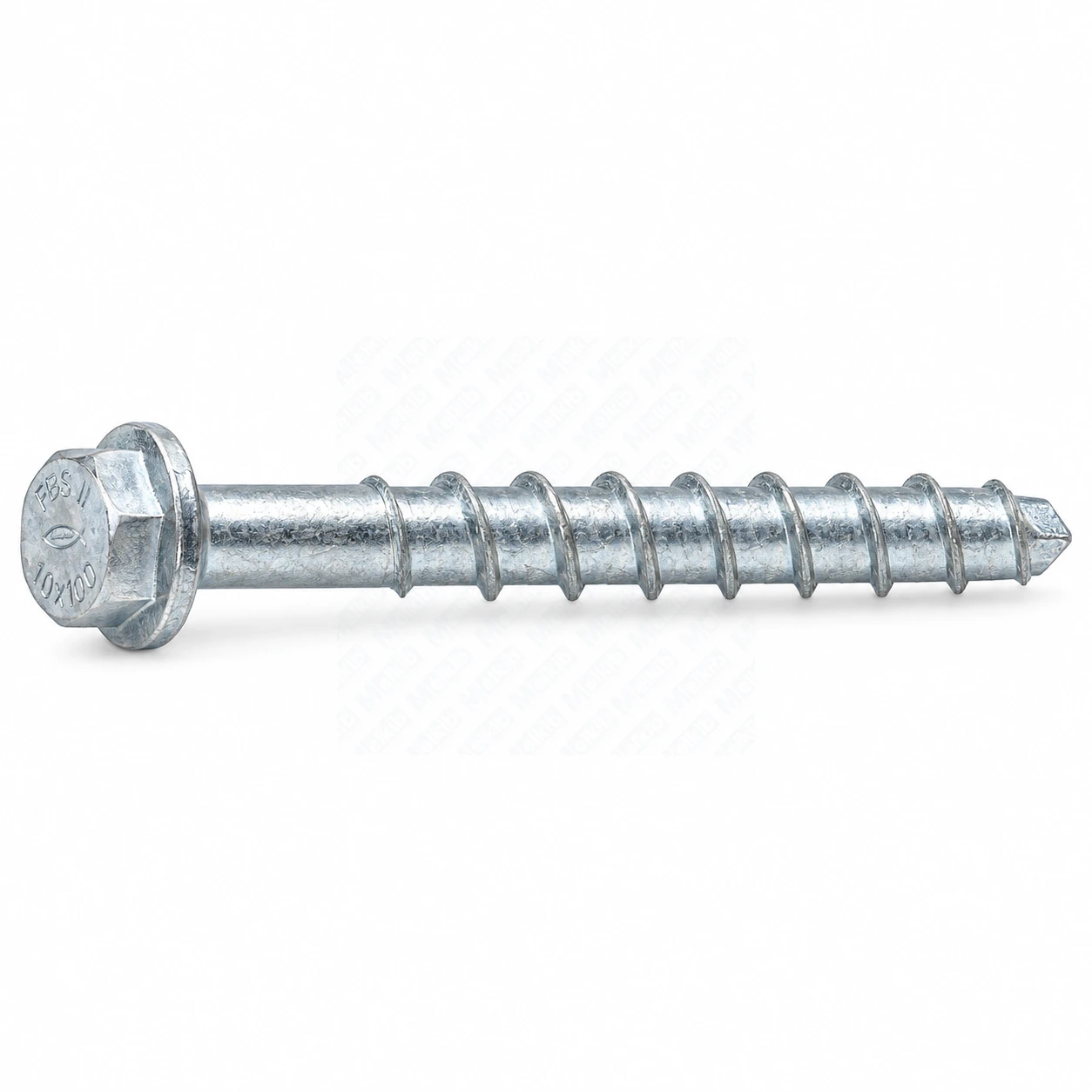

Fischer UltraCut FBS II 10 x 100 US – single concrete screw with integrated washer
Fischer UltraCut FBS II 10 x 100 45/35/15 US is a single steel screw for direct fastening in concrete. This Melkib sales variant contains 1 screw and is intended for applications where a full pack of 50 pieces is not required.
The full pack containing 50 Fischer UltraCut FBS II 10 x 100 45/35/15 US screws is available under Melkib code 00536862.
One screw – three installation configurations
This 10 x 100 45/35/15 US version can be installed at nominal anchorage depths of 55, 65 or 85 mm. The corresponding maximum fixture thicknesses are 45, 35 and 15 mm.
The designation 45/35/15 does not indicate anchorage depth. These values refer to the maximum fixture thickness for each installation configuration.
US version with integrated washer
The screw features an SW15 hexagonal head with an integrated washer. This provides a larger bearing surface beneath the head and is suitable for direct fastening of profiles, brackets, plates and other structural components.
Applications in concrete
UltraCut FBS II is designed for direct fastening in concrete. Typical applications include brackets, metal profiles, base plates, railings, racking systems, protective barriers, supports and other components requiring a mechanical fixing point.
For safety-relevant fixings, permissible loads, spacing and edge distances must be selected according to ETA-15/0352 and the manufacturer's current technical documentation.
Installation parameters
The screw is 100 mm long and requires a nominal 10 mm drill hole. The minimum drill hole depth for through installation is 110 mm. An SW15 socket or wrench is required for installation.
The product label specifies a maximum installation torque of 100 Nm and a maximum impact wrench torque of 650 Nm for this version.
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | fischer |
| Series | UltraCut FBS II |
| Version | 10 x 100 45/35/15 US |
| Manufacturer article number of the base product | 536862 |
| Type | concrete screw with hexagonal head and integrated washer |
| Material | electro-galvanized steel |
| Length | 100 mm |
| Nominal drill hole diameter | 10 mm |
| Drive | SW15 |
| Anchorage / max. fixture thickness – configuration 1 | 55 / 45 mm |
| Anchorage / max. fixture thickness – configuration 2 | 65 / 35 mm |
| Anchorage / max. fixture thickness – configuration 3 | 85 / 15 mm |
| Minimum drill hole depth for through installation | 110 mm |
| Maximum installation torque according to label | 100 Nm |
| Maximum impact wrench torque according to label | 650 Nm |
| Melkib sales unit | 1 screw |
| European Technical Assessment | ETA-15/0352 |
| Declaration of Performance | DoP No. 0227 |
Fixing selection
The selected anchorage depth determines the maximum fixture thickness. For this version, the available configurations are 55/45 mm, 65/35 mm and 85/15 mm. Load capacity must be selected according to the concrete grade and condition, fixing geometry, edge distances and load direction.
FAQ
Does 00536862SZT mean one screw?
Yes. This SKU contains 1 Fischer UltraCut FBS II 10 x 100 45/35/15 US screw sold individually.
Where is the full pack available?
The full pack containing 50 screws is available under Melkib code 00536862.
What does 45/35/15 mean?
These values indicate the maximum fixture thicknesses corresponding to nominal anchorage depths of 55, 65 and 85 mm.
What drill bit is required?
This version requires a nominal 10 mm drill hole.
How deep should the drill hole be?
The minimum drill hole depth for through installation is 110 mm.
What socket size is required?
The US version uses an SW15 hexagonal head with an integrated washer.
