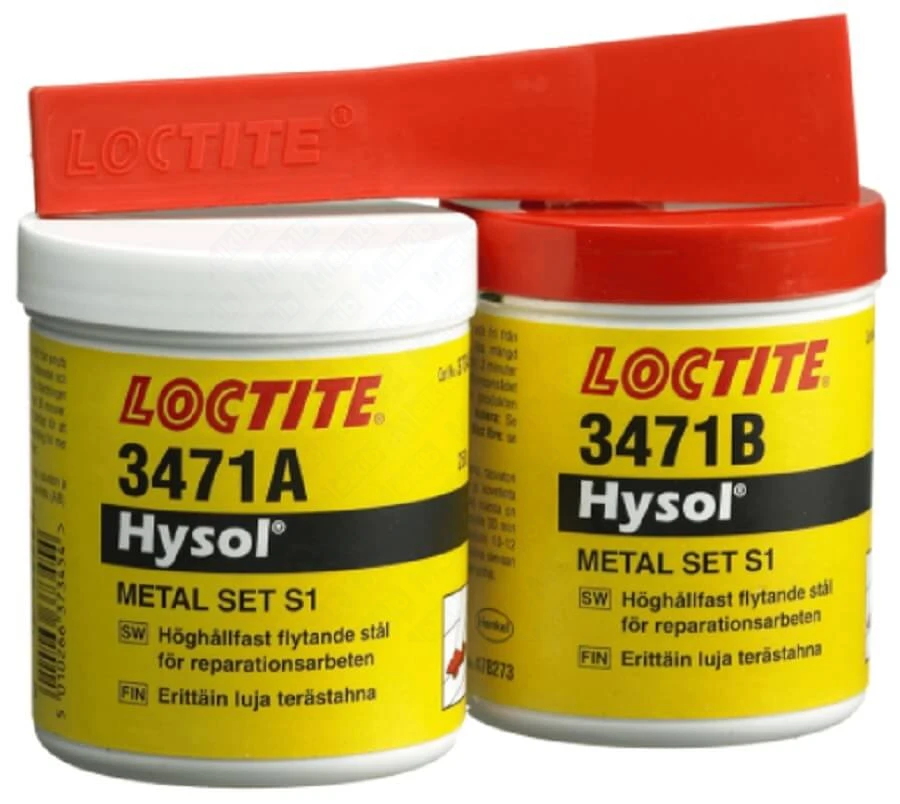

Loctite EA 3471 500 g two-component gray epoxy repair compound, for sealing, filling cavities and holes, rebuilding worn seals, workable when cured, looks like metal when cured
Product code: 229176
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Select product variant:
Individual variants may differ in price
Secure purchase guarantee
Product description
LOCTITE EA 3471 500G – Steel-Filled Epoxy Putty for Industrial Metal Repairs
LOCTITE EA 3471 500G, also known as FIXMASTER STEEL PUTTY, is a two-component steel-reinforced epoxy repair compound designed for rebuilding worn or damaged metal parts. Once cured, it forms a metal-like surface that can be drilled, tapped, filed, or machined. With excellent adhesion, mechanical resistance, and easy application, LOCTITE EA 3471 is an essential product for maintenance, repair, and industrial servicing.
Applications of LOCTITE EA 3471
- Non-structural repairs of metal castings
- Sealing tanks, valves, pipes, and pressure vessels
- Rebuilding worn sealing surfaces and housings
- Filling cavitation damage, cracks, and material losses
- Making jigs, fixtures, and tooling molds
Main Features and Benefits
- Non-sagging and non-shrinking – ideal for vertical surfaces
- Fast surface rebuilding – reduces machine downtime
- High steel content – metal-like finish
- Excellent adhesion to all metal substrates
- Machinable after cure
- Heat resistance up to 105°C
Technical Specifications
| Property | Value |
|---|---|
| Product type | Two-component steel-filled epoxy repair compound |
| Mixed color | Gray paste |
| Mix ratio (by weight) | 6.25 : 1 (resin : hardener) |
| Mix ratio (by volume) | 2.5 : 1 |
| Mixed density | 2.64 – 2.76 kg/l |
| Working time | 30 minutes (21°C) |
| Gel time | 35–40 minutes |
| Tensile strength | 27.8 N/mm² |
| Tensile modulus | 9360 N/mm² |
| Compressive strength | 61.7 N/mm² |
| Compressive modulus | 3400 N/mm² |
| Flexural strength | 56.4 N/mm² |
| Flexural modulus | 3500 N/mm² |
| Hardness (Shore D) | 82 |
| Glass transition temperature | 60°C |
| Elongation at break | 0.49% |
| Thermal conductivity | 0.523 W/m·K |
| Abrasion loss (ASTM D4060) | 156 mg |
| Volume resistivity | 1.1 × 10¹⁵ Ω·cm |
| Surface resistivity | 3.1 × 10¹⁵ Ω |
| Shear strength (steel) | 9.6 N/mm² |
| Operating temperature range | -30°C to +105°C |
| Package size | 500 g |
Storage Recommendations
LOCTITE EA 3471 should be stored in its original, tightly sealed container in a dry location at +8°C. Storage below +21°C or above +28°C may adversely affect performance. Do not return removed material to the container to avoid contamination. After use, clean tools with LOCTITE 7070, acetone, or isopropyl alcohol before the compound hardens.
Product safety
Manufacturer
Henkel Polska Sp. z o.o.
Domaniewska 41
02-672 Warszawa, Poland
Responsible person in the EU
Henkel Polska Sp. z o.o.
Domaniewska 41
02-672 Warszawa, Poland
