Product description

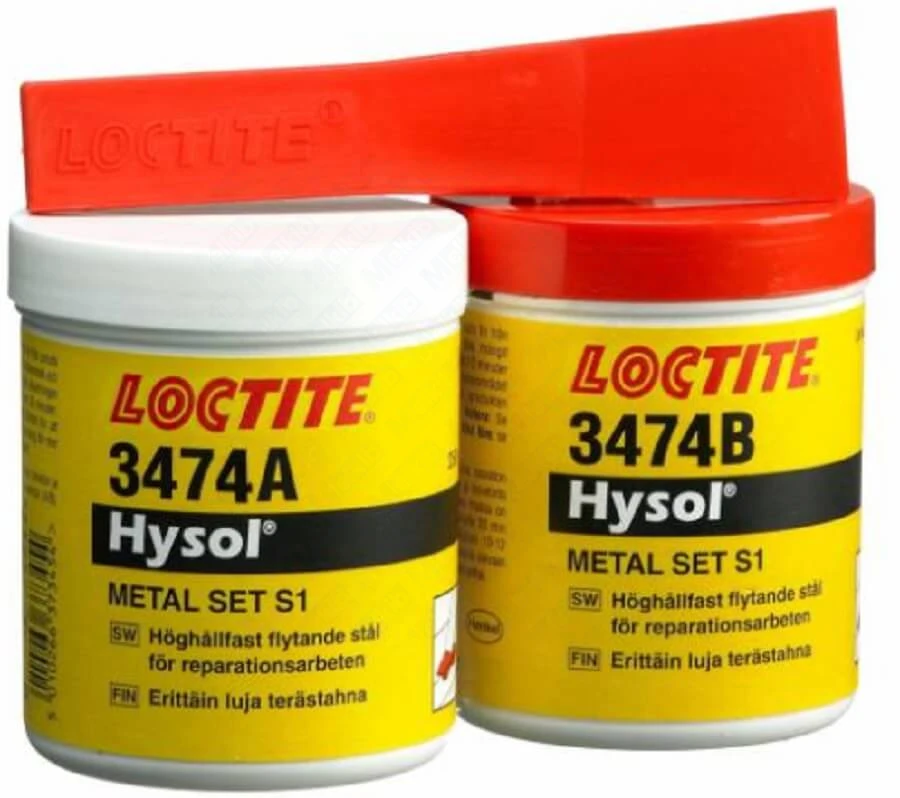

LOCTITE EA 3474 500G – High-Wear-Resistant Epoxy Repair Compound
LOCTITE EA 3474 500G is a two-component, mineral-filled epoxy compound specially designed for industrial repair of worn or damaged machine parts. The product creates a self-lubricating surface layer that reduces frictional wear and protects moving components. Thanks to its easy application and very low shrinkage, the compound is ideal for workshop use and field repairs.
Applications of LOCTITE EA 3474
LOCTITE EA 3474 is suitable for a wide range of industrial and maintenance applications, both in production environments and maintenance operations.
- Repair of worn surfaces on shafts, housings, sleeves, and flanges
- Reconstruction of damaged steel and cast iron parts
- Filling cavities and gaps up to 1 mm
- Sealing leaking pipes and system components
- Manufacturing casting molds and cores
- Protective coatings and sacrificial layers
Main Features and Benefits
- Excellent resistance to abrasion and wear
- Creates a self-lubricating surface
- Non-rusting – corrosion resistant
- Low linear shrinkage (0.1%) – high dimensional accuracy
- 1:1 mix ratio by weight and volume
- Functional strength after 12 hours (at 20°C)
- Can be used as a molding compound or repair coating
Technical Specifications
| Property | Value |
|---|---|
| Product type | Two-component mineral-filled epoxy |
| Form | Gray paste (putty) |
| Mix ratio (by weight / volume) | 1:1 |
| Maximum gap fill | 1 mm |
| Working time (20°C) | 60 minutes |
| Functional strength | 12 hours (20°C) |
| Full cure | 72 hours |
| Shore D hardness | 85 |
| Linear shrinkage | 0.1% |
| Tensile strength | 45 N/mm² |
| Tensile modulus | 10,000 N/mm² |
| Compressive strength | 70 N/mm² |
| Shear strength (steel) | 20 N/mm² |
| Shear strength (aluminum) | 12 N/mm² |
| Operating temperature range | -20°C to +120°C |
| Package size | 500 g |
Storage Recommendations
LOCTITE EA 3474 should be stored in its original, tightly sealed container in a dry place at a temperature between +8°C and +21°C. Avoid storage below +8°C or above +28°C. Do not return used material to the original container to prevent contamination. After use, clean tools with warm soapy water before the adhesive begins to cure. Proper storage ensures optimal product performance.
Product safety
Manufacturer
Henkel Polska Sp. z o.o.
Domaniewska 41
02-672 Warszawa, Poland
Responsible person in the EU
Henkel Polska Sp. z o.o.
Domaniewska 41
02-672 Warszawa, Poland
