Product description

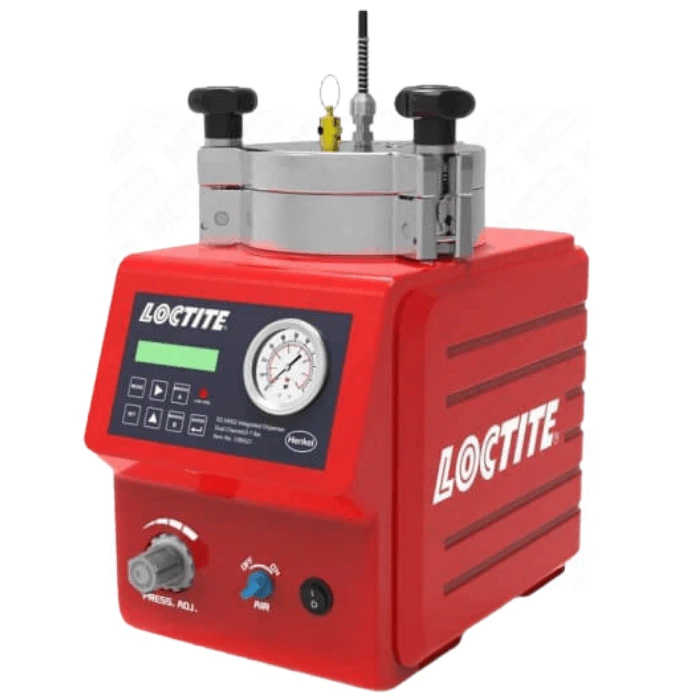

LOCTITE RC40 Integrated Semi-Automatic Dispenser
LOCTITE RC40 is an advanced integrated semi-automatic dispenser that combines a dual-channel dispensing controller and reservoir in one compact unit. Designed for precise and efficient adhesive dispensing, it provides reliability and ease of use in a variety of industrial applications.
Key Advantages
- Dual-channel digital controller – allows independent control of two pneumatic outputs, allowing simultaneous management of two dispensing valves or other pneumatic devices.
- Start-up flexibility – the device can be activated using a foot switch (included), a manual finger switch or an external start signal, adapting to the individual needs of the user.
- Operation modes – the ability to choose between timed and continuous mode, allowing precise dosing or continuous glue applications.
- Compatibility with various packaging – the tank is adapted to containers with a capacity of 50 ml, 250 ml, 500 g, 1 l, 2 kg and 200 g, which increases the versatility of applications.
- Ease of use – intuitive interface with a simple keyboard and LCD display allows for quick and easy setting.
- Safety features – low level sensor alarm informs about the need to replace the glue bottle, ensuring continuity of work.
Application
LOCTITE RC40 is used in many industries where precision and reliability of adhesive dosing are required:
- Automotive industry – precise dosing of adhesives in assembly processes.
- Electronics – application of adhesives in the production of electronic components.
- Medical device production – precise dosing of adhesives in medical equipment assembly processes.
- Industry aviation - the use of adhesives in the production and maintenance of aviation components.
Technical Parameters
| Feature | Value |
|---|---|
| Model | LOCTITE RC40 |
| Type | Integrated semi-automatic dispenser |
| Controller | Dual-channel digital |
| Operation modes | Timed and continuous |
| Compatibility with packages | 50 ml, 250 ml, 500 g, 1 l, 2 kg, 200 g |
| User interface | Keyboard and LCD display |
| Low level alarm | Yes |
| Pressure regulator | 0–7 bar (0–100 psi) |
| Time range | 0.01–99.99 seconds |
| Working pressure | 0–7 bar (0–100 psi) |
Storage Recommendations
- Store in a dry and clean place, free from dust and dirt.
- Avoid exposure to extreme temperatures and direct sunlight.
- Store in original packaging to protect against mechanical damage.
- Regularly check the technical condition of the device and perform maintenance according to the operating instructions.
