Melkib 200 ml 1:1 type-F dual cartridge for 2K adhesives, F-System, for static mixers
Product code: MB-0246
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Secure purchase guarantee
Product description

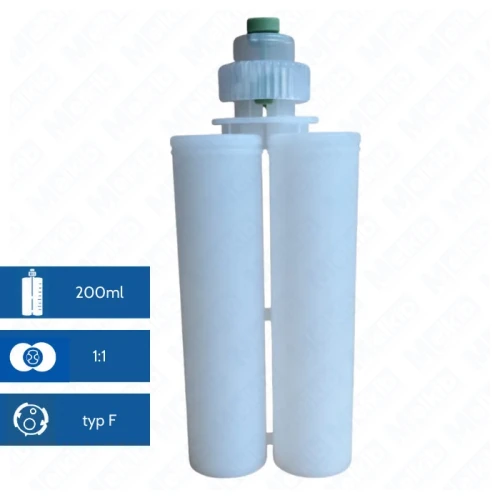

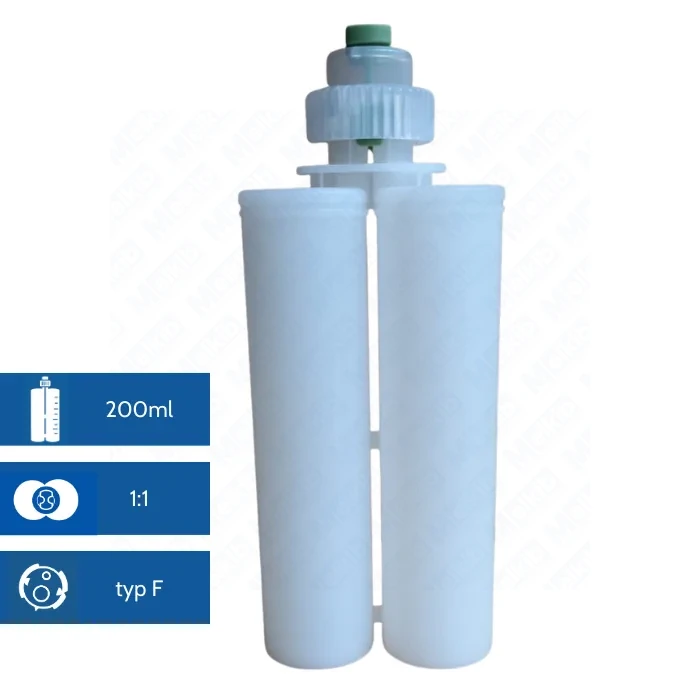

The Melkib 200 ml 1:1 type-F cartridge is an empty dual cartridge designed for filling and dispensing 2K adhesives and compounds. The body is adapted to the F-System interface, allowing convenient use with dedicated static mixers and applicator guns and ensuring repeatable 1:1 mixing. It is a solution for service workshops, manufacturers and laboratories that want to prepare their own two-component adhesive sets.
Advantages and unique features
- 2K adhesive cartridge with a total volume of 200 ml (2 × 100 ml).
- Fixed 1:1 mix ratio – ideal for most epoxy and polyurethane systems.
- Type-F – compatible with mixers and guns in the F-System.
- Chemically resistant plastic body suitable for many resins and structural adhesives.
- Accurate piston guidance for even flow of both components.
- Single-use solution that minimises contamination and mixing errors.
Properties and applications
- Filling 2K adhesives: the cartridge is intended for filling with two-component adhesives, resins and compounds at a 1:1 ratio.
- F-System compatibility: ideal for use with F-System static mixers (for example Quadro) and compatible manual or pneumatic guns.
- Precise dispensing: using a dedicated static mixer ensures proper mixing and a repeatable bead width.
- Production and service: a solution for manufacturers, service workshops and R&D departments that prepare their own formulations or repack products into convenient 2K kits.
- Clean and safe handling: the closed cartridge + mixer system limits user contact with uncured adhesive.
Technical data
| Parameter | Value |
|---|---|
| Total volume | 200 ml |
| Mix ratio | 1:1 |
| Chamber volume | 2 × 100 ml |
| Connection system | type-F, F-System |
| Cartridge type | dual cartridge for two-component adhesives |
| Body material | chemically resistant plastic (PP/PE or equivalent) |
| Number of chambers | 2 |
| Compatible mixers | F-System static mixers for 1:1 ratio |
| Application | filling and dispensing 2K adhesives, resins and compounds |
Storage recommendations
Store empty Melkib 200 ml 1:1 type-F cartridges in their original packaging in a dry, clean place, away from direct sunlight and sources of heat. Protect the cartridges from crushing and contamination of the chamber interiors as well as from damage by sharp objects. Before filling, make sure that the cartridge and pistons are free from dust and other contaminants.
FAQ
1) Which materials can be used with the Melkib 200 ml 1:1 type-F cartridge?
The cartridge is intended for two-component adhesives, resins and compounds mixed at a 1:1 ratio and used in an F-System cartridge + mixer setup.
2) Is the cartridge supplied with a static mixer?
No, the cartridge is supplied as a separate component. A compatible F-System static mixer must be selected and purchased separately.
3) Can the cartridge be reused after the adhesive has been dispensed?
The cartridge is designed for single use; refilling it after complete emptying is not recommended.
4) How do I choose the right mixer for this cartridge?
Select an F-System static mixer for a 1:1 ratio and match its length and outlet diameter to the adhesive viscosity and required bead width.
