Product description

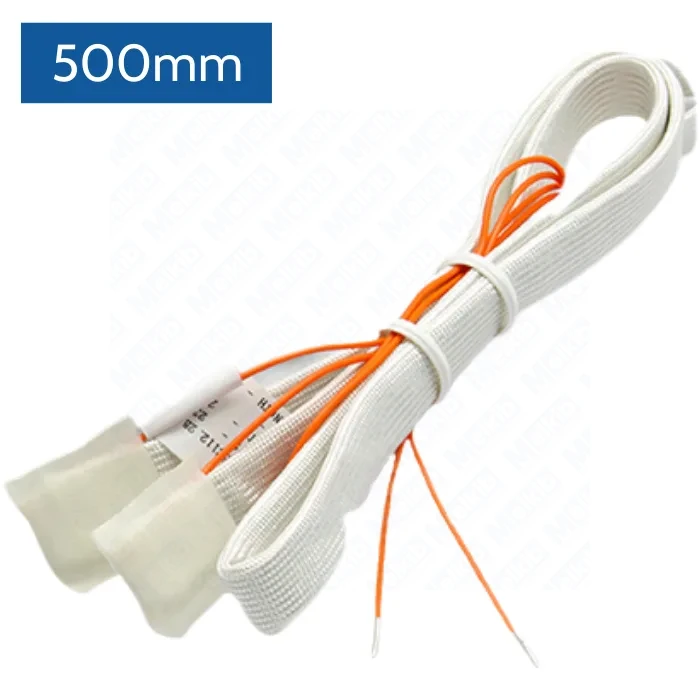

Miotti Heater SCSS027.0500.SB500 is an anti-condensation heater designed to protect the inside of electrical machines against moisture and condensation. It is recommended for motors, generators and alternators operating in demanding conditions (e.g., offshore, marine environments, cranes, well pumps, tropical climate). This version is 500 mm long, rated for 220 V AC and delivers 27 W.
Advantages and unique features
- Low-cost and effective protection against condensation inside electrical equipment.
- Built with 5 separate heating filaments for stable operation and even heating.
- Protective silicone rubber layer and a fiberglass sleeve.
- Suitable for class F and H applications and for machines exposed to vibration or shock.
- Wide operating temperature range: -60°C to +200°C.
Properties and applications
- Application: helps protect windings and internal parts of electrical machines against moisture and condensation in humid environments.
- Installation: applied around the base of the winding heads before impregnation.
- Installation rule: cover at least three quarters of the circumference; if the heater is longer than the head circumference, do not overlap it—leave at least a 5 mm gap to prevent localized overheating.
- Voltage check: verify the heater’s nominal voltage matches the power supply voltage before installation.
Technical parameters
| Parameter | Value |
|---|---|
| Product type | Anti-condensation heater (Anti-Condensation Heater) |
| Model / code | SCSS027.0500.SB500 |
| Heater length | 500 mm |
| Nominal voltage | 220 V AC |
| Power | 27 W (±10%) |
| Lead wire length | 500 mm |
| Suggested motor frame | 112 |
| Temperature range | -60°C to +200°C |
| Dielectric strength | 2.5 kV / 10 s |
| Cables | FEP UL 1330 AWG 20 (200°C, 600 V) |
| Construction | 5 heating filaments; protective silicone rubber layer; fiberglass sleeve; finished with fiberglass tape |
| UL file number | E491086 |
Storage recommendations
The provided document does not specify detailed storage conditions. To maintain quality, store the heater in its original packaging, in a dry place, away from moisture, heat sources and direct UV exposure. Avoid bending or mechanical damage to the lead wires and fiberglass sleeve.
FAQ
1) What is the SCSS027.0500.SB500 anti-condensation heater used for?
It helps reduce condensation and moisture inside electrical machines (e.g., motors, generators and alternators) operating in humid environments.
2) What are the rated voltage and power?
This is the 220 V AC version with 27 W output (±10%).
3) How should the heater be installed if it is longer than the circumference?
It must not overlap. Leave at least a 5 mm gap to prevent localized overheating.
4) What is the operating temperature range?
The heater operates from -60°C to +200°C.
5) Which motor frame size is suggested for this variant?
According to the manufacturer’s table, the suggested motor frame is 112.
Product safety
Manufacturer
Miotti srl
Viale del Lavoro 22
36100 Vicenza, Italy
Responsible person in the EU
Miotti srl
Viale del Lavoro 22
36100 Vicenza, Italy
