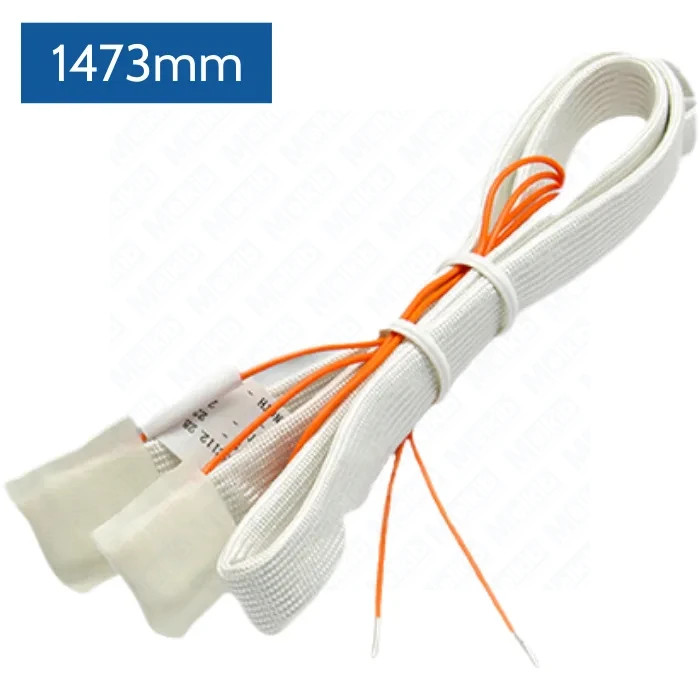

MIOTTI Anti-Condensation Heater SCSS07.1473.LA500, 1473 mm, 115 V AC, 70 W, 500 mm leads, for motors and generators
Product code: MB-0450
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Secure purchase guarantee
Product description
MIOTTI Heater SCSS07.1473.LA500 is an anti-condensation heater designed to help protect electrical machines against moisture and condensation inside the enclosure. The manufacturer recommends it for motors, generators and alternators operating in high-humidity conditions (e.g., offshore, marine environments, cranes, well pumps, tropical climates). This version is 1473 mm long, rated for 115 V AC and delivers 70 W.
Advantages and unique features
- Helps reduce condensation risk and supports winding and insulation protection.
- Built with 5 separate heating filaments for stable operation and even heating.
- Protective silicone rubber layer and a fiberglass sleeve for industrial applications.
- Suitable for class F and H applications and for machines exposed to vibration or shock.
- Wide operating temperature range: -60°C to +200°C.
Properties and applications
- Application: helps reduce moisture and condensation inside rotating electrical machines in demanding environments.
- Installation: applied around the base of the winding heads before impregnation.
- Installation rules: cover at least three quarters of the circumference; if the heater is longer than the head circumference, do not overlap it—leave at least a 5 mm gap to prevent localized overheating.
- Voltage check: verify the heater’s nominal voltage matches the power supply voltage before installation.
Technical parameters
| Parameter | Value |
|---|---|
| Product type | Anti-condensation heater |
| Model / code | SCSS07.1473.LA500 |
| Heater length | 1473 mm |
| Nominal voltage | 115 V AC |
| Power | 70 W (±10%) |
| Lead wire length | 500 mm |
| Suggested motor frame | 280 |
| Operating temperature range | -60°C to +200°C |
| Dielectric strength | 2.5 kV / 10 s |
| Cables | FEP UL 1330 AWG 20 (200°C, 600 V) |
| Construction | 5 heating filaments; protective silicone rubber layer; fiberglass sleeve; finished with fiberglass tape |
| UL file number | E491086 |
Storage recommendations
The provided materials do not specify detailed storage conditions. To maintain product quality, store the heater in its original packaging, in a dry place, away from moisture, heat sources and direct UV exposure. Avoid bending or mechanical damage to the lead wires and fiberglass sleeve.
FAQ
1) What is the SCSS07.1473.LA500 anti-condensation heater used for?
It helps reduce condensation and moisture inside electrical machines (e.g., motors, generators and alternators) operating in humid environments.
2) What are the rated voltage and power?
This is the 115 V AC version with 70 W output (±10%).
3) Can the heater overlap during installation?
No. If the heater is longer than the circumference, leave at least a 5 mm gap to prevent localized overheating.
4) What is the operating temperature range?
From -60°C to +200°C.
5) Which motor frame size is suggested for this variant?
Suggested motor frame size: 280.
