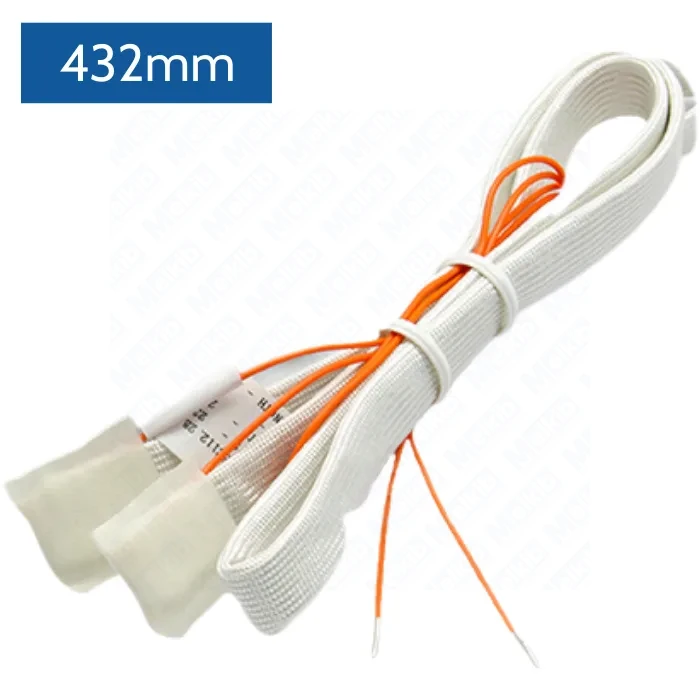

MIOTTI Anti-Condensation Heater SCSS03.0432.LB500, 432 mm, 220 V AC, 30 W, 500 mm leads, for motors and generators
Product code: MB-0462
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Secure purchase guarantee
Product description
MIOTTI Heater SCSS03.0432.LB500 is an anti-condensation heater designed to protect the inside of electrical machines against moisture and condensation. It is used in electric motors, generators and alternators operating in high-humidity conditions (e.g., marine, offshore, tropical environments). This model is 432 mm long, rated for 220 V AC and delivers 30 W.
Advantages and unique features
- Effective prevention of condensation inside electrical equipment (helps protect windings and insulation).
- Construction based on 5 separate heating filaments, welded at the terminations.
- Protective silicone rubber layer plus a fiberglass sleeve (robust for operating conditions).
- Suitable for class F and H applications and for machines exposed to vibration or shock.
- Wide operating temperature range: from -60°C to +200°C.
Properties and applications
- Anti-condensation protection: for equipment running in humid environments (e.g., marine equipment, cranes, well pumps, tropical conditions).
- Winding installation: applied around the base of the winding heads before impregnation.
- Installation rules: cover at least three quarters of the circumference; if the heater is longer than the head circumference, do not overlap—leave at least a 5 mm gap to prevent localized overheating.
- Voltage selection: verify the heater’s rated voltage matches the power supply voltage.
Technical parameters
| Parameter | Value |
|---|---|
| Product type | Anti-condensation heater (Anti-Condensation Heater) |
| Model / code | SCSS03.0432.LB500 |
| Heater length | 432 mm |
| Nominal voltage | 220 V AC |
| Power | 30 W (±10%) |
| Lead wire length | 500 mm |
| Suggested motor frame | 100 (L) – long stator |
| Temperature range | -60°C to +200°C |
| Dielectric strength | 2.5 kV / 10 s |
| Cables | FEP UL 1330 AWG 20 (200°C, 600 V) |
| Construction | 5 heating filaments; protective silicone rubber layer; fiberglass sleeve; finished with fiberglass tape |
| UL file number | E491086 |
Storage recommendations
The provided document does not specify detailed storage conditions. To maintain quality, store the heater in its original packaging, in a dry place, away from moisture, heat sources and direct UV exposure. Avoid bending or mechanical damage to the lead wires and fiberglass sleeve.
FAQ
1) What is the SCSS03.0432.LB500 anti-condensation heater used for?
It helps reduce condensation inside electrical machines (e.g., motors, generators, alternators) operating in humid environments.
2) What are the rated voltage and power?
This version is rated for 220 V AC and 30 W (±10%).
3) Where is the heater installed in the motor?
According to the manufacturer’s guidance, it is applied around the base of the winding heads before impregnation.
4) Can the heater overlap if it is longer than the circumference?
No. If it is longer than the circumference, do not overlap it—leave at least a 5 mm gap to prevent localized overheating.
5) What are the temperature range and dielectric strength?
Temperature range: -60°C to +200°C; dielectric strength: 2.5 kV for 10 seconds.
