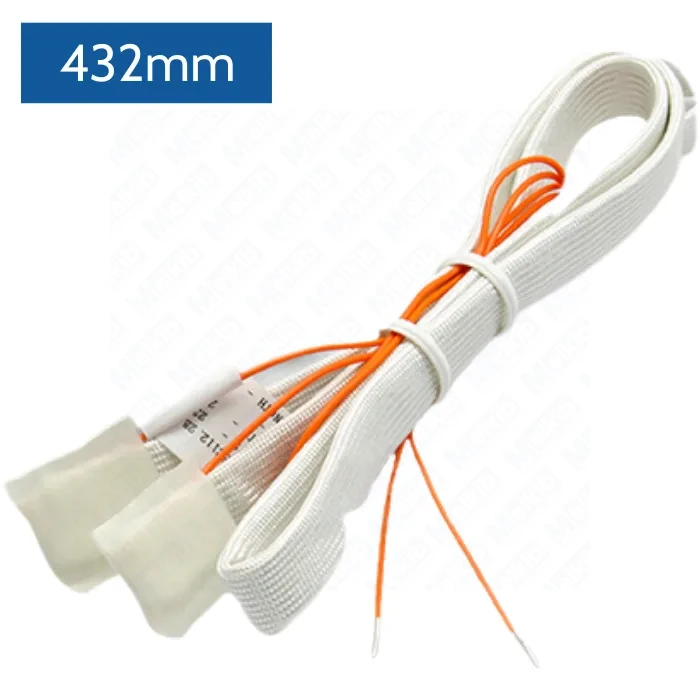

MIOTTI SCSS025.0432.SB500 anti-condensation heater 432 mm, 220 V AC, 25 W, 500 mm leads, condensation protection, -60°C to +200°C
Product code: MB-0461
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Secure purchase guarantee
Product description
The MIOTTI SCSS025.0432.SB500 anti-condensation heater is designed to help reduce moisture condensation inside rotating electrical equipment. It is used in motors, generators and alternators operating in humid conditions (e.g., marine and offshore applications). The SCSS025.0432.SB500 version is 432 mm long, rated for 220 V AC and delivers 25 W.
Advantages and unique features
- Helps reduce condensation and protect windings in electrical machines
- Design suitable for vibration and shock
- Operating temperature range: -60°C to +200°C
- Dielectric strength: 2.5 kV / 10 s
- FEP UL 1330 AWG 20 leads (200°C, 600 V)
- 500 mm lead length for convenient routing
Properties and applications
- Application: reducing condensation in motors, generators and alternators operating in humid environments
- Installation: apply around the base of winding heads before impregnation; cover at least three quarters of the circumference
- Important: if the heater is longer than the circumference, do not overlap; leave at least a 5 mm gap to avoid localized overheating
- Selection safety: verify that the heater nominal voltage matches the power supply voltage
- Suggested motor frame: 100
Technical parameters
| Parameter | Value |
|---|---|
| Product code | SCSS025.0432.SB500 |
| Length (L) | 432 mm |
| Nominal voltage | 220 V AC |
| Power | 25 W (±10%) |
| Lead wire length | 500 mm |
| Temperature range | -60°C to +200°C |
| Dielectric strength | 2.5 kV / 10 s |
| Cables | FEP UL 1330 AWG 20 (200°C, 600 V) |
| UL file number | E491086 |
| Suggested motor frame | 100 |
Storage recommendations
Store in a dry place, in the original packaging, away from direct sunlight and heat sources. Protect the leads and terminations from crushing and mechanical damage to maintain electrical performance and safe installation.
FAQ
1) What is SCSS025.0432.SB500 used for?
It helps reduce moisture condensation inside electrical machines operating in humid environments.
2) What are the electrical ratings?
This version is rated for 220 V AC and 25 W.
3) Can the heater be overlapped during installation?
No. Do not overlap; keep at least a 5 mm gap to prevent localized overheating.
4) What is the operating temperature range?
-60°C to +200°C.
5) What motor frame is suggested?
Suggested motor frame: 100.
