Molykote 4 100g insulation mixture
Description

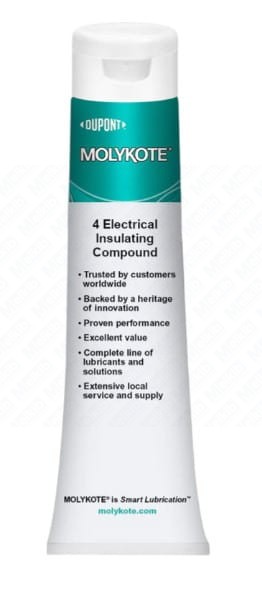

Molykote 4 100g
Molykote 4 is a high-quality silicone insulating agent with excellent dielectric and insulating properties. It is a semi-liquid preparation that works perfectly in demanding conditions, providing long-term protection and stability over a wide temperature range. Molykote 4 is particularly recommended for use in the automotive, aerospace and other sectors requiring reliable electrical insulation.
Applications
- Sealing and lubrication of cable joints, battery terminals, rubber seals and O-rings made of elastomers and polymers
- Insulation and protection of electrical connectors, disconnectable connectors and terminals
- Protection against moisture and water in ignition systems and other industrial applications
Properties
- High dielectric strength
- Excellent electrical insulation
- Resistance to moisture and water
- Low volatility and evaporation
- Good oxidation stability
- Wide operating temperature range: -54°C to +200°C
- Certifications: NSF 51, NSF 61, 21 CFR 175.30 compliant, Kosher Pareve, Halal
Technical parameters
Parameter | Value |
---|---|
Color | Light gray to transparent white |
Penetration (not performed, ASTM D217) | 200-250 mm/10 |
Penetration (performed 60 times, ASTM D217) | 310 max mm/10 |
Density | 0.235 W/mK |
Dielectric Strength | 338 volts/mil |
Volume Resistance @ 23°C | 4.62 x 10^13 ohm-cm |
Volume Resistance @ 177°C | 4.11 x 10^13 ohm-cm |
Thermal Stability | 6 months at 38°C |
Working temperature | -54°C to +200°C |
Storage and use recommendations
- Store in original, tightly closed containers
- Optimum storage temperature: 10°C to 30°C
- Shelf life is 60 months from the date of production
- Before use, carefully read the Safety Data Sheet (MSDS)
- Do not use on surfaces intended for painting or other coatings
Safety
Before use, read the Safety Data Sheet (MSDS). This card contains detailed information on the safe use, storage and disposal of the product and procedures in the event of an accident. The product should be used in accordance with the manufacturer's recommendations and work safety regulations.
