Rotary hand pump for 30L barrels
Description

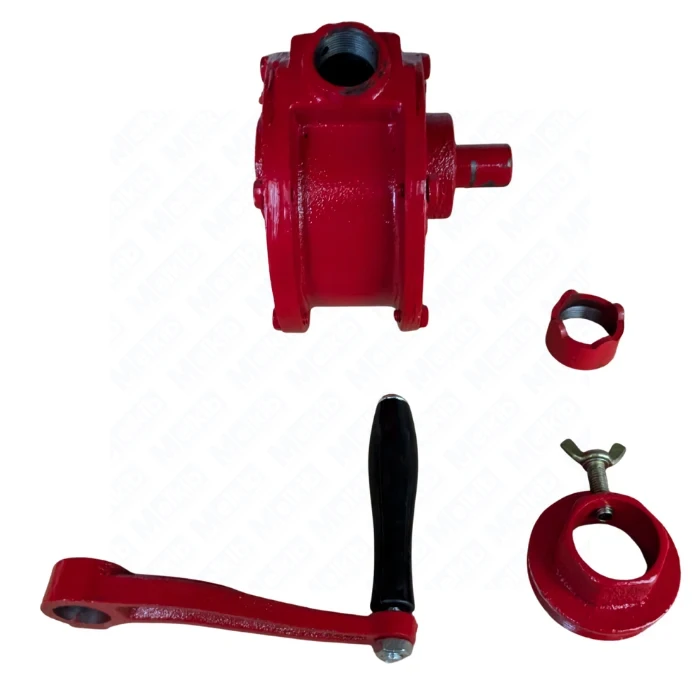

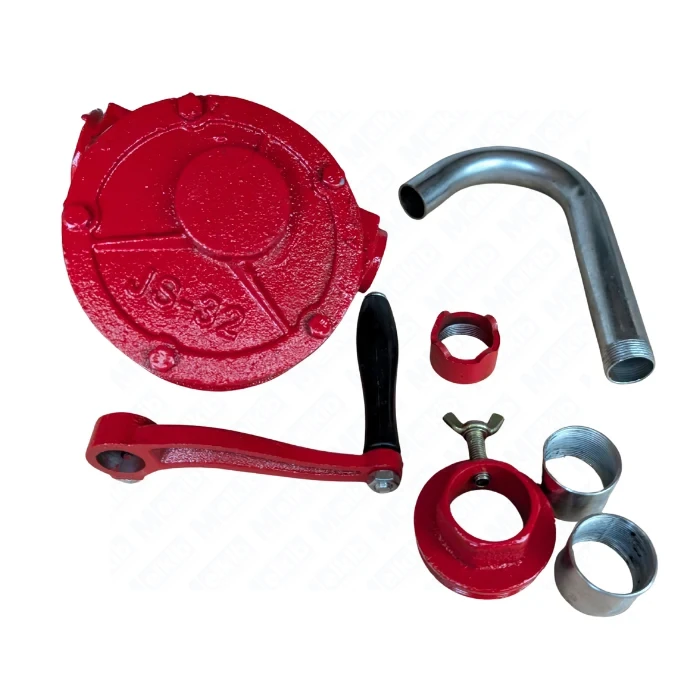

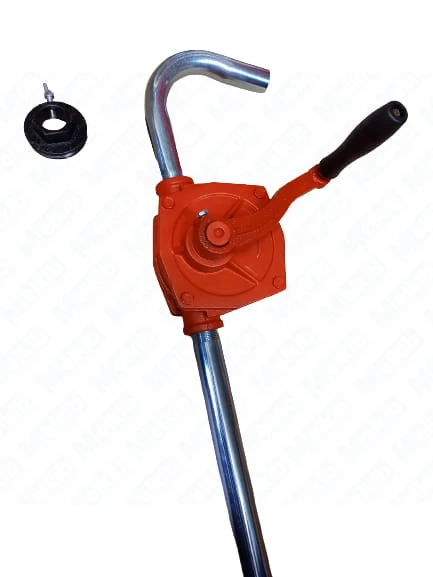

V10-3R manual drum pump is a universal rotary crank pump delivering up to 30 L/min for quick transfer of oils from drums and tanks. It’s ideal for small farms and workshops where simple, reliable operation is key.
Benefits and key features
- Crank handle drive – controlled, even dosing
- High flow up to 30 L/min – fast decanting
- Easy drum mounting – mobile, power-free solution
- Compatible with a wide range of oils up to SAE 90
- Low running costs – few service parts, no electricity
Properties and applications
- Recommended media: diesel fuel, engine oil, heating oil, kerosene and other oils up to SAE 90.
- Typical uses: farms, automotive workshops, oil stores and servicing stations.

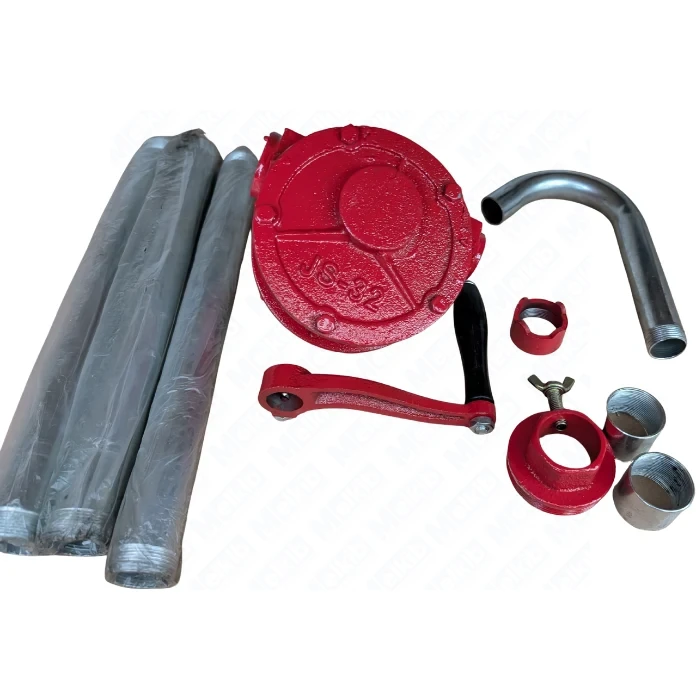

- Operation: prime the pump with oil before first use; seal suction joints with PTFE tape or hemp/loose fibre.
- Limitations: do not use with water or water-based fluids, antifreeze, solvents, acids, gasoline/petrol, turpentine, etc.
Technical parameters
| Parameter | Value |
|---|---|
| Pump type | Manual, rotary (crank) |
| Nominal flow rate | up to 30 L/min |
| Media viscosity range | oils up to SAE 90 |
| Installation notes | prime with oil; seal suction joints with PTFE/hemp |
| Applications | pumping oils from drums/tanks in farms and workshops |
| Not suitable for | water/water-based fluids, antifreeze, solvents, acids, petrol, turpentine |
Storage recommendations
After use, flush with a compatible oil and cap the ports. Store dry, away from ignition sources. Do not leave the pump filled with aggressive media.
FAQ
1) Which liquids can V10-3R handle?
Diesel, engine/heating oils, kerosene and other oils up to SAE 90.
2) Can it pump water or petrol?
No. It is not for water, petrol/gasoline, acids, solvents or water-based fluids.
3) How to prepare for first use?
Prime with oil and seal the suction joints with PTFE tape or hemp.
4) Best use cases?
Small farms and workshops for daily oil transfer.
5) Maintenance?
Flush with compatible oil, dry and store properly.
