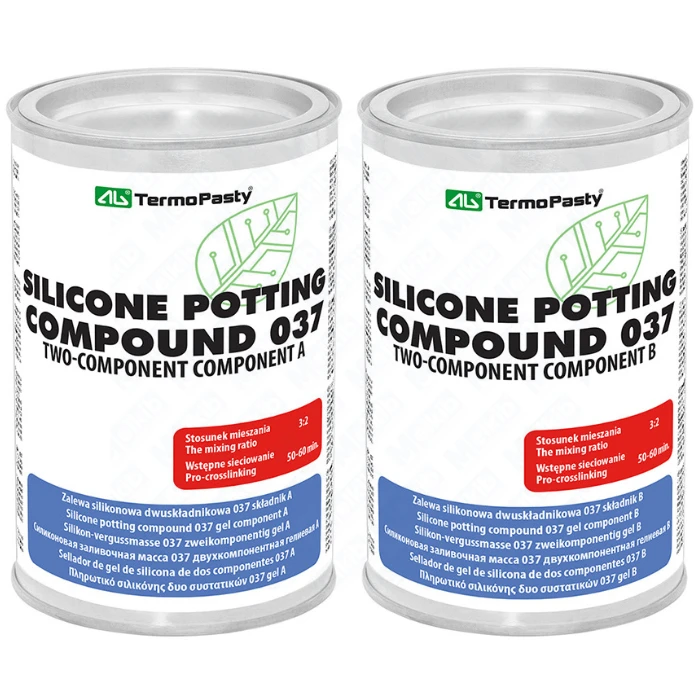

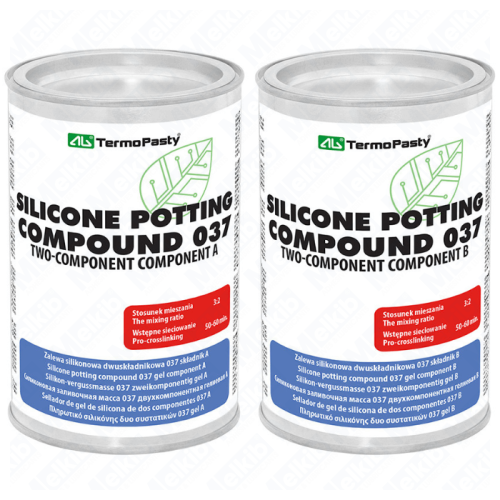

Silicone filling 037 100g, 1kg two-component encapsulation, electronic system control, transparent
Product code: AGT-315q
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Select product variant:
Individual variants may differ in price
Secure purchase guarantee
Product description
037 silicone filler is a solution in the process of encapsulation and insulation of electronic and telecommunications systems. It is a two-component, transparent cross-linking resin in an addition system, which has protective and protective properties for electronic components.
Properties:
- Enables accurate inspection of components during application.
- High electrical insulation after curing, with a hardness of 12 Shore [A].
- High volume resistivity (1.8×10^14 Ωxcm), dielectric strength (11.0 kV/mm), resistance to creeping currents (600V).
- Ideal for LED applications and other systems exposed to UV light.
- Perfect for automotive electronics, motion control, LED applications and more.
Application:
- Encapsulation and insulation of electronic and telecommunications systems.
- Protection of LED modules and other components exposed to UV radiation.
- Applications in a variety of industries, including automotive and telecommunications.
Parameters:
|
Product technical data |
||
|---|---|---|
|
Parameters |
A |
B |
|
Appearance |
low viscosity liquid |
low viscosity liquid |
|
Color |
transparent |
transparent |
|
Specific gravity at 25°C |
approx.0.98 g/cm3 |
approx.0.98 g/cm3 |
|
Viscosity at 25°C |
2500+/- 500 cP |
2500+/- 500 cP |
|
Properties of the mixture after mixing the ingredients 3:2 |
|
|---|---|
|
Viscosity at 25°C |
2500+/- 500 cP |
|
Shelf life at 25°C |
ok. 60 min. |
|
Geling time at 25°C |
max. 24 hours |
|
Operating temperature |
from -50°C to 180°C |
|
Consistency after cross-linking |
solid (transparent rubber) |
