Teroson Powerline II, high-pressure air gun, ergonomic 310 ml cartridge applicator, professional sealant dosing system, precise, 3:1 pressure ratio

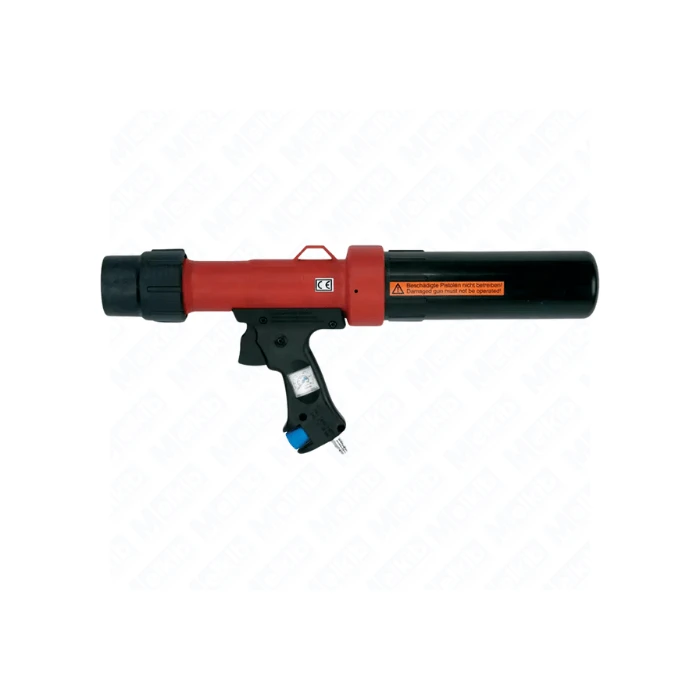

Teroson PowerLine II Pneumatic Gun 960304 is an advanced, high-pressure device for applying sealing and protective materials. It is an exceptionally efficient tool for precise dosing of single- and two-component sealing compounds - it allows the application of continuous sealing beads and wide protective coatings of various thicknesses. The gun was designed for professional applications where reliability and accuracy are required, e.g. in bodywork and paint shops for bodywork repairs or in industry for sealing joints and protecting surfaces. Thanks to the ergonomic handle, the device lies securely in the hand, which increases work comfort and allows for longer use without fatigue. The built-in pressure gauge (i.e. integrated pressure indicator) allows for ongoing control and precise regulation of the application pressure, providing full control over the material dosage.

Application

• Application of sealing beads – ideal for applying continuous seams/sealing beads on the joints of elements (e.g. bodywork welds, construction gaps), ensuring tightness and factory appearance of welds.
• Application of wide protective coatings – allows for the distribution of extensive protective layers, such as anti-corrosion, soundproofing or stone impact protection coatings (so-called lamb), while maintaining an even thickness over the entire surface.
• Professional applications – works well in car workshops, industrial assembly lines and wherever fast and even application of thick sealants or masses is required gluing and sealing.

Key features and advantages

• High dispensing pressure: The pressure ratio of 3:1 means that the output pressure is three times higher than the supply pressure. This allows you to achieve up to 24 bar of working pressure with an air supply of 8 bar, which guarantees effective extrusion of even very high-viscosity materials.
• Smooth and precise dispensing: The advanced piston mechanism ensures a constant, even flow of material. The gun allows you to apply low and high-viscosity masses without interrupting the stream - from thinner sealants to thick bodywork putties - always with the same accuracy and control over the amount of material applied.
• Ergonomic design: The well-thought-out shape and balance of the gun and the comfortable, contoured handle minimize hand fatigue during work. The non-slip handle provides a secure grip, which translates into greater application precision and safety of use.
• Built-in pressure gauge: The integrated pressure gauge (pressure indicator) allows for real-time pressure reading and its adjustment using the built-in valve. This allows the user to adjust the dispensing pressure to the requirements of a given application, while protecting the cartridge from excessive load.
• Cartridge protection: The Teroson PowerLine II gun is equipped with a patented double piston mechanism with a cartridge burst protection function. Even when working at the highest pressures, the device prevents damage to the packaging, which increases work safety and reduces material loss.
• Standard cartridges and sachets: The device supports standard 310 ml (11 oz) cartridges. Additionally, it is adapted to squeeze materials from foil packages (sachets) with a capacity of up to 400 ml, which makes it a versatile tool compatible with various forms of sealant and adhesive packaging.
• Durability in difficult conditions: Solid construction and high-quality materials (including a body reinforced with glass fiber) make the gun resistant to intensive use. It is designed to work even in unfavorable conditions - it maintains full functionality at low ambient temperatures or cooled cartridges, as well as in a dusty environment (after appropriate preparation of the supply air).

Technical parameters

Compatible accessories and spare parts

Additional accessories are available for the Teroson PowerLine II gun, which expand its capabilities and make work easier in various applications:

• Application nozzles: Different types of nozzles allow you to adjust the flow of extruded material to your needs. Examples of accessories include the Teroson ET Widestr Nozzle (provides a wide stream for applying coatings over a large surface area), the Teroson ET Flatstr Nozzle (allows you to obtain a flat stream of mass, useful for sealing long joints) and the Teroson ET Door Edge Nozzle (specially shaped for filling gaps in overlaps and edges, e.g. vehicle doors).
• Cartridge heater: The optional Teroson ET CR HeatingBox heater allows you to heat the cartridge with the material before application. This is especially useful at low ambient temperatures - heating the sealant reduces its viscosity, making it easier to squeeze out and speeding up the work.

The manufacturer also provides access to spare parts, which allows you to keep the equipment in perfect condition for a long time. Among other things, the following are available: consumables such as seals and o-rings, as well as replaceable parts: cartridge mounting nut, piston with seals, pressure gauge with pressure regulator or inlet air filter. Thanks to the possibility of replacing worn elements, the gun can be serviced and maintain full efficiency even with intensive use.

Storage recommendations

To ensure long-term reliability of the device, it is necessary to follow several recommendations regarding the storage and maintenance of the gun:

• After finishing work, always release the pressure in the gun - disconnect the compressed air supply and make sure that the piston does not exert pressure on the cartridge. This will prevent uncontrolled leakage of the mass and relieve the device components.
• Remove the cartridge or sachet from the cylinder if you will not be using the gun for a longer period of time. Leaving the packaging with the curing sealant open may result in the nozzle being blocked or the inside of the cylinder becoming dirty.
• Clean the device of any remaining material and dirt. Pay special attention to the thread of the cartridge cap and the inside of the cylinder - the absence of dirt will ensure the correct operation of the venting mechanism and smooth movement of the piston.
• Store the gun in a dry, clean place, away from extreme temperatures and moisture. It is best to place it horizontally or hanging to prevent the elements from deforming under their own weight. If possible, use the original packaging or protective case.

Following the above instructions will allow you to maintain the full functionality of the Teroson PowerLine II for a long time and ensure safety and hygiene during the next use.
