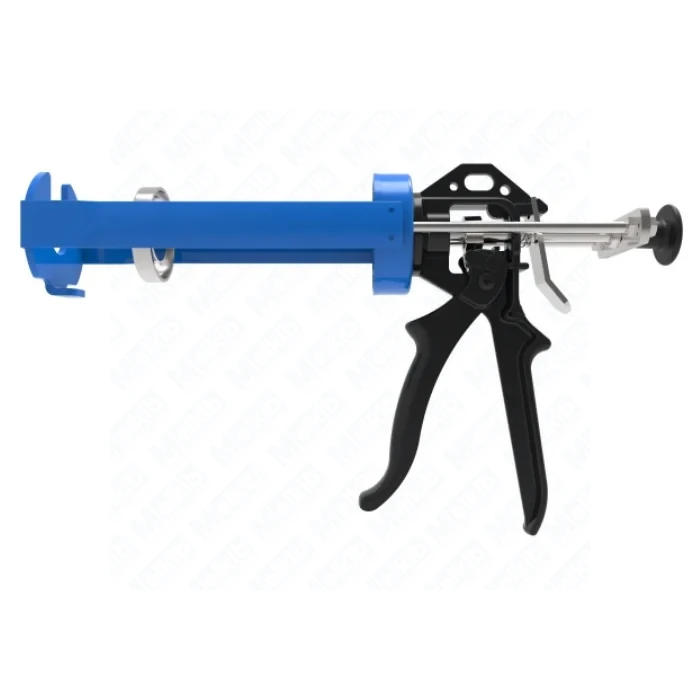

CCM 380 COAX 10:1 coaxial manual gun, 380 ml cartridges, 18:1 mechanical advantage, epoxy-coated steel/aluminum frame
Product code: DM2C 380-10-R18-001
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Secure purchase guarantee
Product description
The CCM 380 COAX is a 380 ml 10:1 coaxial manual gun with an 18:1 mechanical advantage, delivering 3.5 kN thrust for precise dispensing of medium/high-viscosity materials.
Advantages and Unique Features
- Coaxial, compact steel frame reduces user fatigue
- Epoxy-coated aluminum handle for lightness and durability
- Switchable Pressure Relief Device (PRD) prevents drips
- Mechanical advantage 18:1 produces up to 3.5 kN thrust
Properties and Applications
- 18:1 mechanical ratio: optimized for 380 ml 10:1 cartridges
- Maximum thrust 3.5 kN: for epoxy resins and sealants
- Weight 0.8–0.9 kg: comfortable for extended use
- Frame length 233–271 mm: adaptable to cartridge sizes
- Applications: bonding, sealing, structural repairs
Technical Specifications
| Specification | Value |
|---|---|
| Weight | 0.8–0.9 kg |
| Frame length | 233–271 mm |
| Maximum thrust | 3.5 kN |
| PRD | yes (switchable) |
| Handle material | epoxy-coated aluminum |
| Frame material | epoxy-coated steel |
| Approvals | REACH |
| Cartridge capacity | 380 ml (10:1) |
| Mechanical ratio | 18:1 |
| Viscosity | medium/high |
| Color | black/blue |
| Nozzle dimension | Ø25 mm |
Storage Recommendations
Store in a dry place at 5 °C–25 °C, away from heat sources and direct sunlight.
