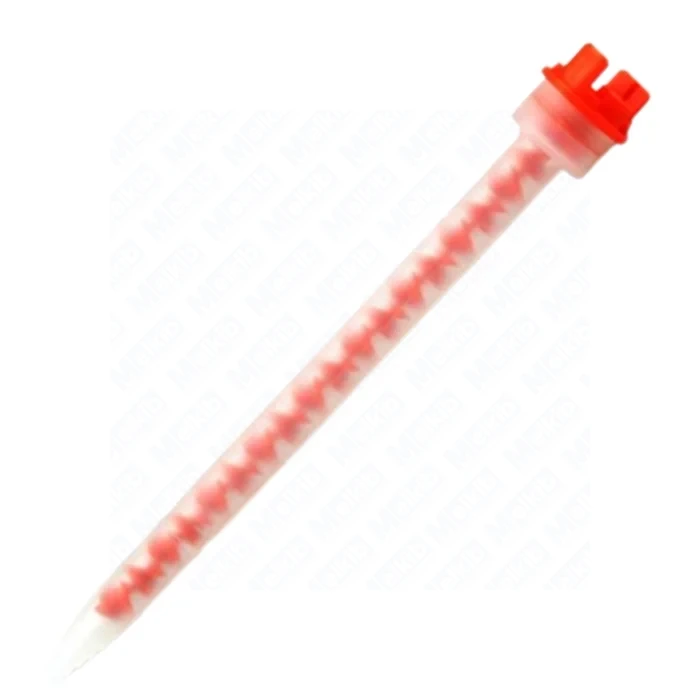

Medmix Orange Static Mixer MFHX 08-18T F-System, 18 elements, 8 mm, 10:1/4:1 for 2K adhesives and sealants
Product code: MFHX 08-18T
Leave feedback on the product
Shipping cost for the selected product
The shipping cost applies to this product (in the selected variant - if applicable). It may change after adding other products to the cart.
Related products
Secure purchase guarantee
Product description
The Medmix Orange Static Mixer MFHX 08-18T is a mixing nozzle for two-component adhesives and sealants at 10:1 and 4:1 mix ratios. With its F-System Mixpac connection, it works with matching 2K cartridges, providing secure attachment and thorough mixing of the components before application as a uniform bead.
Benefits and unique features
- Designed for the F-System and 10:1 / 4:1 mix ratios used by many specialised 2K adhesives.
- 18 mixing elements deliver a high level of mix homogeneity.
- Stepped channel geometry stabilises flow and helps to deaerate the material.
- 8 mm diameter allows application of a solid, even adhesive bead.
- 187 mm overall length provides a long mixing path, even for more viscous products.
- Orange body makes it easy to identify the mixer intended for high mix ratios.
Properties and applications
- Mixing 2K adhesives 10:1 and 4:1: the MFHX 08-18T design is optimised for adhesives with a high base component content, commonly used in structural applications.
- Bead application: the mixer is intended for continuous bead application of adhesive or sealant along long joints.
- F-System Mixpac connection: compatibility with F-System cartridges enables quick installation without additional adapters and ensures a tight, reliable system.
- Stepped channel geometry: the stepped layout improves mixing efficiency while maintaining stable flow and reducing the risk of air bubbles.
- Professional use: ideal for bonding and sealing metal, composite and plastic parts in industrial, service and assembly environments.
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | medmix Switzerland AG |
| Cartridge system | F-System |
| Mixer model | MFHX 08-18T |
| Application | 2K adhesives and sealants – Bead Application |
| Number of mixing elements | 18 |
| Mix ratios | 10:1, 4:1 |
| Channel geometry | Stepped |
| Outer diameter | 8 mm |
| Overall length | 187 mm |
| Cartridge connection type | F-System Mixpac |
| Colour | Orange |
| Reference code | ITR1036 |
Storage recommendations
Store Medmix static mixers in their original packaging in a dry, clean environment, away from dust, direct sunlight and extreme temperatures. Avoid contact with solvents and aggressive chemicals that could weaken the plastic. After use, once adhesive has cured inside the mixing elements, treat the mixer as single-use and replace it with a new one.
FAQ
1) Which adhesives is the Medmix Orange Static Mixer MFHX 08-18T intended for?
The mixer is designed for two-component adhesives and sealants at 10:1 and 4:1 mix ratios, commonly used in structural and assembly applications.
2) Which cartridges is this model compatible with?
The MFHX 08-18T works with 2K cartridges in the F-System featuring the appropriate Mixpac connection.
3) Can the mixer be reused?
Static mixers are generally single-use; after the adhesive has cured inside the mixing elements, a new mixer should be installed to maintain mixing quality.
4) What applications is this model best suited for?
The MFHX 08-18T is ideal for bead applications such as bonding panels, profiles and structural components and sealing long joints in production processes.
