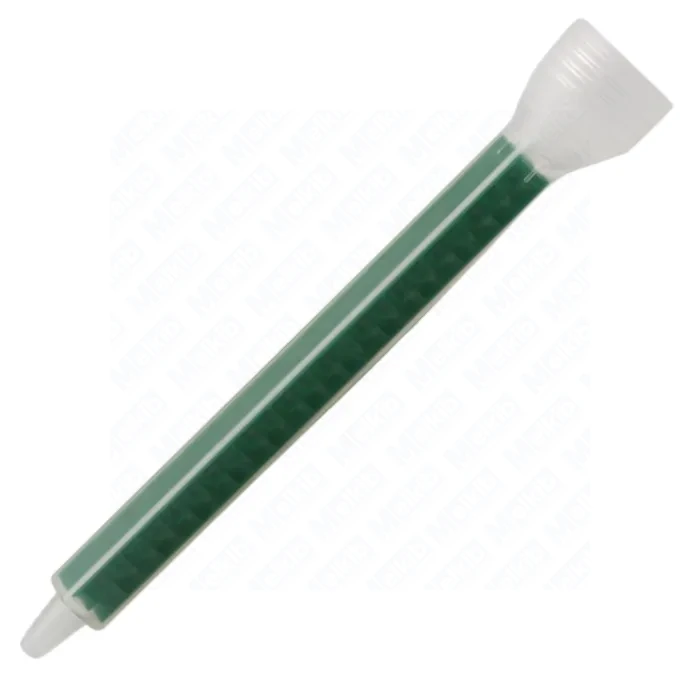

Medmix MGQ 08-24T green Quadro static mixer for 2K adhesives 380 ml, threaded connection 1:1 and 2:1, 24 elements, 8 mm, 161 mm

The Medmix MGQ 08-24T is a green Quadro static mixer for 2K adhesives in 380 ml cartridges with a threaded connection. With 24 mixing elements, an 8 mm outlet and an overall length of approx. 161 mm, it ensures uniform mixing of the components and a stable adhesive bead at 1:1 and 2:1 mix ratios. It is an efficient solution for professional dispensing of adhesives and sealants in many industrial applications.

Advantages and unique features

• Designed for 380 ml 2K cartridges with threaded connection – compatible with many dispensing systems.
• Supports two mix ratios, 1:1 and 2:1, in a single nozzle type.
• Twenty-four mixing elements provide very good and repeatable blending of components A and B.
• An 8 mm outlet diameter delivers a stable bead for filling joints, gaps and structural connections.
• Stepped tip allows trimming of the nozzle to achieve the required bead width.
• Single-use static mixer – no cleaning required and a reduced risk of adhesive contamination.

Properties and applications

• Mixing 2K adhesives and sealants: the mixer provides proper combination of components in 1:1 and 2:1 cartridges, enabling the adhesive to reach its specified strength.
• Bead application: optimised for even bead dispensing along edges, profiles, panels and other structural parts.
• Threaded connection: the mixer is screwed directly onto the threaded cartridge, ensuring a tight and secure interface with the dispensing system.
• Working length approx. 161 mm: offers sufficient residence time for mixing while maintaining a convenient nozzle length for the operator.
• Typical industries: automotive, machinery, composite part production, window and door manufacturing and metal structure assembly.

Technical data

Storage recommendations

Store Medmix MGQ 08-24T mixers in their original packaging in a dry, clean place, away from direct sunlight and heat sources. Protect the nozzles from crushing and damage to the threaded interface. Keep out of the reach of children and use only with compatible 2K cartridges according to the adhesive manufacturer’s instructions.

FAQ

1) Which cartridges are compatible with the Medmix MGQ 08-24T mixer?
The nozzle is intended for 380 ml two-component cartridges with a threaded connection, operating at 1:1 or 2:1 mix ratios.

2) Can the MGQ 08-24T mixer be reused?
No, it is a single-use mixer. Once the adhesive has cured inside the mixing channel, a new nozzle must be used to maintain mixing quality and cleanliness.

3) How can I adjust the outlet diameter to the application?
The standard outlet is approx. 8 mm, and thanks to the stepped tip the nozzle can be trimmed to adapt the bead width to the specific task.

4) In which industries is MGQ 08-24T most commonly used?
It is used for bonding metal, plastic and composite parts in automotive, machinery, composite structure production and in assembly and maintenance of bonded joints.
