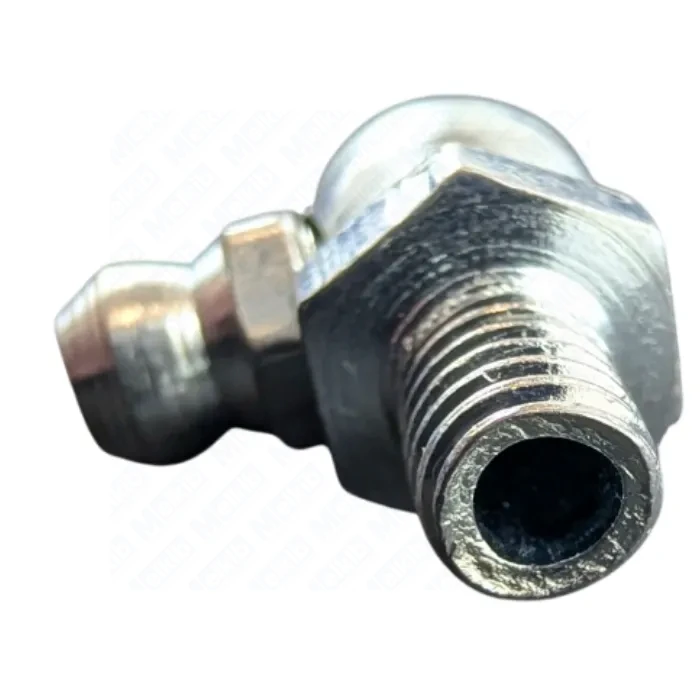

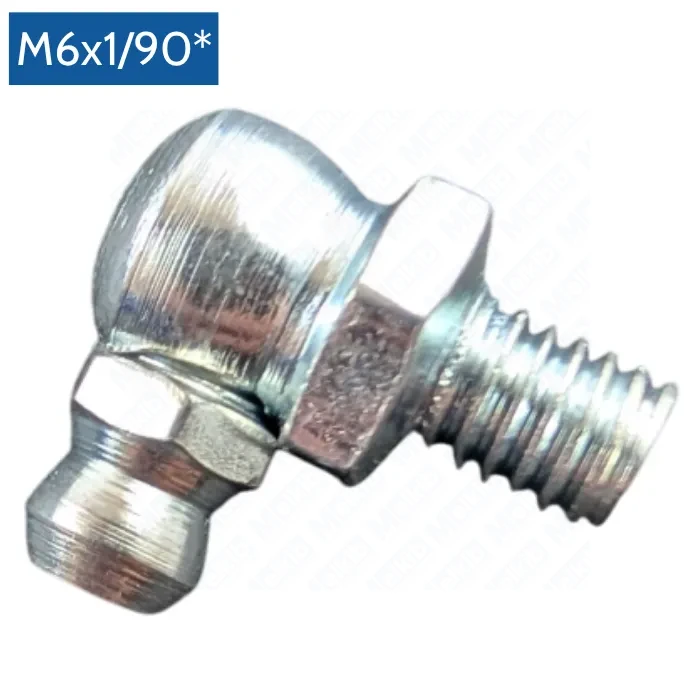

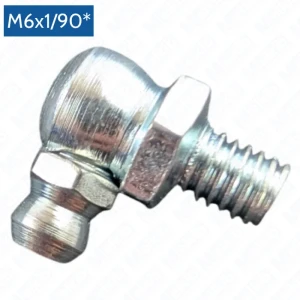

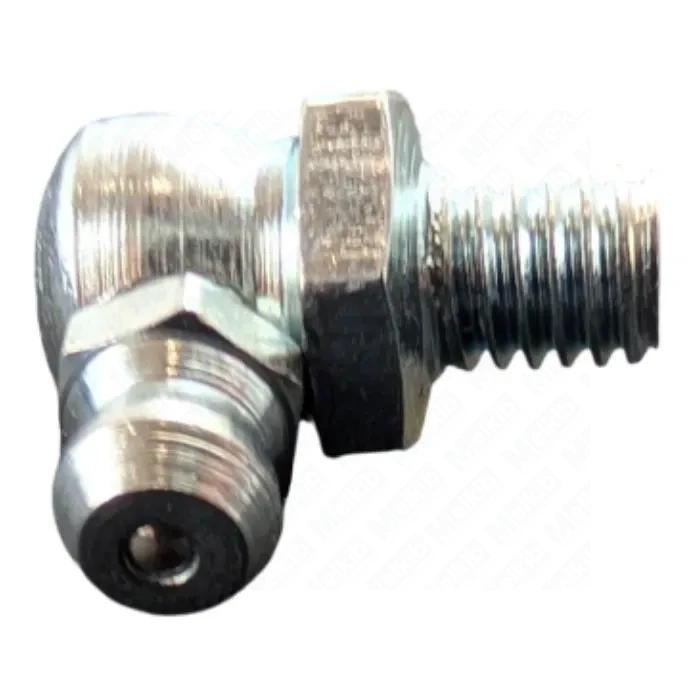

Melkib MB-0270 90° M6×1 zinc-plated angle grease fitting

Melkib MB-0270 90° M6×1 angle grease fitting for small lubrication points

Melkib MB-0270 is an angle grease fitting with an M6×1 thread for point application of grease to bearings, pins, joints, guides and other components equipped with a small threaded lubrication port.

The 90° connection allows the grease gun to be attached from the side. This is useful in compact assemblies where a guard, housing or adjacent component is positioned above the threaded port.

Applications of the Melkib MB-0270

The model is intended for equipment and mechanisms fitted with an M6×1 lubrication point. It can be used during periodic maintenance of machines, vehicles, workshop equipment and other mechanical assemblies.

Material and construction

The fitting is made of free-cutting steel and has a zinc-plated surface. It is not made of stainless steel.

The model is compatible with manual and pneumatic grease guns equipped with a suitable jaw-type coupler.

When to choose the MB-0270

Choose this version where an M6×1 thread and side access to the lubrication point are required. Due to the small thread size, carefully verify both its diameter and pitch before installation.

Installation considerations

Clean the threaded port and begin installation by hand. Keep the fitting aligned with the port axis. If it binds on the first threads, do not apply additional force — check the thread specification again.

Technical data of Melkib MB-0270

Storage

Store in a clean and dry place. Protect the fitting from moisture, dust and metal particles. Prevent contamination of the grease passage and clean the connection head before installation and each lubrication operation.

FAQ

Does the MB-0270 fit every M6 thread?

No. This model is intended for an M6×1 port. Both the nominal diameter and the thread pitch must be confirmed.

What is the purpose of the 90° construction?

It allows the grease gun to be connected from the side where access to a straight fitting is restricted.

Can high force be used during installation?

No. Begin threading the fitting by hand. Excessive force or incorrect alignment may damage the thread or the threaded port.

Can the MB-0270 be used with a pneumatic grease gun?

Yes. It is compatible with manual and pneumatic grease guns equipped with a suitable coupler.
